RF Plasma Products, Inc.

RF Plasma Products LES-300 Laser Endpoint System 300 Controller 120VAC For Parts

(No reviews yet) Write a Review
SKU:
36660
MPN:
LES-300 Controller
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

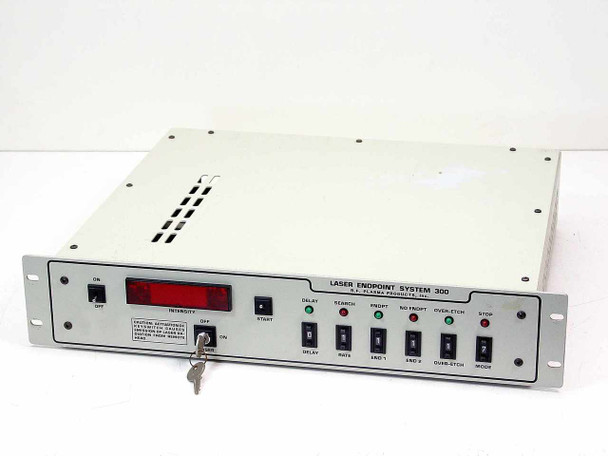

  • RF Plasma Products LES-300 Laser Endpoint System 300 Controller — front panel three-quarter view showing INTENSITY display, ON/OFF switch, LASER keyswitch, and process control toggle switches
  • LES-300 front panel close-up showing red INTENSITY LED display, ON/OFF toggle, START switch, LASER keyswitch with key inserted, and laser caution label

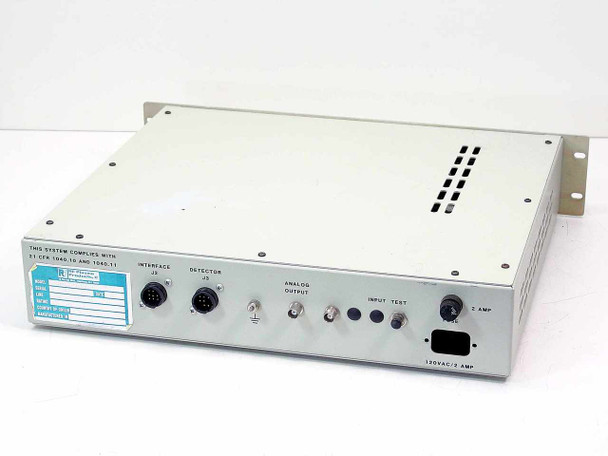

  • RF Plasma Products LES-300 rear panel showing Interface J2 and Detector J3 circular connectors, analog output BNC ports, INPUT TEST ports, fuse holder, and 120VAC/2AMP IEC power inlet
  • LES-300 rear panel close-up showing dual BNC ANALOG OUTPUT connectors, INPUT TEST ports, 2 AMP FUSE, and 120VAC/2AMP power inlet

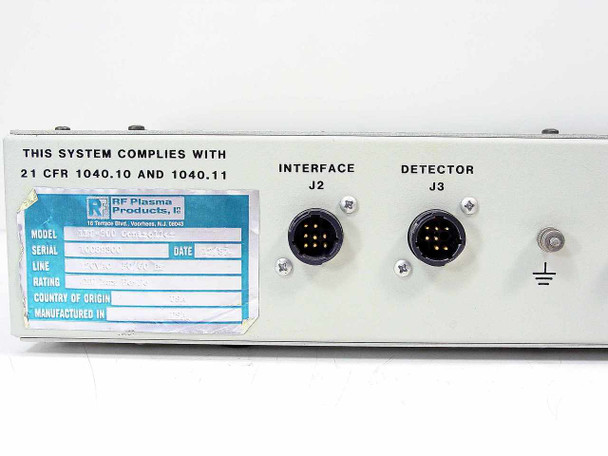

  • LES-300 rear panel left section close-up showing 21 CFR 1040.10/1040.11 compliance label, RF Plasma Products logo, Interface J2 and Detector J3 multi-pin circular connectors, and ground lug

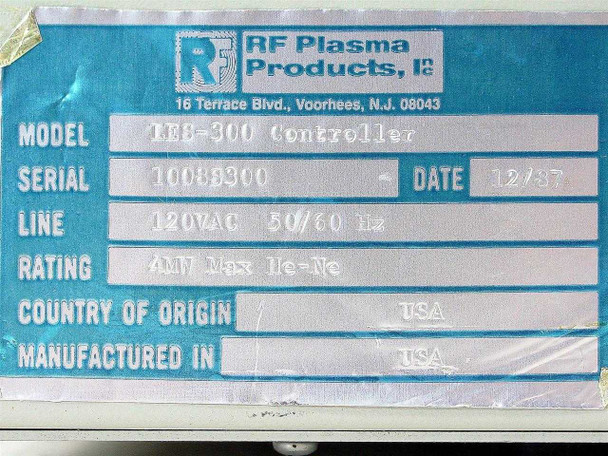

  • RF Plasma Products Inc. rating label showing Model LES-300 Controller, Serial 10089300, Date 12/87, Line 120VAC 50/60Hz, Rating 4mW Max He-Ne, Country of Origin USA, Manufactured in USA

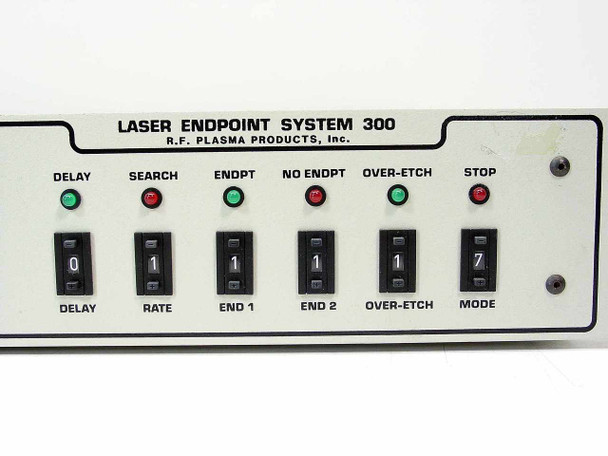

  • LES-300 front panel right-side close-up showing DELAY, SEARCH, ENDPT, NO ENDPT, OVER-ETCH, and STOP LED indicators with corresponding toggle switches labeled DELAY, RATE, END 1, END 2, OVER-ETCH, MODE
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

RF Plasma Products LES-300 Laser Endpoint System 300 Controller 120VAC For Parts

Laser endpoint detection controller for plasma etch systems. Uses a 4mW He-Ne laser to monitor etch process endpoints in semiconductor fabrication equipment.

Specifications & What's Included

  • Model: LES-300 Controller
  • Power: 120VAC, 50/60 Hz, 2A (no power supply included)
  • Laser: 4mW Max He-Ne
  • Form Factor: Rackmount
  • Rear connectors: Interface J2, Detector J3 (circular multi-pin), 2x BNC analog outputs
  • Front panel controls: ON/OFF, START, LASER keyswitch, DELAY, SEARCH, ENDPT, STOP, and toggle switches for MODE, RATE, END 1, END 2, OVER-ETCH
  • LED indicators: DELAY, SEARCH, ENDPT, NO ENDPT, OVER-ETCH, STOP
  • Manufactured: December 1987

Applications

Endpoint detection controllers monitor plasma etch processes in semiconductor fabrication by detecting optical signals from the etch chamber. The LES-300 integrates with RF plasma etch equipment and He-Ne laser systems to determine when an etch step is complete. These controllers were standard in semiconductor manufacturing for process control and repeatability.

Condition: For Parts or Not Working
This RF Plasma Products LES-300 Laser Endpoint System 300 Controller is being sold as-is for parts or repair. The unit does not come with a power supply. It has not been tested and is not guaranteed functional. The chassis is in fair cosmetic condition with light surface wear consistent with its age; the front panel controls, toggle switches, and LED indicators appear intact and undamaged. The rear panel connectors — Interface J2, Detector J3, and the BNC analog outputs — appear present. The key for the LASER keyswitch is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
RF Plasma Products, Inc.
Model:
LES-300
MPN:
LES-300 Controller
Type:
Laser Endpoint Detection Controller
SKU:
36660
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold for parts or repair. No power supply included.
Country/Region of Manufacture:
USA
Power Requirements:
120VAC, 50/60 Hz, 2A
Laser Rating:
4mW Max He-Ne
Form Factor:
Rackmount
Rear Interface Connectors:
Interface J2 (circular multi-pin), Detector J3 (circular multi-pin)
Analog Output:
2x BNC analog output connectors (rear panel)
Input/Test Ports:
Input Test connectors on rear panel
Fuse Rating:
2 AMP
Regulatory Compliance:
21 CFR 1040.10 and 1040.11
Front Panel Controls:
ON/OFF, INTENSITY display, START, LASER keyswitch, DELAY, SEARCH, ENDPT, NO ENDPT, OVER-ETCH, STOP
Front Panel Indicators:
LED indicators: DELAY, SEARCH, ENDPT, NO ENDPT, OVER-ETCH, STOP
Front Panel Switches:
Toggle switches: DELAY, RATE, END 1, END 2, OVER-ETCH, MODE
Application:
Plasma etch endpoint detection, semiconductor fabrication
Manufacture Date:
12/87
Compatible With:
He-Ne laser plasma etch systems, RF plasma etch equipment
Condition Notes:
RF Plasma Products LES-300 Laser Endpoint System 300 Controller sold as-is for parts or repair. No power supply included. Not tested, not guaranteed functional. Fair cosmetic condition; front panel and rear connectors appear intact. Key included.
