Retro-Ray Triple Prism Surveying System 3-Prism Set w/ Leather Carry Case

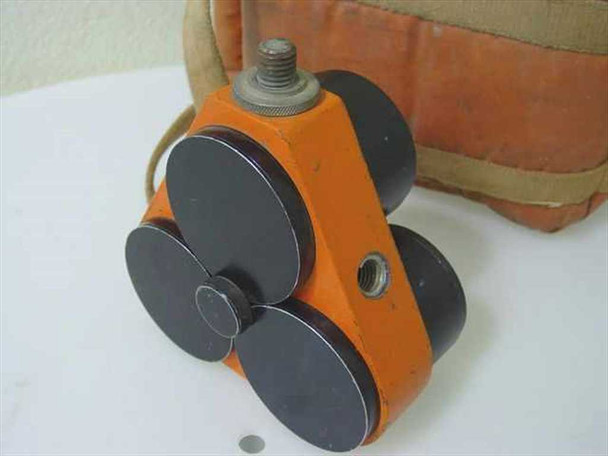

This is a Retro-Ray triple-prism reflector system used in land surveying and EDM (Electronic Distance Measurement) applications. The assembly holds three corner-cube retroreflector prisms in a compact orange housing with a threaded stud mount at the top, designed to attach to a standard prism pole or tribrach adapter. It is being sold as-is and includes the original leather carry case.
Specifications & What's Included
- Brand: Retro-Ray
- Configuration: Triple prism (3-prism cluster)
- Housing color: Orange with black prism bezels
- Mount: Threaded stud on top of housing (standard surveying pole thread)

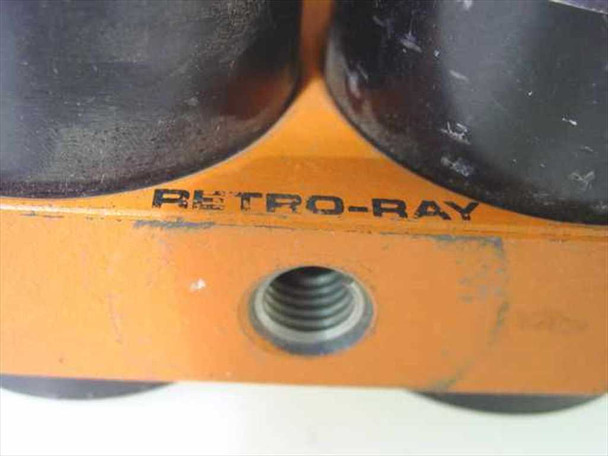

- Side port: Secondary threaded socket visible on housing side

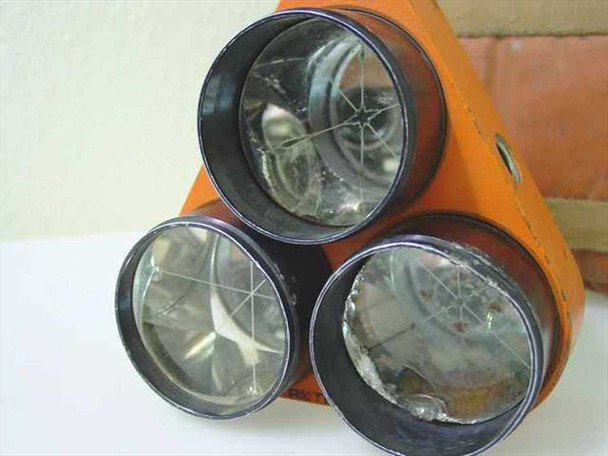

- Prism faces: Three corner-cube retroreflectors with cross-hair reference markings
- Prism condition: Light scratching and internal marks on glass faces visible in photos
- Includes: Triple prism assembly + original leather padded carry case with shoulder strap

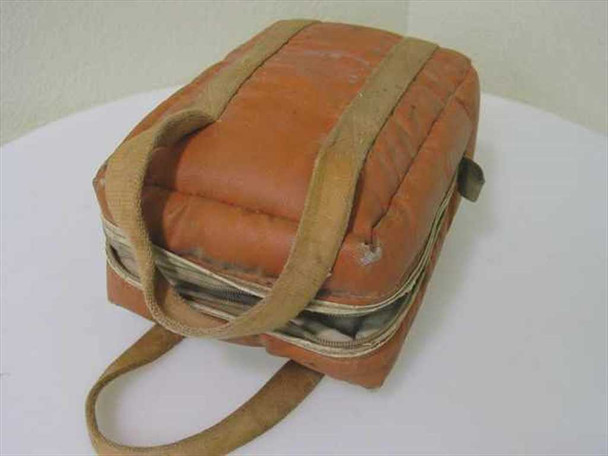

- Case condition: Worn; seams fraying, canvas binding separating in spots
- Sold as-is — not tested at our facility
Applications
Triple-prism reflector systems are used in land surveying to extend the effective range and signal strength of a total station or EDM instrument. By grouping three corner-cube prisms together, the assembly returns a stronger reflected signal than a single prism, making it especially useful for long-distance measurements or in conditions where a single prism would not return a reliable reading. The Retro-Ray brand was produced in the United States and was a recognized name in surveying reflector equipment, commonly used by land surveyors, civil engineers, and construction layout crews. Triple prism assemblies remain in use today wherever a total station or laser-based EDM system is deployed, and they are compatible with a wide range of instrument brands including Sokkia, Topcon, Leica, Nikon, and Trimble (subject to confirming the prism constant and mount thread compatibility).
This Retro-Ray Triple Prism Surveying System is being sold as-is. It came from a retired surveyor who reported it was in working condition, but we have not tested or evaluated it ourselves here at our facility. The three prism faces show light scratching and some internal marks consistent with field use — visible in the photos. The orange housing is in good cosmetic shape with minor scuffs. The leather carry case shows noticeable wear: the seams are fraying and the canvas binding is separating in spots, though the case still holds together and includes a shoulder strap. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Retro-Ray |
Model: |
Triple Prism System |
Type: |
Triple Surveying Prism Reflector System |
Number of Prisms: |
3 |
Prism Configuration: |
Triple (3-prism cluster) |
Mount Type: |
Threaded stud mount (visible top of housing) |
Application: |
EDM / Total Station distance measurement |
Includes: |
Triple prism assembly and leather carry case |
Case Type: |
Leather padded carry case with shoulder strap |
Frame Color: |
Orange |
SKU: |
18481 |
Seller Notes: |
Includes triple prism assembly and original leather carry case with shoulder strap. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Retro-Ray Triple Prism Surveying System sold as-is. Reported working by prior owner (retired surveyor); not tested at our facility. Prisms show light field scratches. Leather carry case shows wear with fraying seams. Review photos before buying. |
