Description
Real Power 250P ATX 250W Desktop PC Power Supply 115V/230V Molex 50/60Hz
The Real Power 250P is an ATX-form-factor internal power supply designed for desktop computers. Manufactured by Real Power Enterprise Co., Ltd. of Taiwan, this unit provides 250 watts of total output across the standard ATX voltage rails and accepts both 115V and 230V AC input, making it compatible with North American and international mains. It carries UL, FCC, CE, and CB certifications.
Specifications & What's Included

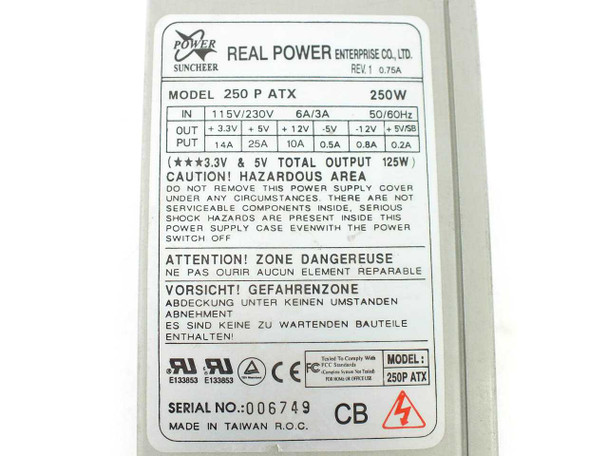

- Model: 250P ATX
- Manufacturer: Real Power Enterprise Co., Ltd. (Taiwan)
- Hardware Revision: Rev 1.75A
- Form Factor: ATX
- Total Output Power: 250W
- Input Voltage: 115V / 230V AC (switchable)
- Input Current: 6A at 115V / 3A at 230V
- Input Frequency: 50/60Hz
- Output +3.3V: 14A
- Output +5V: 25A
- Output +12V: 10A
- Output -5V: 0.5A
- Output -12V: 0.8A
- Output +5V Standby: 0.2A
- Combined +3.3V & +5V Max Output: 125W
- AC Inlet: IEC C14 main input; IEC C13 pass-through output on rear panel
- Output Connectors: Multiple 4-pin Molex peripheral connectors and Berg (mini) connectors on full-length cable harness
- Certifications: UL (E133853), FCC, CE, CB
- Made in Taiwan, R.O.C.
Applications
ATX power supplies in the 250W class were the standard internal power source for desktop PCs from the mid-1990s through the mid-2000s, powering systems built around processors like the Intel Pentium II, Pentium III, Celeron, and early Athlon platforms. A 250W unit is well-suited to lower-power desktop builds — single-drive systems, thin clients, point-of-sale terminals, and industrial PC enclosures that draw modest total wattage. The dual-voltage input (115V/230V) makes this supply useful as a replacement or spare in both domestic and international equipment. Today these units are most commonly sought as direct replacements in legacy proprietary desktop cases where the physical ATX form factor fits but higher-wattage modern supplies would be overkill, or in hobbyist retro-computing builds where period-correct hardware is preferred.
This Real Power 250P ATX 250W desktop PC power supply has been bench-tested at our facility and is in good working condition. The unit powers up normally and all output rails are functional. The chassis shows light surface wear consistent with prior use. All attached Molex cables are present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Real Power Enterprise Co., Ltd. |
Model: |
250P ATX |
MPN: |
250P ATX |
Type: |
ATX Desktop Computer Power Supply |
SKU: |
19062 |
Wattage: |
250W |
Input Voltage: |
115V/230V AC |
Input Frequency: |
50/60Hz |
Input Current: |
6A (115V) / 3A (230V) |
Output +3.3V: |
14A |
Output +5V: |
25A |
Output +12V: |
10A |
Output -5V: |
0.5A |
Output -12V: |
0.8A |
Output +5VSB: |
0.2A |
3.3V & 5V Combined Max Output: |
125W |
Form Factor: |
ATX |
Hardware Revision: |
Rev 1.75A |
Connectors: |
Multiple Molex peripheral connectors |
AC Inlet: |
IEC C14 (input) and IEC C13 (output pass-through) |
Certifications: |
UL, FCC, CE, CB |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Bench-tested and in good working condition. Includes all attached Molex cables. |
Condition Notes: |
This Real Power 250P ATX 250W desktop power supply has been bench-tested and is in good working condition. Light surface wear consistent with use. All Molex cables included. Please contact us with any questions. |
