Rapidsyn 23D-6309AE Stepper Motor 2.2VDC 4.6A NEMA 23 1/4" Shaft 811822-001

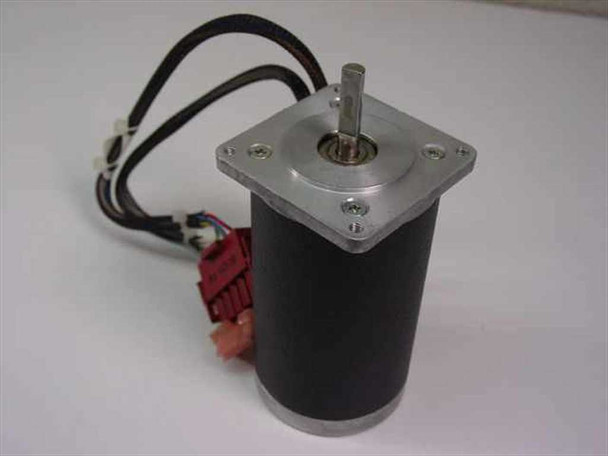

The Rapidsyn 23D-6309AE is a NEMA 23-frame hybrid stepper motor manufactured by American Precision Industries (API), Rapidsyn Division, in Oceanside, California. It is rated at 2.2 VDC and 4.6 A and features a 1/4" output shaft. The motor includes an attached braided cable harness terminating in a red multi-pin connector, ready for integration into a motion control system.
Specifications & What's Included
- Model: 23D-6309AE
- Part Number: 811822-001/C
- Manufacturer: American Precision Industries (API), Rapidsyn Division — Oceanside, CA, Made in USA
- Voltage: 2.2 VDC
- Current: 4.6 A
- Frame Size: NEMA 23 (2.2" / 56 mm square flange)

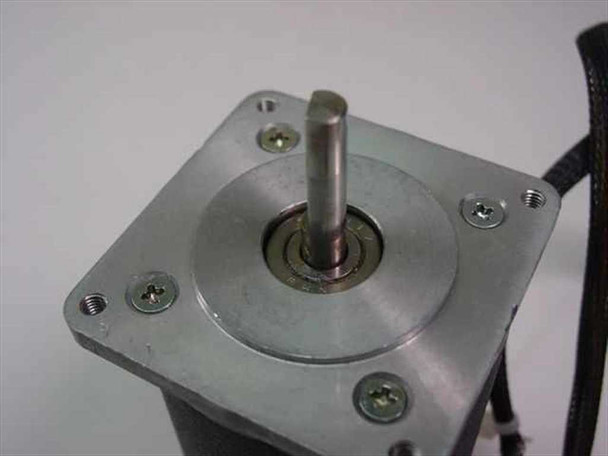

- Flange: 2.2" square aluminum with four 0.125" mounting holes (M4 tapped) on a 1.854" bolt circle
- Output Shaft Diameter: 1/4" (0.25")
- Output Shaft Length: 3/4"
- Motor Body Length: 4"
- Motor Body Diameter: 2"
- Insulation Class: B

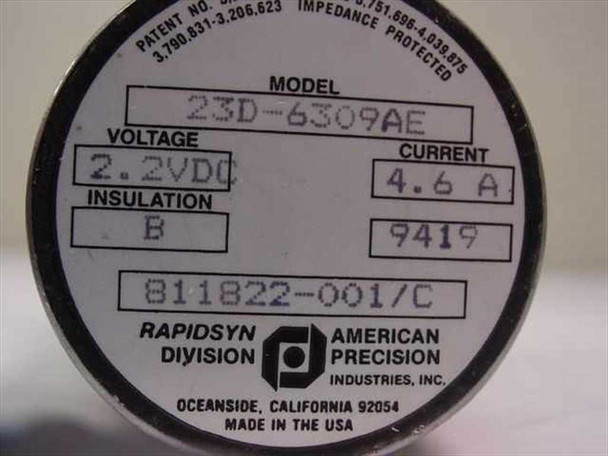

- Date Code: 9419 (1994 manufacture)
- Includes: attached braided cable harness with red multi-pin connector (P6-style) and orange spade-terminal leads
- Motor only — no driver board, no external mounting hardware
Applications
NEMA 23 hybrid stepper motors like the Rapidsyn 23D-6309AE are widely used in precision motion control applications including CNC machine tools, 3D printers, laser cutters, plotters, robotics, and automated positioning stages. The NEMA 23 frame is one of the most common sizes in industrial and laboratory automation, compatible with a broad range of stepper motor drivers and motion controllers. Rapidsyn was a well-regarded American manufacturer of stepper motors through the 1980s and 1990s, and their motors are still found in legacy OEM equipment as well as hobbyist and repair applications. The 23D series is a double-stack (longer body) configuration offering higher torque than single-stack NEMA 23 motors, making it suited to applications requiring more holding or running torque. This motor dates from 1994 based on the date code visible on the end cap label.
This Rapidsyn 23D-6309AE NEMA 23 stepper motor has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The motor body and aluminum flange are intact with normal wear for a used industrial component. The attached braided cable harness and red multi-pin connector are present and appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Rapidsyn |
Model: |
23D-6309AE |
MPN: |
811822-001/C |
Secondary Model: |
811822-001 |
Type: |
Hybrid Stepper Motor |
SKU: |
29565 |
Voltage Rating: |
2.2 VDC |
Current Rating: |
4.6 A |
Frame Size: |
NEMA 23 |
Flange Size: |
2.2" square |
Mounting Hole Pattern: |
1.854" square, 0.125" holes (M4 tapped) |
Shaft Diameter: |
1/4" (0.25") |
Shaft Length: |
3/4" |
Motor Body Length: |
4" |
Motor Body Diameter: |
2" |
Insulation Class: |
Class B |
Connector Type: |
Red multi-pin connector (P6 type) with braided cable harness |
Country/Region of Manufacture: |
United States |
Manufacturer: |
American Precision Industries (API), Rapidsyn Division |
Seller Notes: |
Includes attached braided cable harness and red multi-pin connector. Motor only — no driver or mounting hardware. |
Condition Notes: |
This Rapidsyn 23D-6309AE NEMA 23 stepper motor has been inspected and is in good used condition, pulled from a working environment. Cable harness and connector are intact. Please view our photos and contact us with any questions. |
