Description
Queue Systems QU2195D12 Cryostar -95°C Ultra-Low Cryogenic Freezer 208/230V For Parts

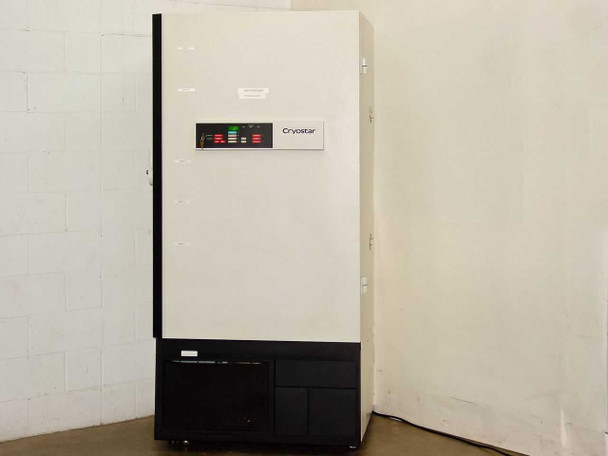

The Queue Systems QU2195D12 is an upright ultra-low temperature (ULT) cryogenic freezer from Queue Systems' Cryostar line, rated to -95°C for the long-term preservation of biological samples, cell cultures, enzymes, and other temperature-sensitive materials. This unit is equipped with a liquid nitrogen (LN2) backup system for temperature maintenance during power interruptions, a front-panel LED digital temperature display, and an alarm/monitoring panel with indicators for clean filter and alarm battery status. It is being sold as-is for parts or repair — it no longer cools and the compressor is not engaging.
Specifications & What's Included
- Manufacturer: Queue Systems, Inc. — Asheville, NC, USA
- Model: QU2195D12
- Temperature Rating: -95°C (rated)
- Electrical: 208/230V AC, Single Phase, 60 Hz, 16 Amps
- Refrigerant: QRF0060, 61.8 oz charge (per rating plate)
- Test Pressure: High Side 400 PSIG / Low Side 200 PSIG
- Liquid Nitrogen (LN2) Backup System: included/equipped
- Front Panel: Red LED digital temperature display, Push to Display button, Adjust and Set Point controls, Backup System On/Off toggle switch
- Front Panel Alarm Indicators: Clean Filter, Alarm Battery Low annunciators
- Interior: Multiple shelves, 5 inner door insulation panels
- Rear Connections: DB9 serial connector, screw-terminal power block
- Exterior Dimensions: 40" Wide × 36" Deep × 82" Tall
- US Patent: 5,408,848
- Note: Front-panel lock keys are not available — one key broken off inside the lock cylinder; lock is operable with a flat-head screwdriver
- Sold as-is for parts or repair only — no accessories, manuals, or keys included
Applications
Ultra-low temperature cryogenic freezers of this type are used in life science research laboratories, biobanks, pharmaceutical facilities, hospitals, and university research departments for the storage of biological specimens requiring temperatures at or below -80°C — including cell lines, DNA/RNA samples, blood plasma, enzymes, and vaccines. The Cryostar QU2195D12's -95°C rating places it in the deep ULT category, capable of longer-term preservation than standard -80°C units. The integrated LN2 backup option makes it suitable for facilities requiring uninterrupted cold-chain maintenance. Units of this type are also sought after by HVAC/refrigeration technicians and equipment repair specialists for cascading refrigeration system parts — compressors, condensers, copper tubing, control boards, and refrigeration components — which retain value for repair or cannibalization into other ULT systems.
This Queue Systems QU2195D12 Cryostar ultra-low cryogenic freezer is rated to -95°C but is no longer operational and is being sold as-is for parts or repair. The unit was tested in-house at our facility some years ago and reached -85°C at that time; however, after an extended period of storage without use, the freezer no longer cools. The compressor is not engaging — this is likely due to the unit's refrigerant self-detection circuit responding to low refrigerant charge (the system is known to need a refrigerant recharge, refrigerant QRF0060, 61.8 oz per the rating plate). There may be additional underlying issues beyond the refrigerant charge. Additionally, one of the front-panel lock keys has broken off inside the lock cylinder; the lock can currently be adjusted with a flat-head screwdriver, and the original keys are no longer available. Cosmetically, the exterior cabinet is generally clean and presentable. The interior shelves and inner door panels are intact and in clean condition. The interior side wall shows a horizontal scuff/scratch line visible in the photos. The rear refrigeration compartment, copper tubing, condenser, and wiring are accessible and visible in the photo set. A DB9 connector and screw-terminal power block are present on the rear panel. The liquid nitrogen backup option is included with this unit. Please review the full photo set carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Queue Systems |
Model: |
QU2195D12 |
MPN: |
QU2195D12 |
Type: |
Ultra-Low Temperature Cryogenic Freezer |
SKU: |
42395 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair. No longer cools. Nitrogen backup option included. |
Country/Region of Manufacture: |
United States |
Temperature Range: |
-95°C (rated) |
Power Requirements: |
208/230V AC, 1-Phase, 60Hz, 16 Amps |
Voltage: |
208/230V AC |
Current Rating: |
16 Amps |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Refrigerant: |
QRF0060, 61.8 oz charge |
Test Pressure: |
High Side 400 PSIG / Low Side 200 PSIG |
Backup System: |
Liquid Nitrogen (LN2) Backup Option |
Display Type: |
Red LED Digital Temperature Display |
Interior Configuration: |
5 inner door panels, multiple shelves |
Form Factor: |
Upright, Freestanding |
Exterior Dimensions: |
40" W x 36" D x 82" H |
Application: |
Biological sample storage, cryogenic lab storage |
US Patent: |
5,408,848 |
Condition Notes: |
This Queue Systems QU2195D12 Cryostar ultra-low cryogenic freezer is rated to -95°C but is no longer operational and is being sold as-is for parts or repair. |
