QLogic ZIRCON_DB.002 PCI Matchmaker AMCC S5920Q ISA Bus Controller Card

(No reviews yet) Write a Review
SKU:
24255
MPN:
zircon_db.002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • QLogic ZIRCON_DB.002 PCI Matchmaker card with AMCC S5920Q chip and green daughter board — full card top view
  • QLogic ZIRCON_DB.002 close-up showing dual RJ-45 ports and DB9 serial connector on card bracket edge
  • QLogic ZIRCON_DB.002 board close-up showing ZIRCON_DB.002 silkscreen label, jumpers JP1 JP54–JP62, and LED indicators Tx Rx Lnk Bsy
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

QLogic ZIRCON_DB.002 PCI Matchmaker AMCC S5920Q ISA Bus Controller Card

PCI bus matchmaker controller card designed for QLogic Matchmaker platform systems. Features AMCC S5920Q chipset for ISA bus bridging and system interface control.

Specifications & What's Included

  • Model: ZIRCON_DB.002 (MPN: ZIRCON_DB.002)
  • Chipset: AMCC S5920Q
  • Form Factor: Full-length PCI card
  • Ports: 2x RJ-45, 1x DB9 serial
  • LED Indicators: Tx, Rx, Lnk, Bsy
  • Includes daughter board (green sub-board)
  • Manufactured: United States

Applications

Used in legacy PCI-based telecommunications and industrial systems requiring ISA bus interface bridging. The QLogic Matchmaker platform served as a backend switching and control architecture in telecom infrastructure during the late 1990s and early 2000s. This controller card manages bus arbitration and data transfer between PCI and ISA subsystems in Matchmaker-based installations.

Condition: Used
This QLogic ZIRCON_DB.002 PCI Matchmaker controller card has been inspected and is in good used condition. The board and its attached daughter sub-board appear clean with no visible damage. The RJ-45 ports, DB9 serial connector, and edge connectors all look intact. There is light handling wear consistent with prior installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
QLogic
Model:
ZIRCON_DB.002
MPN:
ZIRCON_DB.002
Type:
PCI Bus Matchmaker Controller Card
SKU:
24255
Chipset:
AMCC S5920Q
Bus Interface:
PCI
Form Factor:
Full-Length PCI Card
Ports:
2x RJ-45, 1x DB9 Serial
LED Indicators:
Tx, Rx, Lnk, Bsy (visible on board)
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; includes daughter board (green sub-board) as shown.
Compatible With:
PCI bus systems; QLogic Matchmaker platform
Country/Region of Manufacture:
United States
Condition Notes:
QLogic ZIRCON_DB.002 PCI Matchmaker card inspected and in good used condition. Board and daughter card clean, connectors intact, light handling wear only.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

Burndy 107-103-3AM1 ISA controller card – component side showing NEC D7201AC main controller IC, Fox crystal oscillator, DIP switch bank, and DB25 connector on bracket Burndy 107-103-3AM1 ISA controller card – solder side showing ISA edge connector, PCB trace layout, and Y403-034 marking near DB25 port
Add to Cart
Quick view

Burndy 107-103-3AM1 ISA Controller Card NEC D7201AC Serial I/O PCB

Burndy

$25.00
Was: $50.00
Burndy 107-103-3AM1 ISA Controller Card NEC D7201AC Serial I/O PCBThis is a Burndy 107-103-3AM1 ISA expansion card built around the NEC D7201AC serial communications controller. The card plugs into a...
40764
SKU:
40764
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Burndy
Model:
107-103-3AM1
MPN:
107-103-3AM1
Type:
ISA Controller Card
SKU:
40764
Main Controller Chip:
NEC D7201AC
Bus Interface:
ISA (Industry Standard Architecture)
Connector Type:
DB25 Female (Parallel/Serial Port)
Form Factor:
Half-Length ISA Card
PCB Revision:
B (visible on PCB silkscreen)
Date Code:
SD8833
Condition:
Used – Inspected
Seller Notes:
Card only. No cables or accessories included.
Compatible With:
ISA-bus desktop computers and workstations
Country/Region of Manufacture:
Japan (NEC D7201AC chipset)
Condition Notes:
Burndy 107-103-3AM1 ISA Controller Card. Inspected, good used condition. PCB clean, no visible damage. DB25 and ISA edge connectors intact. Card only, no cables included.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

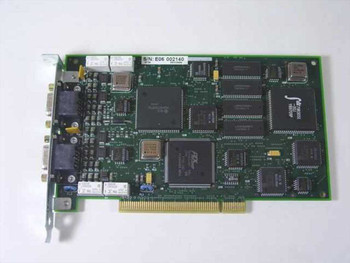

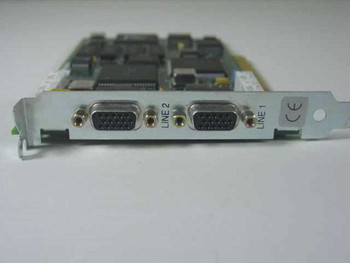

Digi International EPC/X PCI PLX 50000540-01 serial controller card – top view showing PCB, PLX PCI bridge chip, and onboard components Digi EPC/X PCI PLX card bracket view showing two DB15 (15-pin) serial line ports labeled LINE 1 and LINE 2 with CE mark
