Description
Premier 1224/2460 PBX Phone System Chassis 612 Series w/ Wiring & Mounting Hardware
The Premier 1224/2460 is a PBX (Private Branch Exchange) telephone system chassis designed for small to mid-size business office phone installations. This unit serves as the central hardware cabinet for the Premier 612/1224/2460 series PBX platform, housing the system's line cards and providing the physical backbone for internal and external call routing. It is FCC Part 68 compliant and rated for RJ21X connectivity.
Specifications & What's Included
- Model: Premier 1224/2460
- Compatible Series: Premier 612/1224/2460
- FCC Part 68 Compliant
- FCC Registration (1224/2460): BE287V-16451-M
- FCC Registration (612/1224/2460): BE287V-16449-K
- Connector Type: RJ21X
- Ringer Equivalence: 0.8B
- Power: CSA Certified Supply required, 30VDC
- Form Factor: Desktop enclosure with metal chassis and ventilation slots
- Includes: Main chassis enclosure
- Includes: Open expansion card cage (multi-slot, visible card guide rails)
- Includes: Wiring harness and cables
- Includes: Metal mounting brackets and hardware
Applications
The Premier 1224/2460 PBX system was designed for small and medium-sized businesses that needed an on-premises telephone switching platform to manage internal extensions and external PSTN lines without relying on a hosted or carrier-based solution. These systems were common in office environments from the 1980s through the 1990s, providing feature-rich call handling — including hold, transfer, paging, and direct-inward-dialing — at a cost appropriate for companies that couldn't justify enterprise-class equipment. The 612/1224/2460 model numbering reflects the system's scalable line and extension capacity. Today, units like this are sought for legacy office environments still running compatible Premier handsets and infrastructure, as well as for parts and repair of existing installed systems.

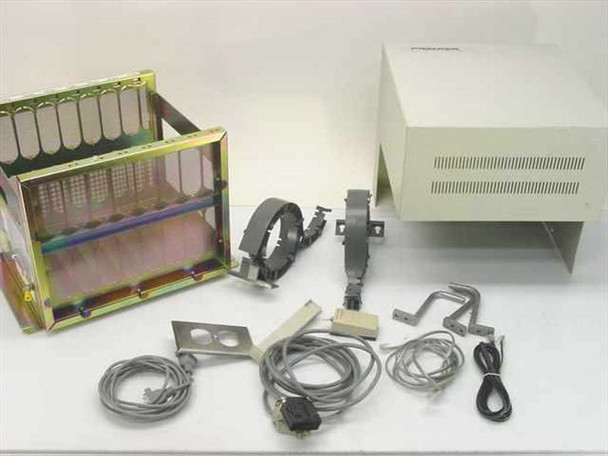

This Premier 1224/2460 PBX Telephone System Chassis has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The enclosure shows normal cosmetic wear consistent with office use. The fourth photo shows the full lot: the main chassis, an open expansion card cage, a wiring harness, mounting brackets, and several cables are all included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Premier |
Model: |
1224/2460 |
MPN: |
Premier 1224/2460 |
Type: |
PBX Telephone System Chassis |
SKU: |
25654 |
Compatible With: |
Premier 612/1224/2460 Series PBX |
FCC Registration: |
BE287V-16451-M (1224/2460); BE287V-16449-K (612/1224/2460) |
Standards Compliance: |
FCC Part 68 |
Connector Type: |
RJ21X |
Ringer Equivalence: |
0.8B |
Power Source: |
CSA Certified Supply, 30VDC |
Form Factor: |
Desktop / Cabinet |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes wiring harness, expansion card cage, and mounting hardware |
Condition Notes: |
Premier 1224/2460 PBX chassis in good used condition. Pulled from a working environment where it was in use and functional. Includes expansion cage, wiring harness, mounting brackets, and cables. |
