Description

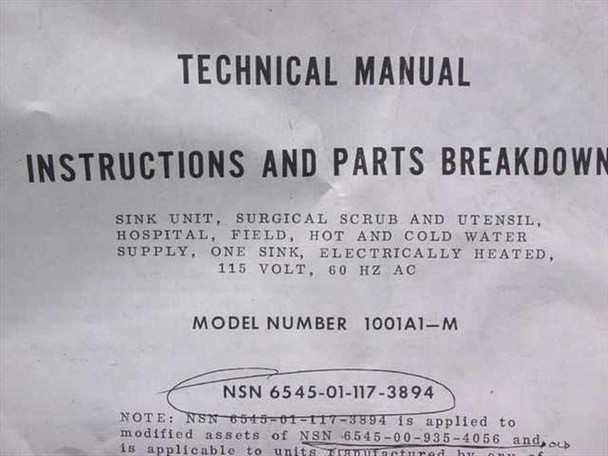

Precision Products 1001A1-M Field Hospital Surgical Sink Technical Manual NSN 6545-01-117-3894
This is a Technical Manual — Instructions and Parts Breakdown — for the Precision Products Model 1001A1-M field hospital surgical scrub and utensil sink unit with hot and cold water supply. The sink unit covered is a collapsible, portable surgical scrub and utensil sink capable of delivering either electrically heated (115V, 60 Hz AC) or unheated water, designed for use by medical personnel in field hospital environments. The manual covers general operating instructions and an illustrated parts breakdown for the complete unit.
Specifications & What's Included
- Model Number: 1001A1-M
- NSN: 6545-01-117-3894
- Document Type: Technical Manual — Instructions and Parts Breakdown
- Equipment Covered: Sink Unit, Surgical Scrub and Utensil, Field Hospital, Hot and Cold Water Supply, One Sink, Electrically Heated
- Voltage: 115V, 60 Hz AC
- Manual Sections: Section I – Introduction, Section II – Assembly, Section III – Operation and Maintenance Troubleshooting, Section IV – Parts List
- Associated Manufacturers and FSCM Codes listed in manual:
- Precision Products, Inc. — FSCM 23293
- Atlas Hospital Equipment Co. — FSCM 5A483
- Penn Metal Fabricators, Inc. — FSCM 32682
- Precision Products Company — FSCM 55732
- Note: NSN 6545-01-117-3894 is applied to modified assets of NSN 6545-00-935-4056; parts identified by NSN are interchangeable; parts with prefix SS are applicable among all contracts
- Language: English
- Format: Printed / Hard Copy
Applications
The Model 1001A1-M is a U.S. military-specification portable field hospital sink designed for use in forward surgical and medical support environments. This type of sink unit was developed to provide surgical scrub and instrument-cleaning capability in field conditions where fixed plumbing is unavailable, supporting pre-operative and post-operative procedures in mobile or temporary medical facilities. The unit's collapsible, portable design allowed rapid deployment by medical personnel in the field. This technical manual was the primary reference document for assembly, operation, troubleshooting, and parts ordering under the military supply system — the NSN (National Stock Number) allowed depot and unit-level personnel to requisition replacement components through the federal supply chain. Manuals of this type remain relevant for collectors, military surplus restorers, and institutions that maintain or study Cold War-era military field medical equipment.
This Precision Products 1001A1-M Field Hospital Surgical Sink Technical Manual is in good used condition. All pages appear to be present and legible, with normal shelf and age-related wear consistent with a military technical document of this era. The cover shows light soiling and handling wear. Interior pages are clean and readable, with no missing or severely damaged pages observed. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Precision Products, Inc. |
Model: |
1001A1-M |
MPN: |
1001A1-M |
Type: |
Technical Manual – Instructions and Parts Breakdown |
SKU: |
30884 |
NSN: |
6545-01-117-3894 |
For Make/Model: |
Precision Products 1001A1-M |
Document Type: |
Instructions and Parts Breakdown |
Equipment Covered: |
Field Hospital Surgical Scrub and Utensil Sink Unit |
Voltage: |
115V, 60 Hz AC |
Heating Type: |
Electrically Heated |
Water Supply: |
Hot and Cold Water Supply |
Manual Sections: |
Introduction, Assembly, Operation, Maintenance, Parts List |
Associated Manufacturers: |
Precision Products, Atlas Hospital Equipment, Penn Metal Fabricators |
FSCM (Precision Products Inc.): |
23293 |
FSCM (Atlas Hospital Equipment Co.): |
5A483 |
FSCM (Penn Metal Fabricators Inc.): |
32682 |
FSCM (Precision Products Company): |
55732 |
Language: |
English |
Format: |
Print / Hard Copy |
Condition: |
Used – Inspected, Good Condition |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Used copy in good condition; all pages present and legible |
Condition Notes: |
Precision Products 1001A1-M Field Hospital Surgical Sink Technical Manual in good used condition. All pages present and legible. Normal shelf/age wear. No missing pages observed. |
