Power Tronic

Power Tronic CK-4145DE 145W AT Switching Power Supply 115V/230V 50/60Hz

(No reviews yet) Write a Review
SKU:
19132
MPN:
CK-4145DE
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • Power Tronic CK-4145DE 145W AT Switching Power Supply – front and top view showing power harness and connectors

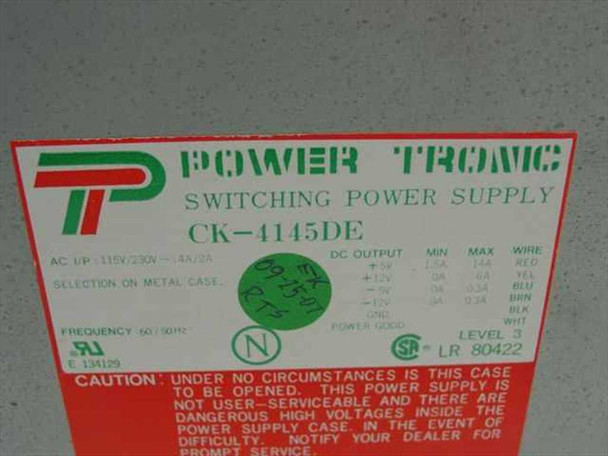

  • Power Tronic CK-4145DE label showing 115V/230V input, DC output specs, UL and CSA certifications
  • Power Tronic CK-4145DE – voltage selector switch and power connector detail view
$50.00
Was: $135.00
Current Stock: 2

Sold Out

Description

Power Tronic CK-4145DE 145W AT Switching Power Supply 115V/230V 50/60Hz

This is a switching power supply designed for AT-form-factor desktop computers. It converts AC input to regulated DC output across multiple voltage rails required by legacy computer systems.

Specifications & What's Included

  • Model: CK-4145DE | Power Output: 145W
  • Input: 115V/230V selectable, 50/60Hz
  • DC Outputs: +5V, +12V, -5V, -12V
  • Input Current: 4A @ 115V / 2A @ 230V
  • Certifications: UL (E134129), CSA (LR 80422)
  • Includes attached power harness and voltage selector switch

Applications

AT power supplies were standard in desktop computers from the 1980s through early 2000s, particularly IBM PC/XT/AT compatible systems and early clones. This unit is compatible with legacy desktop systems using the AT form factor. Such supplies are used in restoration projects, retro computing builds, and industrial equipment from that era that required AT-standard power delivery.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Power Tronic CK-4145DE 145W AT Switching Power Supply has been tested at our facility and is in good working order. The unit powers up normally and all output rails were confirmed functional during testing. Cosmetically, the steel enclosure shows typical surface wear consistent with prior use, and the label on the side is intact and legible. The voltage selector switch and power harness are present and in serviceable condition. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Power Tronic
Model:
CK-4145DE
MPN:
CK-4145DE
SKU:
19132
Condition:
Used – Inspected and Tested
Seller Notes:
Includes attached power harness and voltage selector switch.
Form Factor:
AT
Power Supply Type:
Switching Power Supply (AT)
Power Output:
145W
Input Voltage:
115V / 230V (selectable via metal case switch)
Frequency:
50/60Hz
DC Output Rails:
+5V, +12V, -5V, -12V
Input Current:
4A @ 115V / 2A @ 230V
Certifications:
UL (E134129), CSA (LR 80422), Level 3
Compatible With:
AT-form-factor desktop computers, IBM PC/XT/AT compatible systems
Country of Manufacture:
Taiwan
Condition Notes:
Power Tronic CK-4145DE 145W AT switching power supply. Tested at our facility and confirmed in working order. Shows normal surface wear. Voltage selector switch and harness present. Please contact us with any questions.
View AllClose

Related Products

Related Products

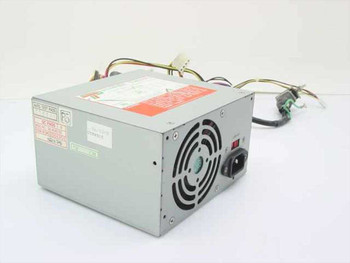

Power Tronics SK-4145DE 145W AT switching power supply — angled front view showing fan, IEC inlet, and output harness Power Tronics SK-4145DE label showing switching power supply specs: 115V/230V input, DC output ratings, UL/CSA/TUV certifications
Add to Cart
Quick view

Power Tronics SK-4145DE 145W AT Switching Power Supply 115V/230V w/ Switch

Power Tronics

$70.00
Was: $150.00
Power Tronics SK-4145DE 145W AT Switching Power Supply 115V/230V w/ Switch AT form factor switching power supply rated for 145 watts. Provides regulated DC output for legacy desktop computer systems...
19133
SKU:
19133
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Power Tronics
Model:
SK-4145DE
MPN:
SK-4145DE
SKU:
19133
Condition:
Used – Inspected and Tested
Seller Notes:
Includes power cord and external power switch with harness
Form Factor:
AT Desktop
Power Output:
145 Watts
Input Voltage:
115V/230V AC (selectable on metal case)
Input Current:
4A at 115V / 2A at 230V
Frequency:
60/50 Hz
DC Output +5V:
+5V: 1.5A min, 14A max
DC Output +12V:
+12V: 0A min, 6A max
DC Output -5V:
-5V: 0A min, 0.3A max
DC Output -12V:
-12V: 0A min, 0.3A max
Power Supply Type:
Switching Power Supply
Connector Standard:
AT (P8/P9 motherboard connector)
Certifications:
UL (E 134129), CSA (LR 804), TUV Rheinland
Standards:
IEC Publication 950
Compatible With:
AT form factor desktop computers
Country of Manufacture:
Taiwan
Condition Notes:
Power Tronics SK-4145DE 145W AT Switching Power Supply. Tested and in good working order. Includes power cord and external switch. Normal cosmetic wear. Please contact us with any questions.

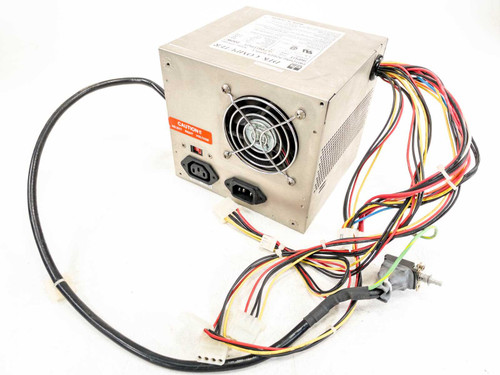

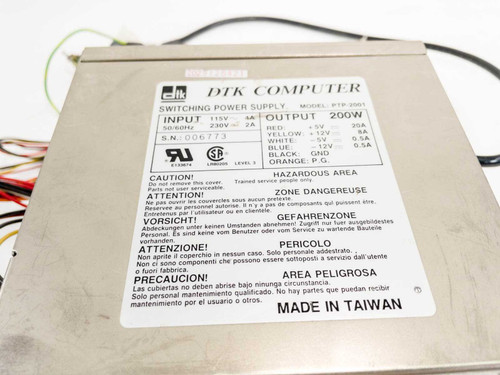

DTK Computer PTP-2001 200W AT switching power supply – full unit showing brushed metal enclosure and output wire harness with Molex connectors DTK Computer PTP-2001 label showing model number, input 115V/230V, and output rail specifications – Made in Taiwan
Add to Cart
Quick view

DTK Computer PTP-2001 200W Switching Power Supply 115V 230V 50/60Hz AT Style

DTK Computer

$70.00
Was: $150.00
DTK Computer PTP-2001 200W Switching Power Supply 115V 230V 50/60Hz AT Style This is an AT-form factor switching power supply designed for desktop computers. It supplies regulated DC power to...
52903
SKU:
52903
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Brand:
DTK Computer
Model:
PTP-2001
MPN:
PTP-2001
SKU:
52903
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no additional accessories included.
Form Factor:
AT Desktop
Power Output:
200W
Input Voltage:
115V~ 4A / 230V~ 2A (switchable)
Input Frequency:
50/60Hz
Output Rails:
+5V 25A, +12V 8A, -5V 0.5A, -12V 0.5A
Output Wattage:
200W
Voltage Rating:
115V / 230V Dual Voltage
Power Requirements:
115V~ 4A or 230V~ 2A, 50/60Hz
Certifications:
UL, CSA
Country of Manufacture:
Taiwan
Compatible With:
AT-style desktop computers, vintage PC systems
Connector Type:
AT Molex, IEC C14 input
Cooling:
Internal 80mm fan
Condition Notes:
DTK Computer PTP-2001 200W AT switching power supply. Powered and tested at our facility — in good working order. Pulled from a working environment. Light surface wear. Please view photos and contact us with any questions.
Power Tronic PK-6145DT3 145W ATX switching power supply — three-quarter front view showing fan and output harness with Molex and floppy connectors Power Tronic PK-6145DT3 145W ATX power supply — side and rear view showing AC inlet, fan grille, and output cable harness
Add to Cart
Quick view

Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC

Power Tronic

$40.00
Was: $125.00
Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC This is a used ATX switching power supply rated for 145W maximum output. The unit supplies regulated DC power to desktop PC...
19235
SKU:
19235
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Power Tronic
Model:
PK-6145DT3
MPN:
PK-6145DT3
SKU:
19235
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only — no additional accessories included.
Form Factor:
ATX Desktop
Power Output:
145W Max
Connector Type:
20-Pin ATX Main, 4-Pin Molex, Floppy
AC Input Voltage:
100V / 120V / 200V / 240V (selectable)
AC Input Current:
4.2A / 2.3A
Frequency:
47-63 Hz
DC Output +3.3V:
Min 0.3A / Max 6A (100W Max combined)
DC Output +5V:
Min 1.5A / Max 18A
DC Output +12V:
Min 0.2A / Max 4A
DC Output -5V:
Min 0A / Max 0.3A
DC Output -12V:
Min 0A / Max 0.3A
DC Output +5VSB:
Min 0A / Max 0.2A
Cooling:
Single 80mm case fan
Compatible With:
ATX desktop computers, 20-pin motherboards
Country of Manufacture:
Taiwan
Manufacturer:
Powertech Electronic Co., Ltd.
Condition Notes:
This Power Tronic PK-6145DT3 145W ATX power supply has been tested and is in working order. Good used condition with normal cosmetic wear. All output leads present. Please view photos and contact us with questions.

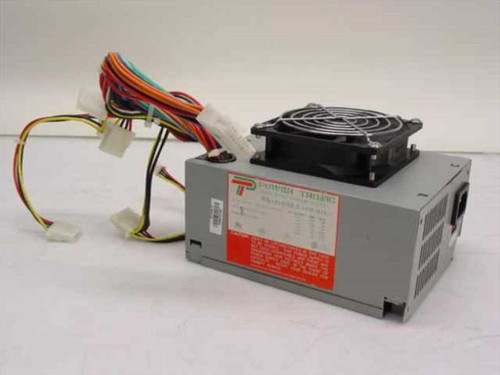

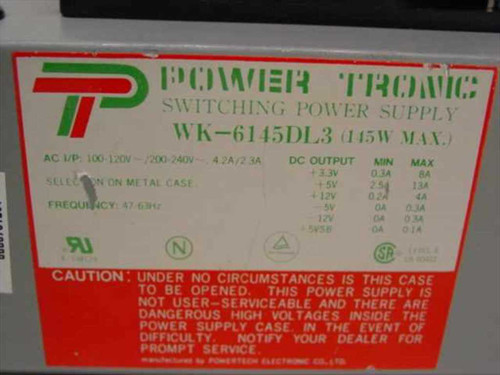

Power Tronic WK-6145DL3 145W ATX switching power supply — three-quarter front view showing fan, housing, and Molex output cables Power Tronic WK-6145DL3 label detail showing model number, 100-240V dual input voltage specs, and DC output ratings table
Add to Cart
Quick view

Power Tronic WK-6145DL3 145W ATX Switching Power Supply 100-240V Desktop PC

Power Tronic

$40.00
Was: $80.00
Power Tronic WK-6145DL3 145W ATX Switching Power Supply 100-240V Desktop PC A 145W switching power supply for legacy desktop PC systems. Provides regulated DC voltages across multiple rails and...
19250
SKU:
19250
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Power Tronic
Model:
WK-6145DL3
MPN:
WK-6145DL3
SKU:
19250
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no additional accessories included.
Form Factor:
AT/ATX Desktop
Power Output:
145W Max
Power Requirements:
AC 100-120V / 200-240V, 4.2A / 2.3A, 47-63Hz
DC Output Voltages:
+3.3V, +5V, +12V, -5V, -12V, +5VSB
Voltage Selection:
Manual selection switch on metal case
Frequency:
47-63Hz
Cooling:
Single internal fan
Connector Type:
Molex 4-pin peripheral, ATX main connector
Compatible With:
Legacy desktop PC systems, AT/ATX form factor cases
Country of Manufacture:
Taiwan
Certifications:
UL, N (Nemko)
Condition Notes:
Power Tronic WK-6145DL3 145W ATX switching power supply. Tested and in good working order. Housing shows typical shelf wear; cables and connectors are intact. Please contact us with any questions.
