In Win Power Man IW-P250A2-0 250W ATX Power Supply P4 100-240V
The In Win Power Man IW-P250A2-0 is a 250W ATX desktop power supply built for P4-era desktop computers. It features universal AC input (100–120V / 200–240V, 50/60Hz), making it compatible with both North American and international voltage standards. The unit delivers multiple DC output rails to power motherboard, drives, and peripherals in a standard ATX desktop chassis.
Specifications & What's Included
- Brand: In Win / Power Man
- Model: IW-P250A2-0
- Form Factor: ATX
- Maximum Output Power: 250W

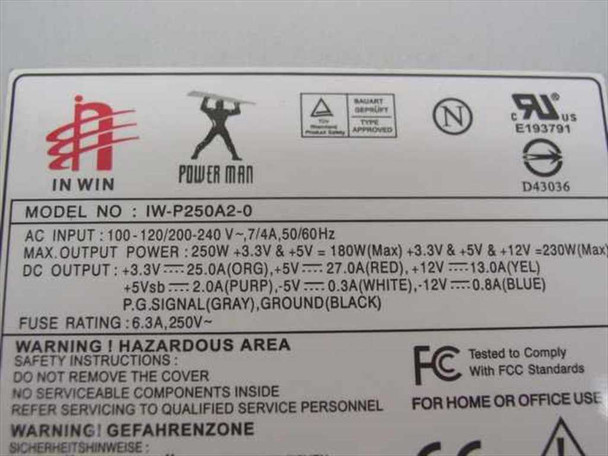

- AC Input: 100–120V / 200–240V AC, 7A / 4A, 50/60Hz
- DC Output +3.3V: 25.0A (Orange)
- DC Output +5V: 27.0A (Red)
- DC Output +12V: 13.0A (Yellow)
- DC Output +5Vsb (standby): 2.0A (Purple)
- DC Output -5V: 0.3A (White)
- DC Output -12V: 0.8A (Blue)
- PG Signal (Gray) and Ground (Black)
- Max combined output +3.3V & +5V: 180W
- Max combined output +3.3V, +5V & +12V: 230W
- Fuse Rating: 6.3A, 250V~

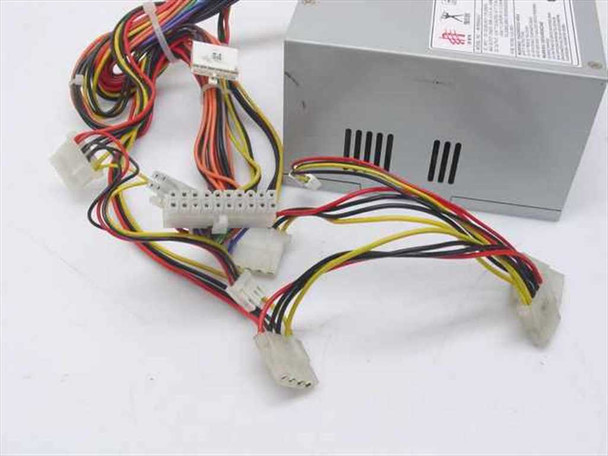

- Connectors: 20-pin ATX main, 4-pin P4 CPU, multiple 4-pin Molex peripheral, floppy power connector

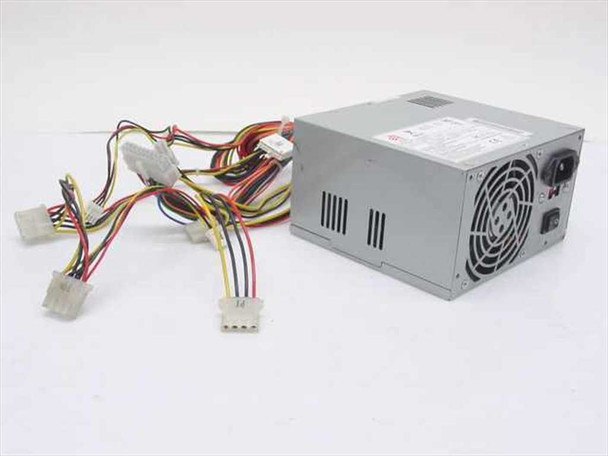

- Cooling: Single rear-mounted 80mm fan
- Certifications: FCC, UL (E193791), Bauart Gepruft (German TÜV)
- Non-modular — all cables are hardwired
Applications
The IW-P250A2-0 is a standard ATX power supply designed for P4 (Pentium 4) era desktop computers, typically from the early-to-mid 2000s. ATX power supplies of this type were the universal standard for desktop PCs throughout that decade, supplying regulated DC power to the motherboard, CPU, hard drives, optical drives, and expansion cards. The 20-pin ATX main connector and 4-pin P4 CPU connector were the standard interface for Intel Pentium 4 and compatible AMD Athlon/Sempron desktop platforms. Units like this remain in use today as direct replacements for aging desktop systems that still run on the ATX form factor, and are commonly sought for repair and refurbishment of P4-era machines. In Win (also marketed as Power Man) was a well-regarded Taiwanese OEM supplier whose PSUs shipped in many branded desktop systems of that period.
This In Win Power Man IW-P250A2-0 250W ATX Power Supply has been bench-tested at our facility and is in good working condition. The unit is clean overall with light surface wear typical of a used power supply. All output connector leads are intact and in good shape. Please review our photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
In Win |
Model: |
IW-P250A2-0 |
MPN: |
IW-P250A2-0 |
Type: |
ATX Power Supply |
SKU: |
25753 |
Maximum Output Power: |
250W |
Form Factor: |
ATX |
AC Input Voltage: |
100-120V / 200-240V AC |
Input Current: |
7A / 4A |
Input Frequency: |
50/60Hz |
DC Output +3.3V: |
25.0A (ORG) |
DC Output +5V: |
27.0A (RED) |
DC Output +12V: |
13.0A (YEL) |
DC Output -5V: |
0.3A (WHITE) |
DC Output -12V: |
0.8A (BLUE) |
DC Output +5Vsb: |
2.0A (PURP) |
Max Combined Output +3.3V & +5V: |
180W |
Max Combined Output +3.3V, +5V & +12V: |
230W |
Fuse Rating: |
6.3A, 250V~ |
Modular: |
No |
Compatible With: |
P4 ATX desktop systems |
Certifications: |
FCC, UL (E193791), Bauart Gepruft |
Country/Region of Manufacture: |
Taiwan |
Connector Types: |
20-pin ATX main, 4-pin P4, 4-pin Molex, floppy |
Cooling: |
Single rear-mounted 80mm fan |
Condition Notes: |
This In Win Power Man IW-P250A2-0 250W ATX power supply has been bench-tested at our facility and is in good working condition. Light surface wear typical of use. All connectors intact. |
