Description
Power Man HP-230-ATX 230W ATX Desktop Power Supply 115V/230V w/ External Fan
This is a 230W ATX desktop power supply manufactured by Power Man. It converts AC input (115V or 230V) to regulated DC outputs for ATX-compatible computers and is equipped with an external 80mm cooling fan.
Specifications & What's Included

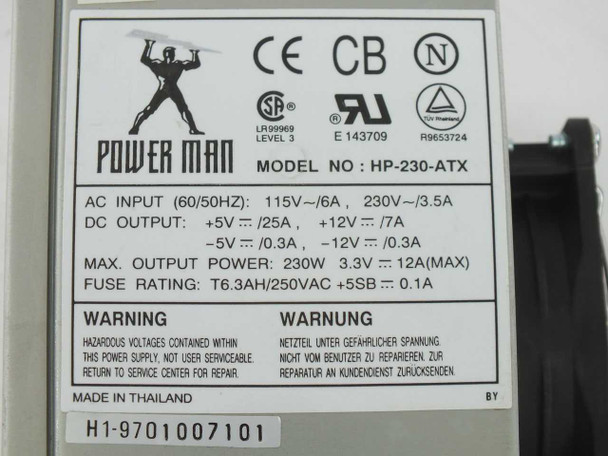

- Model: HP-230-ATX (REV:02)
- Power Output: 230W maximum
- AC Input: 115V~/6A or 230V~/3.5A, 50/60Hz
- DC Rails: +5V/25A, +12V/7A, +3.3V/12A, -5V/0.3A, -12V/0.3A, +5SB/0.1A
- Connectors: ATX 20-pin main, Molex 4-pin, floppy
- Cooling: External top-mounted 80mm fan
- Features: Rear rocker power switch
- Certifications: CE, CB, CSA (LR99969 Level 3), UL (E143709)
- Full output harness included
Applications
ATX power supplies of this type are used in standard desktop computers and custom PC builds. The HP-230-ATX was commonly found in systems from the late 1990s and early 2000s. It supports legacy and mid-range ATX motherboards requiring 230W or less. The floppy connector indicates compatibility with systems of that era.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

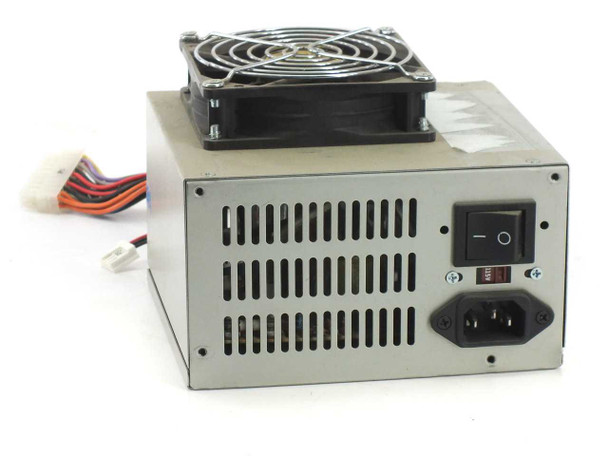

This Power Man HP-230-ATX 230W ATX Desktop Power Supply has been powered and tested at our facility and is confirmed to be in good working order. The unit is cosmetically consistent with normal use — the metal chassis shows light surface wear typical of a previously deployed desktop PSU. The top-mounted external fan, rear rocker switch, IEC AC inlet, and full output cable harness (including 20-pin ATX connector, Molex 4-pin, and floppy connectors) are all present and intact as shown in our photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Power Man |
Model: |
HP-230-ATX |
MPN: |
HP-230-ATX |
SKU: |
14079 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes attached output harness with Molex and floppy connectors |
Form Factor: |
ATX Desktop |
Power Output: |
230W Max |
AC Input Voltage: |
115V~/6A or 230V~/3.5A, 60/50Hz |
DC Output +5V: |
+5V / 25A |
DC Output +12V: |
+12V / 7A |
DC Output -5V: |
-5V / 0.3A |
DC Output -12V: |
-12V / 0.3A |
Max Output Power: |
230W; 3.3V rail 12A max |
Fuse Rating: |
T6.3AH/250VAC; +5SB 0.1A |
Cooling: |
External top-mounted 80mm fan |
Rear Power Switch: |
Yes – rocker on/off switch |
Connector Type: |
ATX 20-pin main, Molex 4-pin, floppy |
Board Revision: |

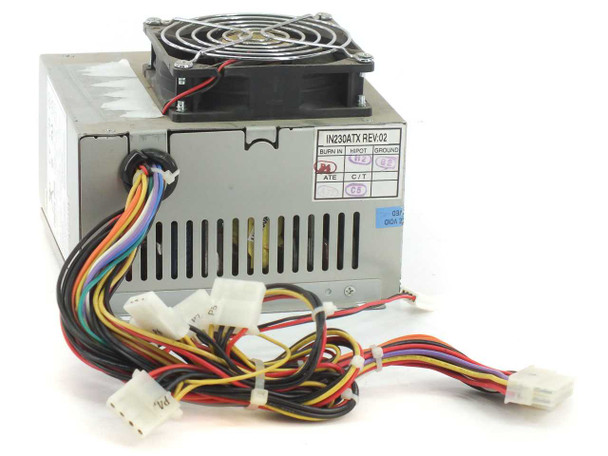

REV:02 (IN230ATX label visible) |
Certifications: |
CE, CB, CSA (LR99969 Level 3), UL (E143709) |
Country of Manufacture: |
Thailand |
Compatible With: |
ATX desktop computers and PC builds requiring ATX PSU |
Condition Notes: |
This Power Man HP-230-ATX 230W ATX power supply has been tested and confirmed in working order. Chassis shows normal light wear. Full output harness included. Please contact us with any questions. |
