Description
Power Man FSP300-60BTV 300W ATX Desktop Power Supply 115/230V FSP
The Power Man FSP300-60BTV is a 300W ATX form-factor desktop computer power supply manufactured by FSP Group. It accepts both 115V and 230V AC input, making it compatible with systems in North America and internationally. The unit outputs the standard ATX voltage rails — +3.3V, +5V, and +12V — along with +5Vsb, -5V, and -12V rails to power all major desktop PC components.
Specifications & What's Included
- Model: FSP300-60BTV
- Manufacturer: FSP Group (Power Man brand)
- Max Output Power: 300W (combined +3.3V & +5V: 200W max)

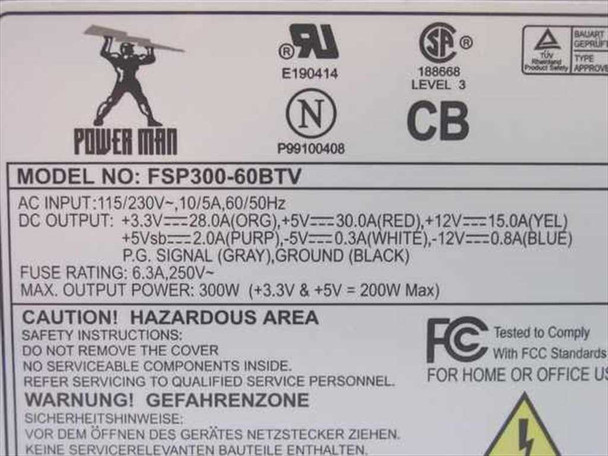

- AC Input: 115/230V~, 10/5A, 60/50Hz
- DC Output +3.3V: 28.0A
- DC Output +5V: 30.0A
- DC Output +12V: 15.0A
- DC Output +5Vsb: 2.0A
- DC Output -5V: 0.3A
- DC Output -12V: 0.8A
- Fuse Rating: 6.3A, 250V~
- Form Factor: ATX
- Cooling: 80mm rear-mounted fan
- Main connector: 20-pin ATX
- Peripheral connectors: 4-pin Molex (×4), Floppy/Berg connector
- Certifications: UL, CSA, CB, FCC
- Modular: No — hardwired cable harness
- Includes: power supply unit with all attached output cables
Applications
ATX power supplies like the FSP300-60BTV are the standard internal power source for desktop personal computers, converting AC mains power to the regulated DC voltages that the motherboard, processor, drives, and expansion cards require. FSP Group is a major OEM supplier that manufactured power supplies under the Power Man brand for desktop system builders and integrators throughout the late 1990s and 2000s. A 300W unit like this is appropriate for mid-range desktops of that era — systems based on Intel Pentium III/4 or AMD Athlon/Duron platforms — and remains a direct fit for any standard ATX chassis today. The dual-voltage input (115/230V) makes it usable in both domestic and international AC environments without a separate transformer. It is commonly sought as a replacement PSU for older ATX desktops, retro PC builds, and legacy system maintenance.
This Power Man FSP300-60BTV 300W ATX desktop power supply has been bench-tested at our facility and is in good working condition. The unit is clean overall with light surface wear typical of a previously-used desktop PSU — no dents, no damage to the chassis. All output cables are present and in good condition, including the 20-pin ATX main connector, four 4-pin Molex peripheral connectors, and a floppy/Berg connector. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Power Man |
Model: |
FSP300-60BTV |
MPN: |
FSP300-60BTV |
Type: |
ATX Desktop Power Supply |
SKU: |
16974 |
Seller Notes: |
Includes all original output cables. No mounting screws included. |
Form Factor: |
ATX |
Maximum Power Output: |
300W |
AC Input Voltage: |
115/230V AC, 10/5A, 60/50Hz |
DC Output +3.3V: |
28.0A |
DC Output +5V: |
30.0A |
DC Output +12V: |
15.0A |
DC Output +5Vsb: |
2.0A |
DC Output -5V: |
0.3A |
DC Output -12V: |
0.8A |
Combined +3.3V & +5V Max: |
200W |
Fuse Rating: |
6.3A, 250V |
Main Connector: |
20-pin ATX |
Peripheral Connectors: |
4-pin Molex x4, Floppy/Berg connector |
Cooling: |
80mm rear-mounted fan |
Certifications: |
UL, CSA, CB, FCC |
Modular: |
No |
Manufacturer: |
FSP Group |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
This Power Man FSP300-60BTV 300W ATX desktop power supply has been bench-tested and is in good working condition. Light surface wear typical of use; all output cables included. Please contact us with any questions. |
