Description

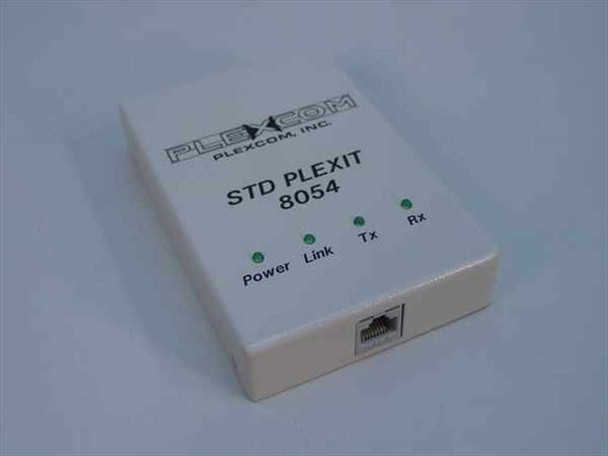

Plexcom STD Plexit 8054 10Base-T Ethernet Transceiver AUI DB15 RJ45
This is a 10Base-T Ethernet transceiver (MAU) that bridges AUI and 10Base-T connections. It converts signals between the DB15 AUI interface and RJ45 10Base-T cabling.
Specifications & What's Included
- Data Rate: 10 Mbps (IEEE 802.3)
- Interfaces: AUI DB15 (female) and RJ45
- Power: 11–16Vdc, 500mA maximum

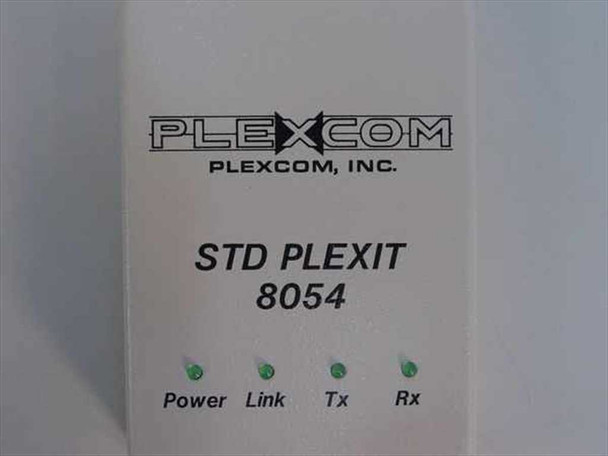

- LED indicators: Power, Link, Tx, Rx

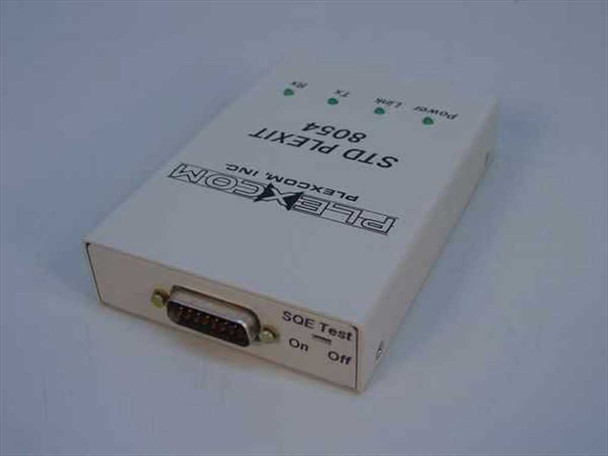

- SQE Test Switch (On/Off)
- Form Factor: External Desktop / Standalone
- Manufactured in Simi Valley, CA
- Unit only; power supply and cables not included
Applications
10Base-T transceivers were commonly used to connect legacy AUI-equipped network cards and devices to twisted-pair Ethernet segments. These units appeared in industrial control systems, telecom equipment, and early LAN setups where AUI was the primary interface standard. Typical installations included workstations, terminals, and network hubs requiring conversion between thick or thin Coax backbone and structured cabling.
Condition: Used

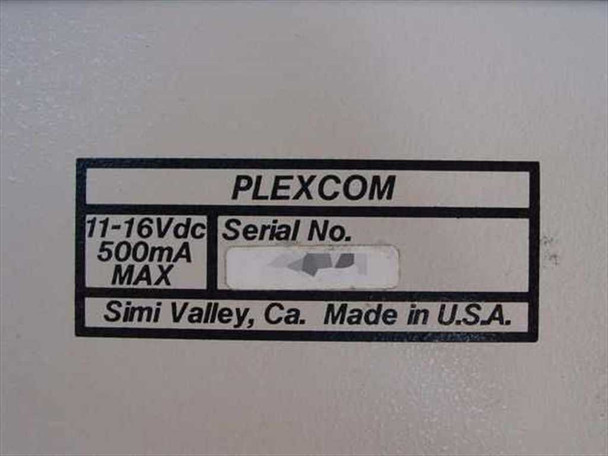

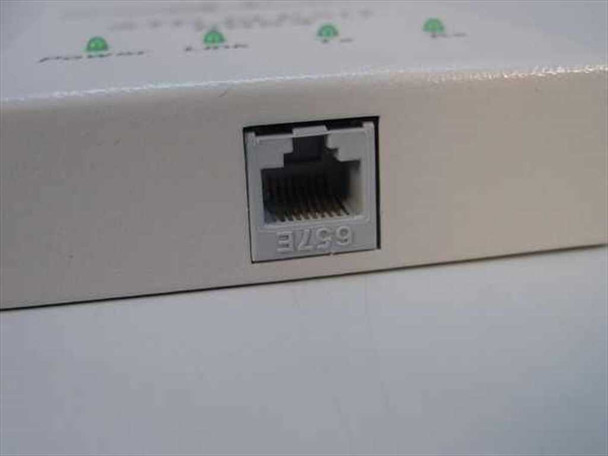

This Plexcom STD Plexit 8054 10Base-T Ethernet transceiver has been visually inspected and appears to be in good used condition. The housing is clean and shows only minor shelf wear typical of stored surplus equipment. All four LED indicators (Power, Link, Tx, Rx) are present, the RJ45 front port and DB15 AUI rear connector look undamaged, and the SQE Test switch moves freely. The bottom label is intact and legible. This unit has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Plexcom STD Plexit 8054 10Base-T Ethernet transceiver has been visually inspected and appears to be in good used condition. The housing is clean and shows only minor shelf wear typical of stored surplus equipment. All four LED indicators (Power, Link, Tx, Rx) are present, the RJ45 front port and DB15 AUI rear connector look undamaged, and the SQE Test switch moves freely. The bottom label is intact and legible. This unit has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Plexcom |
Model: |
STD Plexit 8054 |
MPN: |
8054 |
Type: |
10Base-T Ethernet Transceiver (MAU) |
SKU: |
14771 |
Condition: |
Used – Inspected |
Interface Type: |
AUI (DB15) and 10Base-T (RJ45) |
Network Standard: |
10Base-T Ethernet (IEEE 802.3) |
Data Rate: |
10 Mbps |
Connector Type: |
DB15 AUI (female), RJ45 |
Power Requirements: |
11-16Vdc, 500mA MAX |
LED Indicators: |
Power, Link, Tx, Rx |
SQE Test Switch: |
On/Off (visible on rear panel) |
Form Factor: |
External Desktop / Standalone |
Country/Region of Manufacture: |
United States (Simi Valley, CA) |
Seller Notes: |
Unit only — no power supply or cables included. |
Condition Notes: |
Plexcom STD Plexit 8054 10Base-T Ethernet transceiver. Visually inspected; clean housing with minor shelf wear. RJ45 and DB15 AUI connectors appear undamaged. Not bench-tested. Please contact us with questions. |
