Plastic Mobile 6-Section Acid Mix Bath on Wheels 27.5x15x18 HCL Lab

Plastic Mobile 6-Section Acid Mix Bath on Wheels 27.5x15x18 HCL Lab

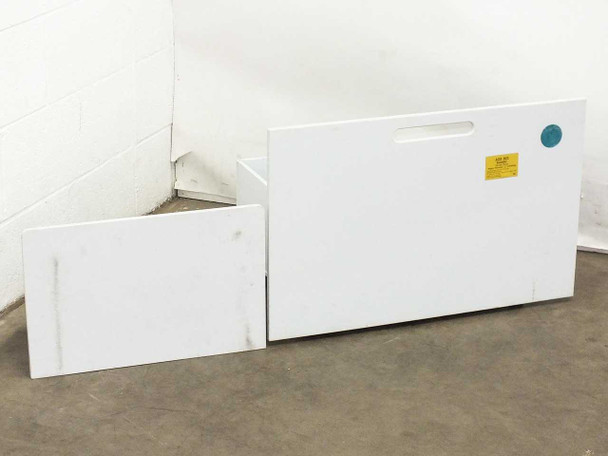

This is a custom-fabricated plastic mobile acid mix bath built on a four-caster wheel base for easy repositioning within a lab or cleanroom environment. The bath body is divided into six individual compartments with a removable flat panel lid that fits over the top. The unit is labeled for use with HCL (hydrochloric acid) per the yellow warning placard affixed to the lid. No manufacturer name is marked on the unit — it appears to be a purpose-built custom item.

Specifications & What's Included

• Overall dimensions: 27.5"L x 15"W x 18"H
• Total bath interior dimensions: 22.5"L x 14.5"W x 8"D
• Individual section dimensions: 7"L x 7"W x 7.5"D (qty: 6 sections)

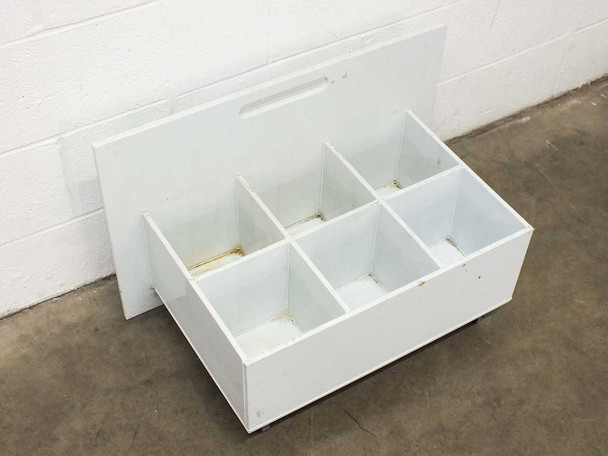

• Number of sections: 6, arranged in a 2-row grid
• Construction: white plastic / chemical-resistant coated material

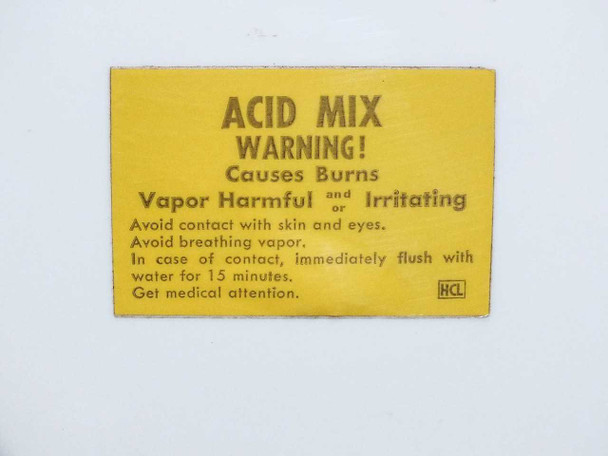

• Chemical compatibility: HCL (hydrochloric acid) per warning label

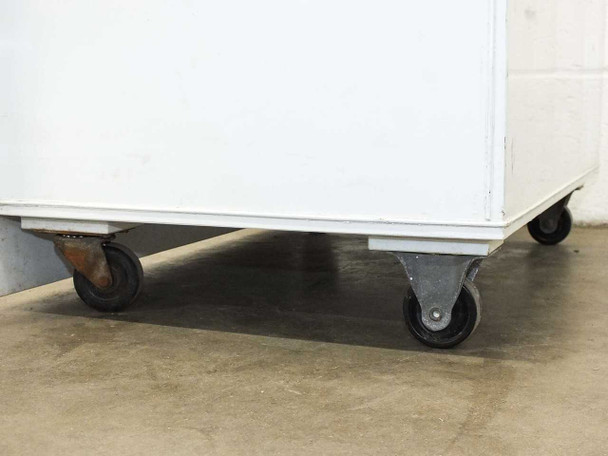

• Mobility: 4 swivel caster wheels mounted to base frame
• Lid: removable flat panel with integrated handle cutout
• Includes: bath unit on casters and removable lid panel

Applications

Multi-section acid baths like this are standard equipment in semiconductor fabrication, PCB manufacturing, and general wet chemistry labs. They are used to hold chemical solutions — acids, bases, or solvents — during sequential cleaning, etching, or rinsing processes where parts or substrates move through multiple chemical steps. The six-section layout allows different solutions to occupy separate compartments simultaneously, supporting a sequential wet process line in a compact, portable form. The caster wheel base makes the unit easy to reposition on a lab floor or move between workstations. This type of equipment is commonly found in semiconductor wet benches, photolithography support areas, electroplating shops, and research chemistry labs where HCL and similar acids are handled regularly.
