Pioneer PL-4 Direct Drive Auto-Return Turntable 33/45 RPM Ortofon For Parts

Pioneer PL-4 Direct Drive Auto-Return Turntable 33/45 RPM Ortofon For Parts

The Pioneer PL-4 is a direct drive, auto-return stereo turntable manufactured by Pioneer Electronic Corp. in Japan. It operates on AC 120V/60Hz and draws 9 watts. This unit powers on and produces no audible hum, and the tonearm moves freely and smoothly — however, the platter does not maintain correct speed and the mechanism locks up intermittently, making it non-functional for normal playback. It is being sold strictly as-is for parts or repair.

Specifications & What's Included

• Model: Pioneer PL-4 (PAL-419-0)
• Type: Direct Drive Stereo Turntable with Auto-Return
• Power: AC 120V, 60Hz, 9W
• Country of Manufacture: Japan

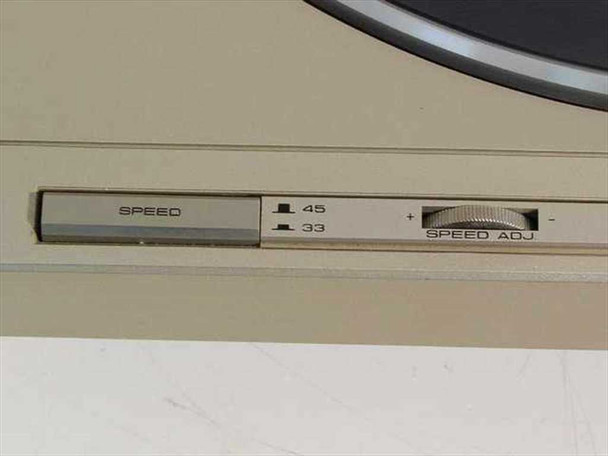

• Speeds: 33 and 45 RPM (switchable via front panel)
• Speed adjustment: front-panel SPEED ADJ knob (+/-)
• Speed verification: built-in strobe indicator (50/60Hz reference marks for both 33 and 45 RPM)

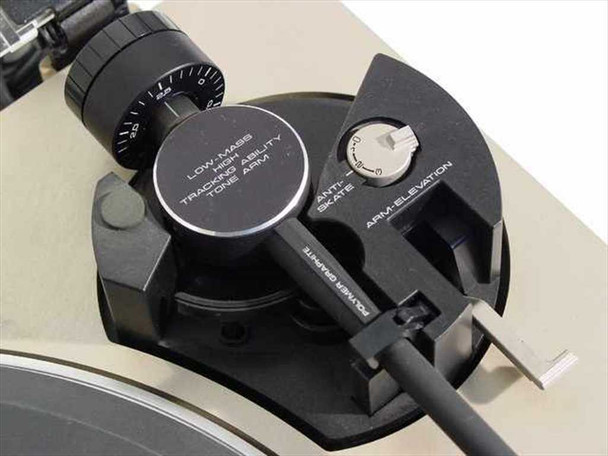

• Tonearm: low-mass, high-tracking-ability design with anti-skate adjustment and arm elevation control
• Cartridge installed: Ortofon VMS 5E Mk II phono cartridge with stylus
• Output: RCA stereo cables attached at rear
• Dust cover: present and intact
• Known faults: platter does not spin at correct speeds; mechanism locks up intermittently

Applications

The Pioneer PL-4 was introduced in the late 1970s as a mid-range consumer direct drive turntable, a technology Pioneer helped pioneer (alongside companies like Technics/Matsushita) as an alternative to belt-drive designs. Direct drive motors spin the platter directly from a servo-controlled motor, eliminating the belt as a wear item and providing more stable speed regulation — a key selling point of the era. The PL-4 was part of a broad family of Pioneer auto-return tables targeting the home hi-fi market. Today, units like this are sought by vintage audio hobbyists for restoration, tonearm harvesting, or replacement of servo control boards and motor driver circuits — the most common failure modes on these 1970s–1980s direct drive designs. The Ortofon VMS 5E Mk II cartridge installed on this unit is itself a collectible moving-magnet cartridge from the same era and may have value independently to cartridge collectors or as a replacement.
