Description
PictureTel System S2000 Venue 2000 Video Conferencing Computer ISDN
Desktop video conferencing codec designed for ISDN-based videoconferencing systems. This unit serves as the processing and control center for point-to-point or small group video communications over ISDN networks.
Specifications & What's Included
- Model: PictureTel System S2000 (Venue 2000 line)
- Network: ISDN connectivity

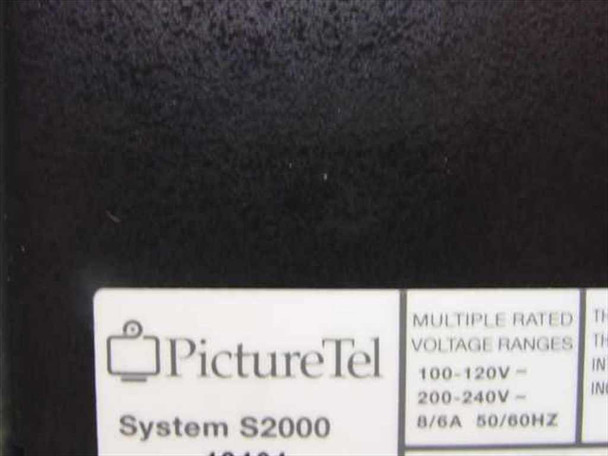

- Power: 100-120V / 200-240V, 8/6A, 50/60Hz (auto-switching)
- Video: S-Video (4-pin DIN) and composite RCA connectors
- Audio: RCA inputs and outputs

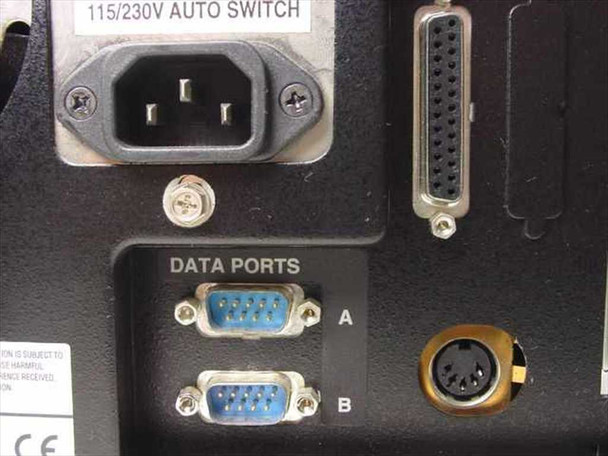

- Serial: 2x DB9 ports (Port A, Port B)
- Additional: DB25 parallel port, 4-pin DIN peripheral connector, front-accessible drive bay
- Unit only; no accessories included
Applications
The S2000 was used for remote videoconferencing in corporate, medical, and government settings during the ISDN era. It connects to compatible PictureTel endpoints and systems for real-time video and audio communication. Typical setups involved connection to external ISDN terminal adapters, monitors, cameras, and audio equipment. This equipment is now obsolete as networks have transitioned to broadband and IP-based video solutions.

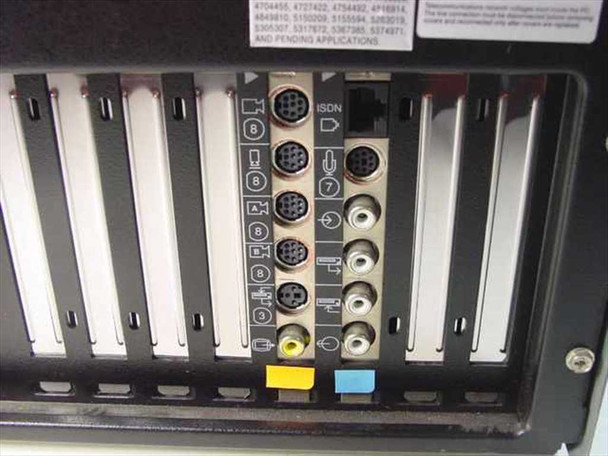

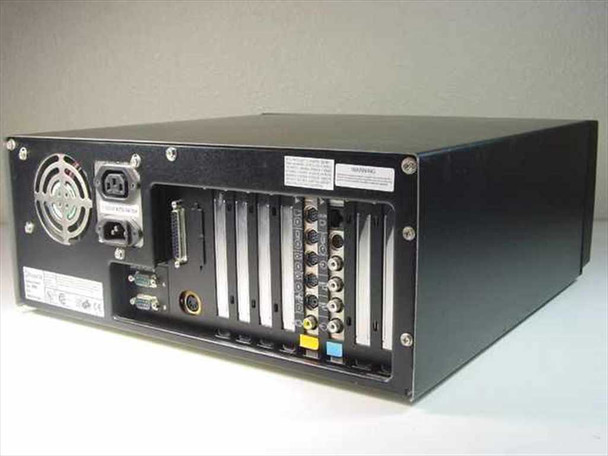

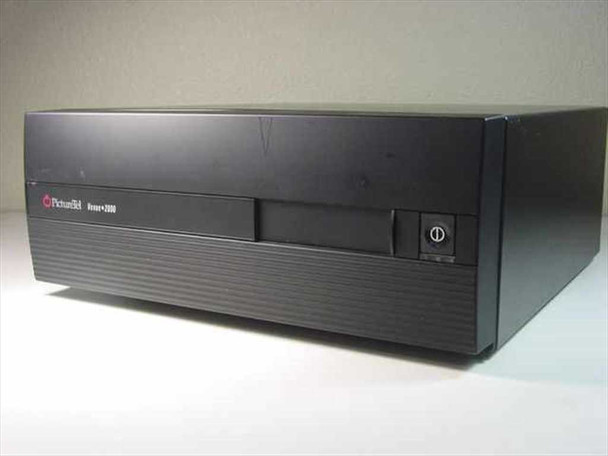

This PictureTel System S2000 Venue 2000 video conferencing computer has been inspected and appears to be in good condition. The chassis is intact and shows normal cosmetic wear consistent with previous office use. The front panel, drive bay door, and power button are all present. The rear I/O panel — including the ISDN port, S-Video connectors, RCA audio/video ports, and dual DB9 data ports — appears undamaged and complete. No accessories are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
PictureTel |
Model: |
System S2000 |
MPN: |
S2000 |
Type: |
Video Conferencing Computer / Codec |
Product Line: |
Venue 2000 |
SKU: |
30549 |
Condition: |
Used – Inspected |
Power Requirements: |
100-120V / 200-240V, 8/6A, 50/60Hz (Auto-Switch) |
Form Factor: |
Desktop / Set-Top |
Network Interface: |
ISDN |
Data Ports: |
2x DB9 Serial (Port A, Port B) |
Video Connectors: |
Multiple S-Video (4-pin DIN) and composite RCA |
Audio Connectors: |
RCA audio inputs and outputs |
Additional Ports: |
DB25 parallel port, 4-pin DIN (keyboard/peripheral) |
Drive Bay: |

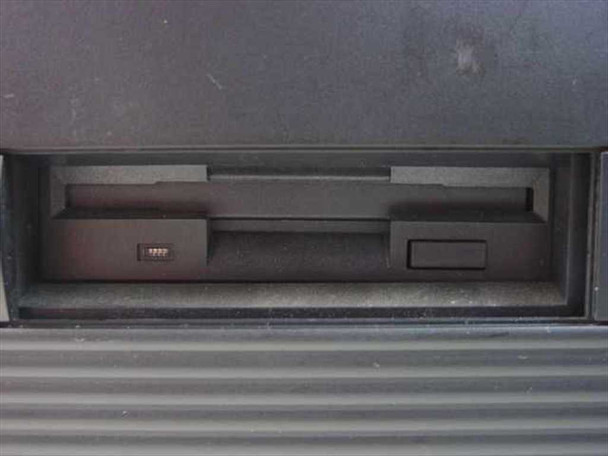

Front-accessible drive bay (floppy/media drive) |
Expansion Slots: |
Multiple internal expansion slots (visible rear) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; no accessories included. Inspected, good condition. |
Condition Notes: |
PictureTel System S2000 Venue 2000 video conferencing computer. Inspected and in good condition. Normal cosmetic wear; chassis, I/O ports, and front panel intact. No accessories included. |
