Description
Photosonic T20083HY-11 Ultrasonic Tank Cleaning System 110/120V G-6A Generator

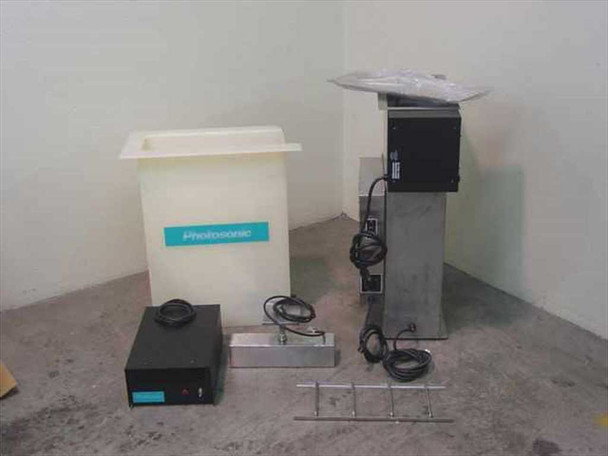

The Photosonic T20083HY-11 is a large-capacity industrial ultrasonic tank cleaning system designed for parts cleaning, degreasing, and surface preparation. The system uses high-frequency ultrasonic energy — delivered through two transducers — to agitate cleaning solution and dislodge contaminants from parts immersed in the tank. A built-in heater assists with cleaning effectiveness. The system includes two separate tanks (stainless steel and plastic) and a standalone G-6A ultrasonic generator unit.
Specifications & What's Included
- Model: T20083HY-11
- Generator Model: G-6A (Photosonic)
- Voltage: 110/120V AC
- Frequency: 50/60Hz

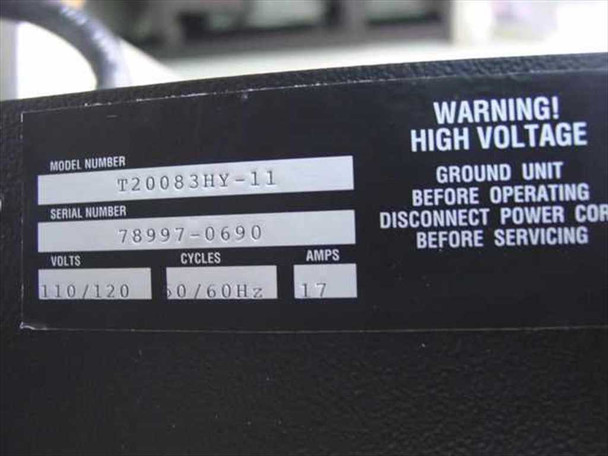

- Amperage: 17A (main T20083HY-11 unit); 3.5A (G-6A generator)
- Transducers: 2 — one bottom-mounted under the stainless tank, one immersible drop-in unit
- Heater: Built-in, with dedicated HEAT switch and indicator light on stainless tank unit

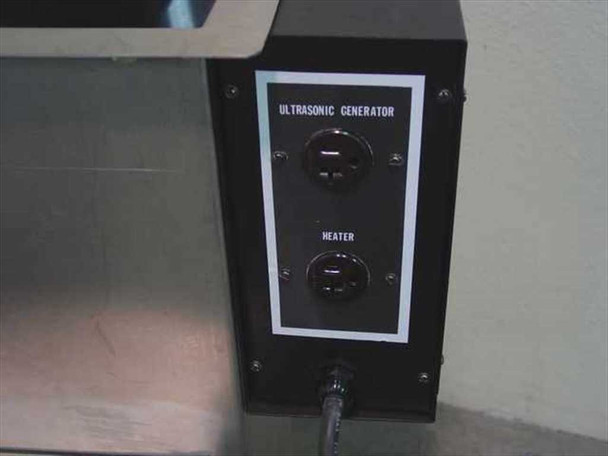

- Controls: Main Power switch + indicator, Ultrasonic Clean switch + indicator (on generator side panel); Ultrasonic Generator and Heater outlet receptacles on tank panel
- Stainless Steel Tank Interior Dimensions: 8 × 20 × 30 inches
- Plastic Tank Interior Dimensions: 8 × 20 × 28 inches (crack at lip — see photos)
- Includes: G-6A generator unit, bottom-mounted transducer, immersible drop-in transducer with cable and bracket, stainless steel tank on stand, plastic tank, mounting rack/ladder hardware
Applications
Ultrasonic tank cleaning systems like the Photosonic T20083HY-11 are used in industrial, laboratory, and precision manufacturing settings where thorough, non-abrasive cleaning is needed. Common applications include cleaning machined metal parts, circuit boards, optical components, semiconductor tooling, medical instruments, and jewelry. The dual-transducer configuration — one fixed under the tank, one that can be submerged directly — gives flexibility for cleaning large batches or items that need targeted agitation. The built-in heater allows the cleaning solution to be brought to an optimal working temperature, which significantly improves cleaning performance for oils, flux residues, and particulate contamination. Systems of this type are standard in precision cleaning lines, semiconductor fabs, optics labs, and machine shops.
This Photosonic T20083HY-11 Ultrasonic Tank Cleaning System appears to be unused — it came out of its original box and shows no signs of prior use. We opened the box and powered up both ultrasonic units, which came on without issue. The stainless steel tank interior is clean with no residue or staining. The plastic tank has a break at the lip, which is visible in the photos. All components are present, including the G-6A generator, both transducers, and the mounting rack hardware. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Photosonic |
Model: |
T20083HY-11 |
MPN: |
T20083HY-11 |
Secondary Model: |
G-6A |
SKU: |
21611 |
Type: |
Ultrasonic Tank Cleaning System |
Voltage: |
110/120V AC |
Frequency: |
50/60Hz |
Amperage (Generator): |
3.5A (G-6A generator unit) |
Amperage (Main Unit): |
17A (T20083HY-11 main unit) |
Number of Transducers: |
2 (1 under-tank, 1 immersible drop-in) |
Heater: |
Built-in heater unit |
Tank Material 1: |
Stainless Steel |
Stainless Tank Interior Dimensions: |
8 x 20 x 30 inches (ID) |
Tank Material 2: |
Plastic |
Plastic Tank Interior Dimensions: |
8 x 20 x 28 inches (ID) |
Controls: |
Main Power switch, Ultrasonic Clean switch, Heat switch |
Seller Notes: |
Includes G-6A generator, 2 transducers, stainless tank, plastic tank (crack at lip), and mounting rack hardware |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Freestanding |
Condition Notes: |
Photosonic T20083HY-11 Ultrasonic Cleaning System appears unused. We opened the box and powered up both ultrasonic units — they came on without issue. Plastic tank has a crack at the lip (see photos). All components present. |
