Description
Photo-Sonics 35mm-4B Camera Power Supply 120V 60Hz 1Ph 1.18A Wiring ZG-180
This is a standalone power supply unit designed for the Photo-Sonics 4B 35mm high-speed film camera. It converts 120V AC single-phase input to the regulated power required by the camera system.
Specifications & What's Included
- Input: 120V AC, 60 Hz, Single Phase, 1.18A

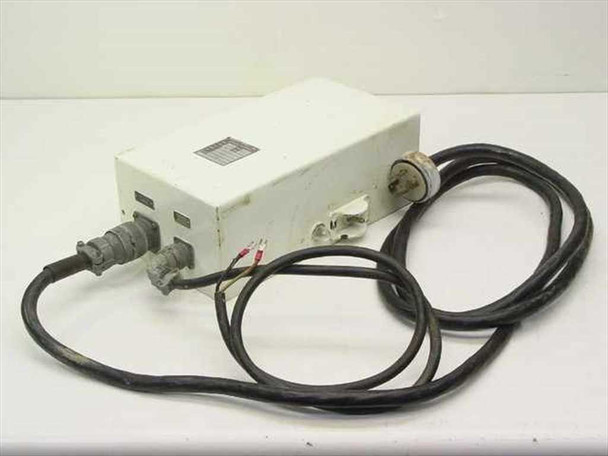

- Output: Military-style multi-pin circular connector with remote port capability
- Wiring diagram reference: ZG-180
- Manufactured in Burbank, California
- Includes attached power cable and output harness
Applications
Photo-Sonics high-speed 35mm film cameras were used extensively in aerospace, ballistics, and scientific research applications throughout the 1960s–1980s. This power supply is compatible with the 4B model and was typically deployed in laboratory, test range, and production environments where synchronized high-frame-rate film capture was required. The unit supports remote operation capability via its auxiliary port.
Condition: Used

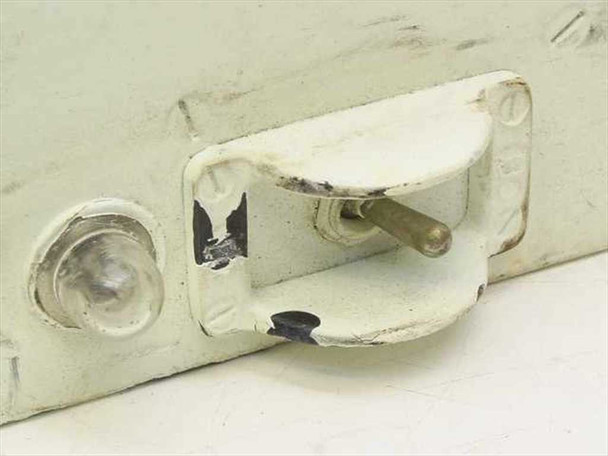

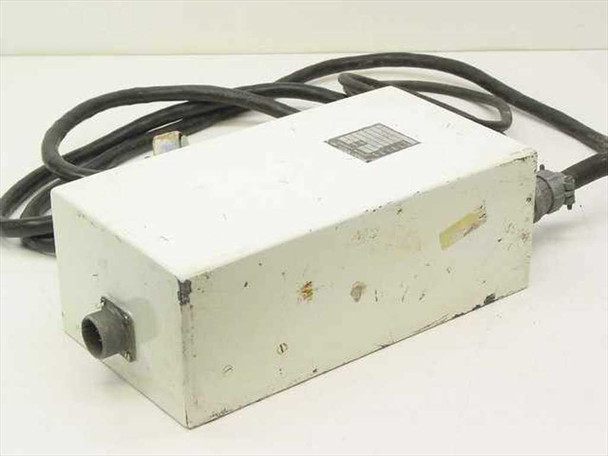

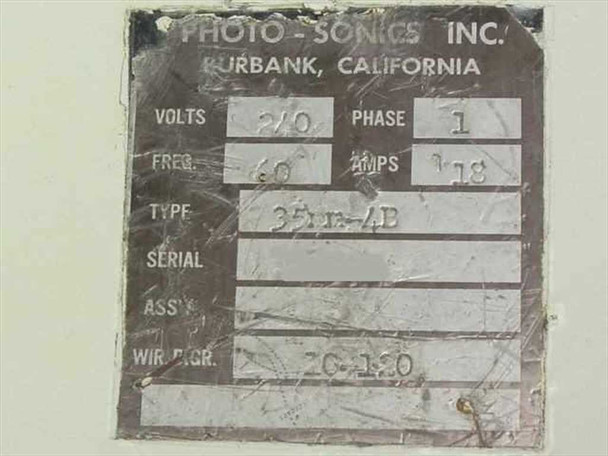

This Photo-Sonics 35mm-4B camera power supply has been inspected and appears to be in good used condition. The white metal enclosure shows surface wear, paint chipping at the corners and latch area, and some scuffing consistent with field use — typical for equipment of this type and era. The rating plate is present and legible. The military-style circular connectors and latch are intact, and all attached cabling is present. The unit has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
This Photo-Sonics 35mm-4B camera power supply has been inspected and appears to be in good used condition. The white metal enclosure shows surface wear, paint chipping at the corners and latch area, and some scuffing consistent with field use — typical for equipment of this type and era. The rating plate is present and legible. The military-style circular connectors and latch are intact, and all attached cabling is present. The unit has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Photo-Sonics |
Model: |
35mm-4B |
MPN: |
35mm-4B |
Type: |
Camera Power Supply |
SKU: |
35528 |
Condition: |
Used – Inspected |
Compatible With: |
Photo-Sonics 4B 35mm High Speed Film Camera |
Input Voltage: |
120V AC |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Amperage: |
1.18 A |
Wiring Diagram: |
ZG-180 |
Connector Type: |
Military-style circular connectors; Remote port |

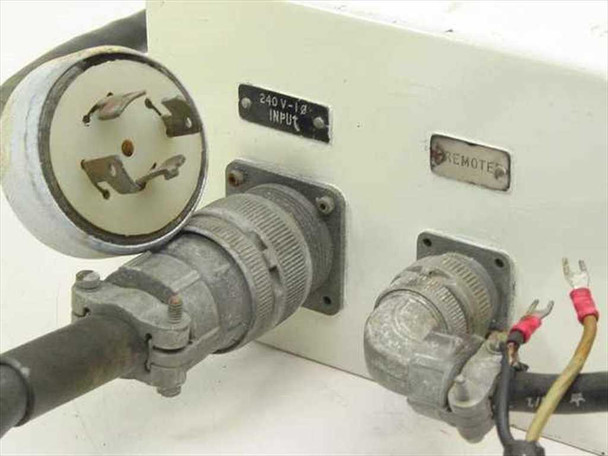

Input Connector: |
240V 1-phase locking circular input connector |
Output Connector: |
Military-style multi-pin circular connector |
Form Factor: |
Standalone Box / Portable |
Country/Region of Manufacture: |
United States (Burbank, California) |
Seller Notes: |
Includes attached power cable and output harness. No camera included. |
Condition Notes: |
Photo-Sonics 35mm-4B camera power supply. Inspected, appears in good used condition. Enclosure shows surface wear and paint chipping at corners/latch. Connectors and cabling intact. Not powered or tested at our facility. |
