Photo-Sonic Motorized Film Take-Up Unit 35mm 1000ft Magazine 4B 4C 4-Pin
This is a motorized film take-up unit made by Photo-Sonic, designed for use with their 4B and 4C series 35mm film magazines with a capacity of 1,000 feet. The unit consists of a compact electric motor housed in a cylindrical canister mounted to a flat angular body, with a drive spindle on the top surface and a 4-pin circular connector on an attached cable for power and control. It attaches to the camera magazine via two mounting brackets on the housing body.
Specifications & What's Included
- Brand: Photo-Sonic
- Compatible with: Photo-Sonic 4B and 4C magazine models
- Film format: 35mm
- Magazine capacity: 1,000 ft

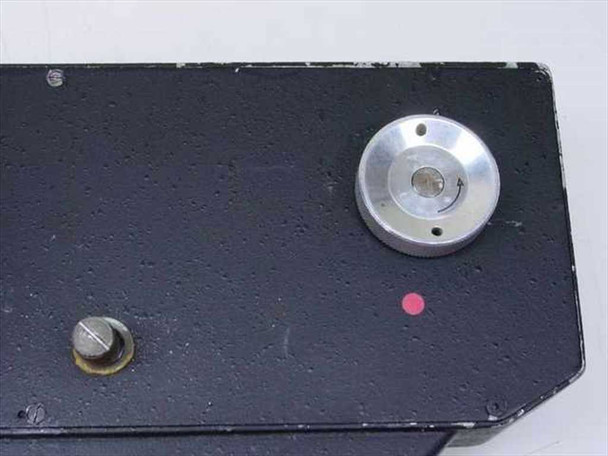

- Drive spindle: silver hub with center pin, visible on top of housing
- Connector: 4-pin circular male connector on attached cable
- Motor: cylindrical canister with threaded top cap and cable hose clamp

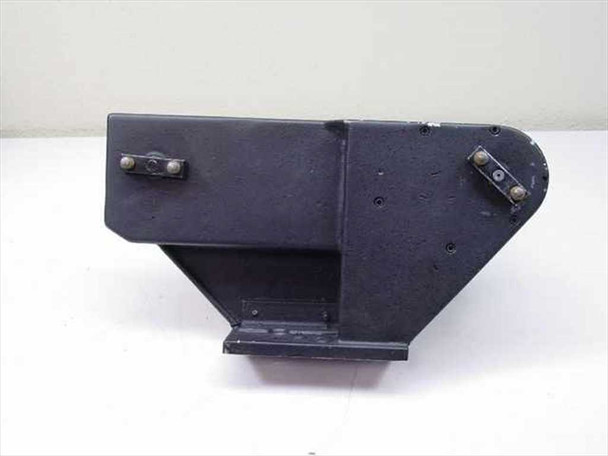

- Mounting: two bolt-on mounting brackets on housing body
- Includes: take-up unit with attached cable and 4-pin connector
- Magazine not included
Applications
Photo-Sonic was a U.S. manufacturer specializing in high-speed 16mm and 35mm motion picture cameras used in scientific, industrial, and military cinematography — particularly for ballistics testing, crash analysis, aerodynamics research, and other applications requiring frame rates far beyond standard cinema cameras. The motorized take-up unit is a key accessory for these cameras, driving the film through the magazine at the high speeds these cameras demand and ensuring consistent, reliable film transport during a run. The 4B and 4C designations refer to specific Photo-Sonic camera and magazine configurations widely used in government, aerospace, and research laboratory settings from the 1960s through the 1980s. These units remain relevant today wherever Photo-Sonic 4-series cameras are still maintained and operated, as well as among collectors and archivists working with this equipment.
This Photo-Sonic Motorized Film Take-Up Unit for 35mm x 1000ft magazines (compatible with 4B and 4C models) has been inspected and is in good used condition. The housing shows typical wear for its age — paint chips and surface marks are visible on the flat body and mounting brackets, and there is some surface wear on the motor canister. The drive spindle, 4-pin connector, and cable all appear intact. Please review our photos for a full look at the cosmetic condition, and contact us if you have any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Photo-Sonic |
Model: |
4B / 4C Motorized Film Take-Up Unit |
MPN: |
4B 4C |
Type: |
Motorized Film Take-Up Unit |
SKU: |
35809 |
Compatible With: |
Photo-Sonic 4B Magazine, Photo-Sonic 4C Magazine |
Film Format: |
35mm |
Magazine Capacity: |
1000 ft |
Connector Type: |
4-Pin Circular Connector |
Seller Notes: |
Take-up unit with attached 4-pin connector cable. No magazine included. |
Form Factor: |
Accessory / Modular Unit |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Photo-Sonic Motorized Film Take-Up Unit (4B/4C, 35mm x 1000ft) has been inspected and is in good used condition. Housing shows paint chips and surface wear; drive spindle, 4-pin connector, and cable are intact. |
