Philips LTC2813/60 13in Compact Color CRT CCTV Security Monitor Dual BNC

Philips LTC2813/60 13in Compact Color CRT CCTV Security Monitor Dual BNC

The Philips LTC2813/60 is a 13-inch compact color CRT monitor produced by Philips Communication & Security Systems Inc. specifically for CCTV and security surveillance applications. It features two independently switchable video inputs (A and B) selectable from the front panel, making it well suited for multi-camera or multi-source monitoring setups. Manufactured in February 2000, this unit runs on standard 120V AC power and carries full UL and FCC Class B certification.

Specifications & What's Included

• Brand: Philips Communication & Security Systems Inc.
• Model: LTC2813/60
• 12NC (secondary part number): 8960 281 36001
• Screen size: 13 inches (CRT color display)
• Display technology: CRT (Cathode Ray Tube), color

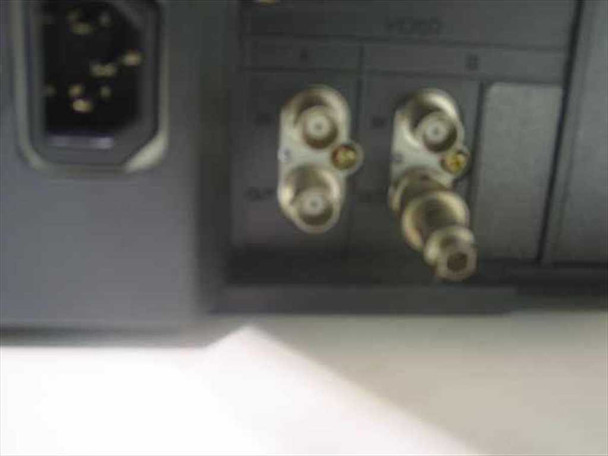

• Video inputs: 2x BNC pairs (Inputs A and B), with loop-through capability (4 BNC connectors total on rear panel)
• Input selection: Front-panel pushbuttons labeled A and B, each with green LED status indicator
• Power: 120V AC, 50/60Hz, 0.77A
• AC inlet: IEC C14 (standard IEC power connector)
• Chassis: TM32
• Date of manufacture: February 2000
• Country of manufacture: Thailand
• Certifications: UL Listed (File 2786, UL 1950, E3057C), FCC Class B, Canadian ICES-003
• Includes: Power cable

Applications

The LTC2813/60 belongs to Philips' LTC-series of purpose-built security and surveillance CRT monitors, designed for use in closed-circuit television (CCTV) installations, security control rooms, and broadcast/production monitoring environments. The dual BNC input configuration with A/B front-panel switching makes these monitors useful in setups where an operator needs to quickly compare feeds from two cameras or sources without additional switching hardware. Philips Communication & Security Systems was a well-regarded division producing professional security equipment through the 1990s and into the 2000s; the LTC series monitors were common in retail loss prevention, facility security, and broadcast support roles. CRT-based security monitors of this generation are still sought today for compatibility with legacy analog CCTV systems, signal generators, and retro video equipment that output composite or direct-drive video over BNC.
