Description
Philips VWI161/10 Vidiwall Processor Display Controller 4x4 BNC Lot of 2
This listing includes two Philips VWI161/10 Vidiwall Processor chassis, sold AS-IS for parts or salvage value. The VWI161/10 is a modular card-cage controller from Philips' Vidiwall system — a large-venue, multi-screen video display platform designed to drive arrays of rear-projection video cubes in configurations up to 4x4 (16 screens). Both units were manufactured in Holland and carry a 130W, 120V 60Hz rating per the labels. They power up and complete their system board self-tests, with the LED reading "High Resolution Vidiwall" at startup, but have not been tested beyond that. Neither chassis has a full set of expansion cards installed.
Specifications & What's Included
- Manufacturer: Philips, Made in Holland
- Model: VWI161/10

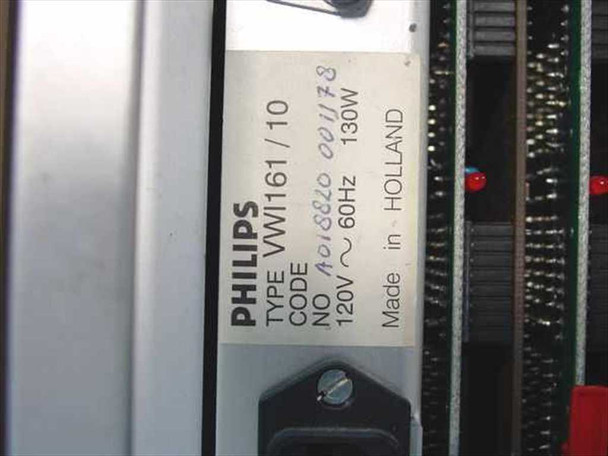

- Code (Unit 1): A018820 001178

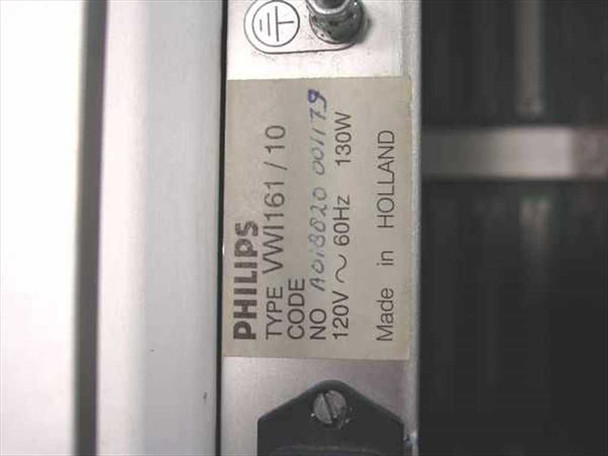

- Code (Unit 2): A018820 001179
- Power: 120V ~ 60Hz, 130W (per label)
- Display configuration: 4x4 capable (up to 16-screen Vidiwall array)
- Connectors: BNC video inputs, AT keyboard input
- Default baud rate: 9600 (adjustable)
- Form factor: desktop card-cage chassis with carry handles
- Cards: incomplete — neither unit has a full complement of expansion cards
- Quantity: 2 chassis
- Included: chassis only — no expansion cards (full set), no manual, no peripherals
Applications
The Philips Vidiwall system was a professional large-venue video wall platform widely used from the late 1980s through the 1990s in stadiums, arenas, broadcast studios, control rooms, and high-profile public display installations. The VWI161/10 processor served as the central controller, routing and scaling video signals across an array of rear-projection display cubes — typically in 2x2, 3x3, or 4x4 configurations. These systems were proprietary and modular, relying on specific Philips expansion cards for signal processing, synchronization, and screen driving. Today, complete Vidiwall systems are rare, and individual chassis and cards are sought by integrators maintaining legacy installations or by collectors of early professional video wall technology.

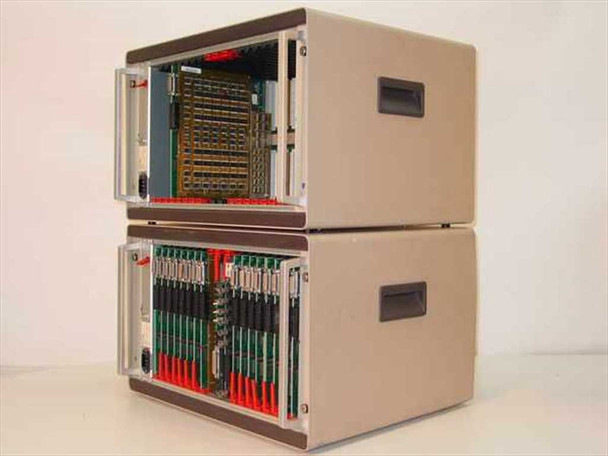

These Philips VWI161/10 Vidiwall Processor Display Controllers are being sold AS-IS for parts or salvage value. Both chassis power up and pass their system board self-tests — the LED display reads "High Resolution Vidiwall" at startup — but they have not been tested beyond that. Neither unit has a full complement of expansion cards installed, as visible in the photos. No manual or peripherals are included. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Philips |
Model: |
VWI161/10 |
MPN: |
VWI161/10 |
Type: |
Vidiwall Processor Display Controller |
SKU: |
17069 |
Seller Notes: |
Lot of 2 chassis — cards incomplete. No manual or peripherals included. |
Country/Region of Manufacture: |
Netherlands (Holland) |
Power Requirements: |
120V ~ 60Hz, 130W |
Form Factor: |
Desktop Chassis / Card Cage |
Interface Type: |
BNC, AT Keyboard |
Default Baud Rate: |
9600 (adjustable) |
Display Configuration: |
4x4 (16-screen capable) |
Quantity: |
2 |
Compatible With: |
Philips Vidiwall multi-screen display systems |
Condition Notes: |
Philips VWI161/10 Vidiwall Processor lot of 2 — sold AS-IS for parts. Both power up and pass system board self-tests only; not fully tested. Cards incomplete. No manual or peripherals included. |
