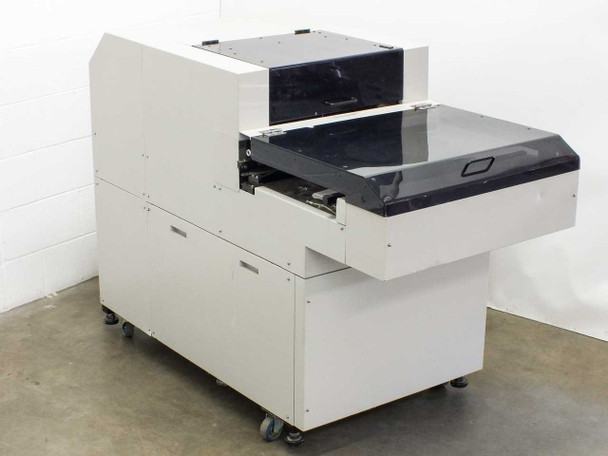

The Philips Assembleon PA269921 is a large component sequencer designed for automated SMT (surface-mount technology) and through-hole PCB assembly lines. Built under Philips' Assembleon division — one of the leading names in pick-and-place and PCB assembly machinery — this sequencer organizes and feeds large leaded or radial components to downstream insertion equipment in the correct sequence for board population. The unit carries ID number M20010 and was manufactured in Japan in February 1998.

Specifications & What's Included

• Manufacturer: Philips Assembleon (Made in Japan)
• Type: PA269921 — Large Component Sequencer
• ID Number: M20010
• NC Number: 946602699211

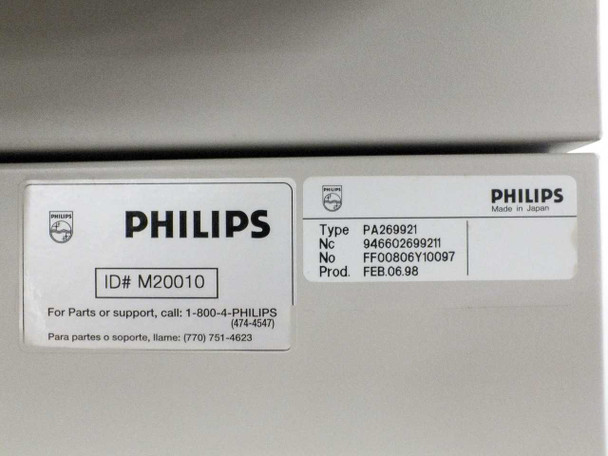

• Serial / No: FF00806Y10097
• Production Date: February 6, 1998
• Dimensions: 63" L x 30" W x 45" H (approximately)
• Two component magazines (Magazine 1 and Magazine 2), each with individual Open/Close toggle switches on the side panel
• Both magazine racks present with closely spaced parallel slotted component carriers installed
• Conveyor speed control: Panasonic rotary speed dial controller mounted inside top panel

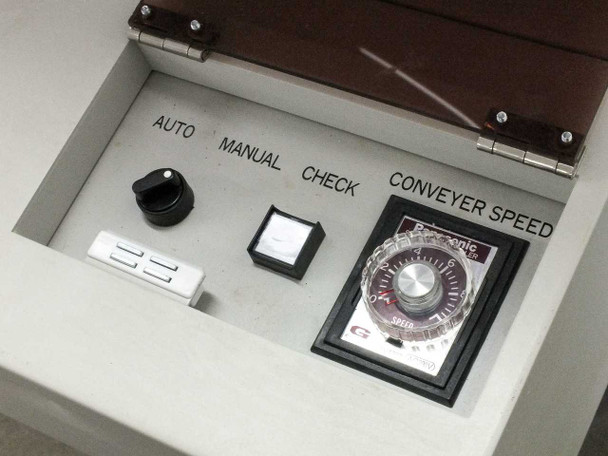

• Operating modes: AUTO, MANUAL, and CHECK — selectable via rotary knob and push-button on interior control panel
• Emergency Stop: red mushroom-head E-Stop button on the right side control panel
• Dual component transport rails with pneumatic actuator arms and orange air hoses visible internally

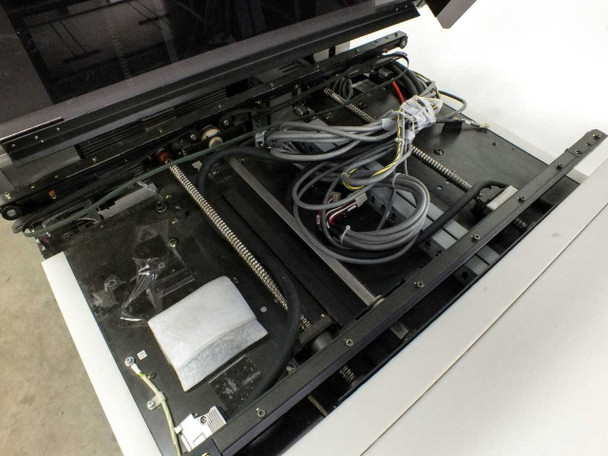

• Internal wiring harnesses, ribbon cables, and actuator mechanisms intact

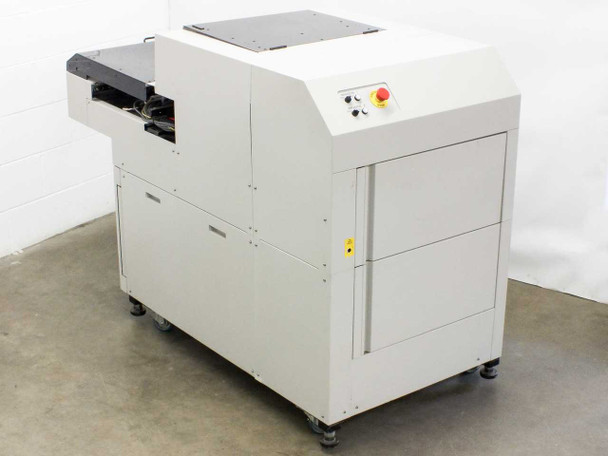

• Floor-standing form factor; mounted on casters (front) and adjustable leveling feet (rear)
• Yellow caution/warning label present on rear cabinet panel
