Description
Pfeiffer Balzers DUO 1.5A PKD40762A Rotary Vane Vacuum Pump 220V 1.5 m³/h 0.12kW
The Pfeiffer Balzers DUO 1.5A (part number PKD40762A) is a two-stage, oil-sealed rotary vane vacuum pump designed for fore-vacuum and roughing applications in laboratory and industrial settings. It uses an integrated magnetic coupling in place of a conventional radial shaft seal, creating a hermetic oil barrier that prevents leaks. The pump is driven by an AEG ADEB-63 motor and is built entirely without nonferrous metals.
Specifications & What's Included
- Manufacturer: Pfeiffer Balzers (now Pfeiffer Vacuum)
- Model: DUO 1.5A
- Part Number: PKD40762A / BK D40 762A
- Type: Two-stage oil-sealed rotary vane vacuum pump
- Pumping speed (volume flow rate): 1.5 m³/h
- Drive power: 0.12 kW
- Voltage: 220V, 50/60 Hz
- Pump rotational speed: 1620 RPM at 60 Hz
- Operating agent (pump oil): P3, fill volume 0.35 L
- Sealing: Integrated magnetic coupling — hermetic seal, no radial shaft seals
- Lubrication: Forced oil lubrication of bearings
- Hydraulic safety valve: Yes (overpressure protection)
- Construction: Free of nonferrous metals

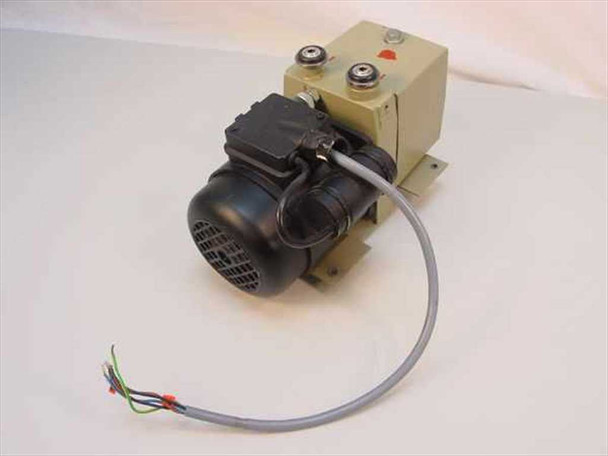

- Motor: AEG ADEB-63 K2 R3Q4 — 220V, 0.15 kW, 2790/3340 RPM (50/60 Hz), IP 44

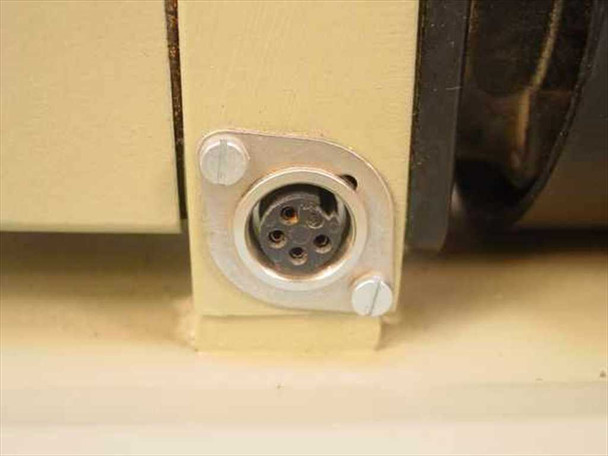

- Connector: 4-pin circular connector on side panel
- Mounting: Metal base plate (included)
- Country of manufacture: Germany
- Included: Pump on base plate only — no manual, oil, cables, or peripherals
Applications
The Pfeiffer Balzers DUO series is a line of compact two-stage rotary vane pumps widely used as roughing pumps and fore-vacuum pumps in scientific and industrial vacuum systems. They are standard equipment in a range of applications including thin-film deposition (PVD/CVD), vacuum furnaces, freeze dryers, mass spectrometers, electron microscopes, and general laboratory vacuum lines. The DUO 1.5A is one of the smaller models in the series, making it well-suited for benchtop systems and instruments that require a clean, low-vibration fore-vacuum source. Pfeiffer Balzers (now trading as Pfeiffer Vacuum) has manufactured the DUO series since the mid-20th century; the magnetic coupling design — which eliminates the conventional shaft seal and the oil leaks associated with it — became a distinguishing feature of the line. This unit's 220V / 50–60 Hz rating and AEG motor suggest manufacture in Germany for European or universal-voltage markets, consistent with Pfeiffer Balzers production from the 1980s through the 1990s.
This Pfeiffer Balzers DUO 1.5A Rotary Vane Vacuum Pump was removed from a working environment where it had been in active service. It has not been powered up or tested at our facility. Visually, the pump is in good condition overall — the housing shows minor scuffs and scrapes consistent with normal lab use, as visible in our photos. No manual or peripherals are included; the pump ships on its base plate only. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Pfeiffer Balzers |
Model: |
DUO 1.5A |
MPN: |
PKD40762A |
Secondary Model: |
BK D40 762A |
Type: |
Rotary Vane Vacuum Pump |
SKU: |
15461 |
Pumping Speed (Volume Flow Rate): |
1.5 m³/h (at 60 Hz) |
Ultimate Pressure: |
See manufacturer specifications for DUO 1.5A |
Drive Power: |
0.12 kW |
Voltage: |
220V |
Frequency: |
50/60 Hz |
Motor: |
AEG ADEB-63 K2 R3Q4, 0.15 kW, 2790/3340 RPM |
Motor Speed: |
2790 RPM (50 Hz) / 3340 RPM (60 Hz) |
Rotational Speed (Pump): |
1620 RPM at 60 Hz |
Sealing Method: |
Integrated magnetic coupling — hermetic seal |
Number of Stages: |
2 (Two-stage) |
Lubrication: |
Forced oil lubrication |
Connector Type: |
4-pin circular connector (side panel) |
Country/Region of Manufacture: |
Germany |
Form Factor: |
Benchtop / Base-mounted |
Seller Notes: |
Pump unit on base plate only — no manual, cables, or peripherals included. |
Condition Notes: |
Pfeiffer Balzers DUO 1.5A Rotary Vane Vacuum Pump pulled from a working environment; not tested at our facility. Shows minor scuffs and scrapes typical of normal use. No manual or peripherals included. Please view photos. |
