Peritak

Peritek PMF-Q 0048-00392 Rastergraf System Board Card Disk Write Protector

(No reviews yet) Write a Review
SKU:
48463
MPN:
PMF-Q
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

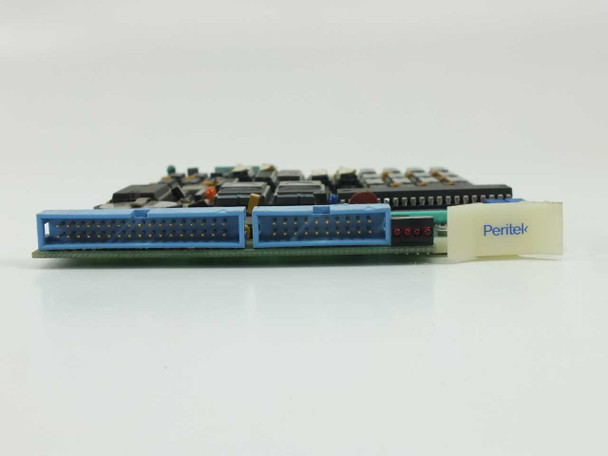

  • Peritek PMF-Q 0048-00392 system board card — side view showing dual 40-pin IDC connectors and Peritek label

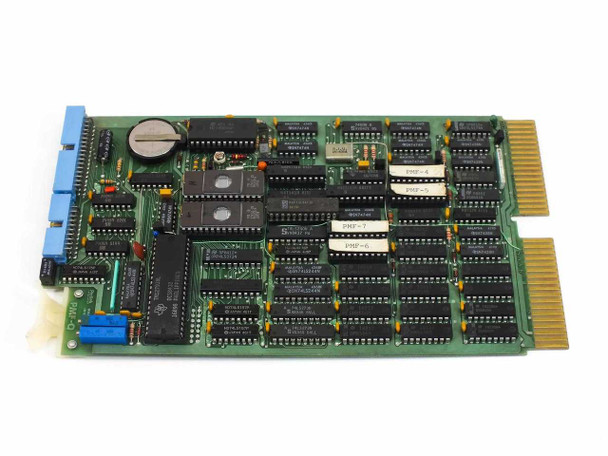

  • Peritek PMF-Q Rastergraf system board — top view showing main ICs, CMOS battery, and board layout

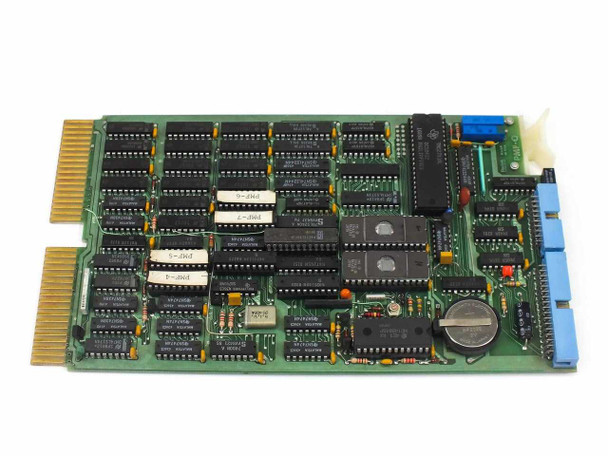

  • Peritek PMF-Q 0048-00392 — reverse top view showing additional ICs, DIP chips, and gold edge connectors

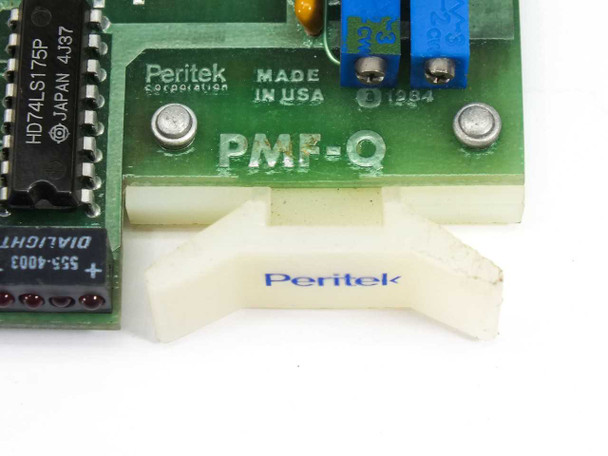

  • Peritek PMF-Q board close-up — label showing 'PMF-Q', 'Peritek Corporation', 'Made in USA', date code 4J37, and HD74LS175P IC

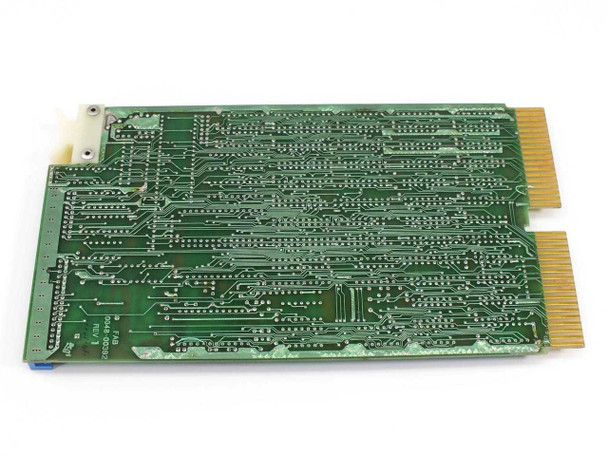

  • Peritek PMF-Q 0048-00392 — PCB solder side showing trace routing and dual gold-finger edge connectors

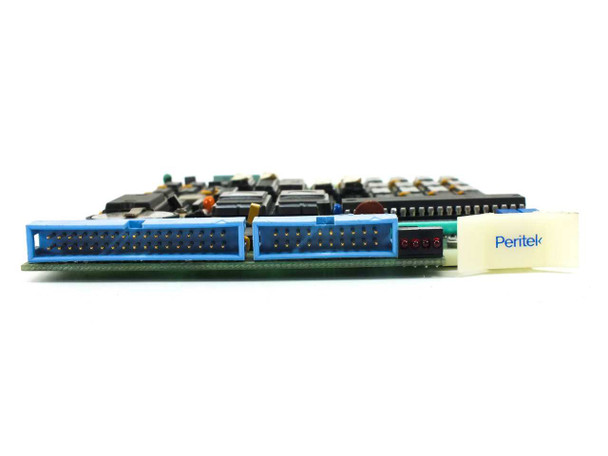

  • Peritek PMF-Q system board — second side view showing dual 40-pin IDC headers and Peritek label tag
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Peritek PMF-Q 0048-00392 Rastergraf System Board Card Disk Write Protector

Controller card for Peritek Disk Write Protector systems. This system board manages write protection and Rastergraf control functions within the disk protection assembly.

Specifications & What's Included

  • Brand: Peritek
  • Model: PMF-Q
  • MPN: 0048-00392
  • Interface: Dual 40-pin IDC header connectors
  • Form Factor: Card/Module
  • Manufactured: USA
  • Card only—pulled from working system

Applications

This card was used in Peritek Disk Write Protector systems to control write protection operations and manage Rastergraf functionality. These systems were deployed in industrial and telecom environments where data integrity on disk storage required hardware-level write protection. The board interfaces with dual 40-pin IDC connectors for integration within the protective enclosure.

Condition: Used
This Peritek PMF-Q Rastergraf System Board Card (0048-00392) has been inspected and is in good condition. It was pulled from a Peritek Disk Write Protector system. The board shows normal wear consistent with prior use — light dust and minor handling marks — but no visible damage to the PCB, traces, connectors, or components. Both gold-finger edge connectors and the dual IDC headers appear clean and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Peritek
Model:
PMF-Q
MPN:
0048-00392
Secondary Model:
Rastergraf
Type:
System Board / Controller Card
SKU:
48463
Seller Notes:
Pulled from a Peritek Disk Write Protector system. Card only.
Country/Region of Manufacture:
USA
Form Factor:
Card / Module
Compatible With:
Peritek Disk Write Protector System
Condition:
Used – Pulled from Working Environment
Interface Type:
Dual 40-pin IDC header connectors
Application:
Disk Write Protection / Rastergraf System Control
Condition Notes:
Peritek PMF-Q 0048-00392 Rastergraf system board card. Inspected and in good condition. Pulled from a Peritek Disk Write Protector system. Normal wear; PCB, connectors, and components appear intact.
View AllClose

Related Products

Related Products

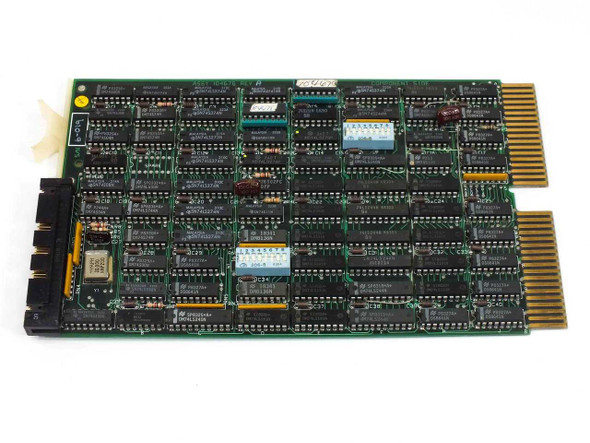

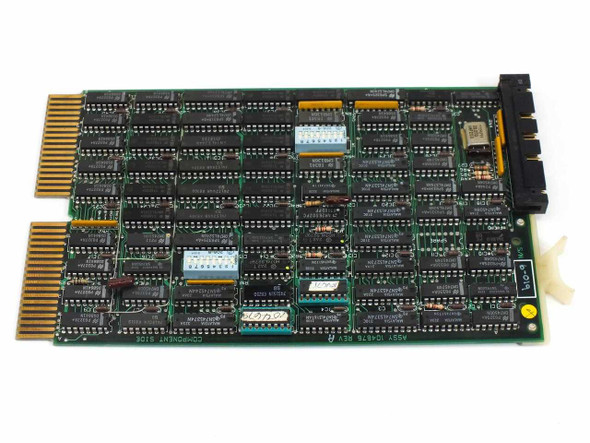

Peritek 104676 SCSI Interface Controller Board Card – component side top view showing dense IC population Peritek 104676 104677 SCSI Controller Board – reverse component side showing full board layout and edge connectors
