Description
Peritek Megatek Eclipse2 Video Card TVP3030 RAMDAC VME HD26 Workstation Graphics

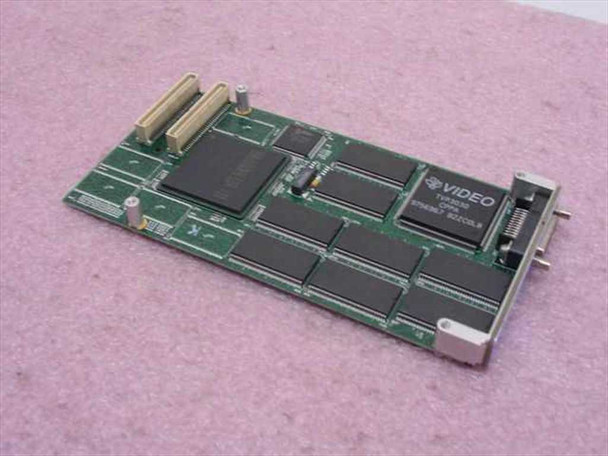

The Peritek Megatek Eclipse2 is a proprietary-bus video/graphics card designed for VME-based and high-end workstation environments. It uses a Texas Instruments TVP3030 RAMDAC as its main display controller, a chip widely used in professional-grade graphics subsystems of the mid-to-late 1990s for its high pixel-clock rates and color depth support. Output is via an HD-26 (high-density 26-pin) female connector on the blue-anodized bracket, supplemented by two coaxial connectors, indicating support for composite or sync-on-green video output typical of the workstation graphics of this era.
Specifications & What's Included
- Brand: Peritek
- Product Line: Megatek Eclipse2

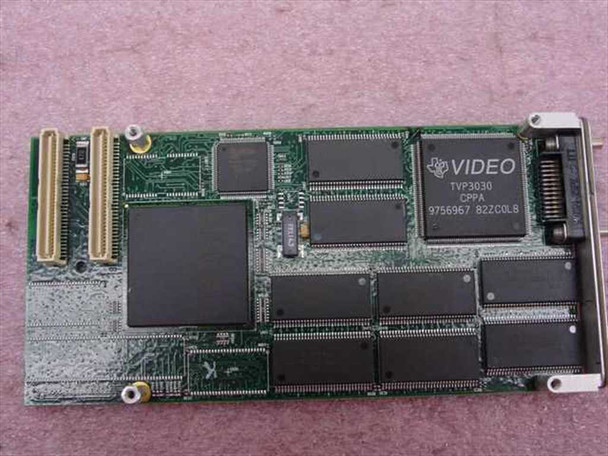

- Main Chip: Texas Instruments TVP3030 RAMDAC (date code 9756967)
- Bus Interface: VME / Proprietary edge connector (ITT MDSM-25PE)
- Bracket Output: HD-26 (High-Density 26-pin) female connector
- Additional Outputs: 2x coaxial connectors on bracket
- Board Revision: B1-1862
- Firmware Code: F-CODE 1.0
- Form Factor: Single-board VME/proprietary module
- Multiple onboard memory ICs (DRAM, visible on both sides of PCB)
- Card only — no cables or accessories included
Applications
Peritek has historically specialized in graphics accelerator and video display cards for embedded, VME, and rugged workstation applications — including simulation, visualization, defense, and industrial control systems. The Megatek Eclipse2 fits within this lineage:
This Peritek Megatek Eclipse2 video card has been tested and is in good working condition. The PCB is clean with no cracked traces, broken components, or missing chips visible. The bracket and HD-26 output connector are intact and free of damage. There is light handling wear consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Peritek |
Model: |
Eclipse2 |
MPN: |
B1-1862 |
Type: |
Video / Graphics Card |
SKU: |
25570 |
Chipset: |
Texas Instruments TVP3030 RAMDAC |
Bus Interface: |
VME / Proprietary |
Output Connector: |
HD-26 (High-Density 26-pin) Female |
Additional Connectors: |
2x Coaxial connectors on bracket |
Firmware Version: |
F-CODE 1.0 |
Board Revision: |
B1-1862 |
Form Factor: |
Single-Board Card / VME Module |
Compatible With: |
VME-bus workstations and graphics systems |
Seller Notes: |
Card only — no cables or accessories included |
Condition Notes: |
This Peritek Megatek Eclipse2 video card has been tested and is in good working condition. The PCB is clean, bracket and HD-26 connector are intact, with light handling wear. Please view our photos and contact us with any questions. |
