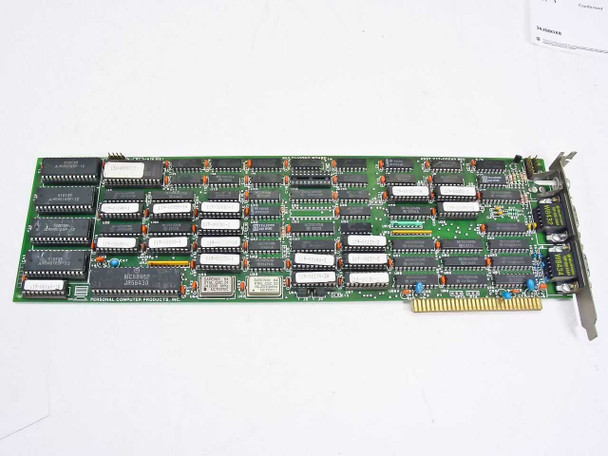

The PC Parts Inc 212-00040 is a full-length 8-bit ISA video card designed to support multiple simultaneous display output types from a single expansion slot. Built around the Motorola MC6845P CRT Controller (CRTC), it provides three output ports on its bracket: a DB-9 RGB connector, a DB-9 monochrome connector, and a composite (RCA-style) output — making it a multi-standard display adapter capable of driving different monitor types. The board carries a dense population of DIP ICs across its full length.

Specifications & What's Included

• Manufacturer: PC Parts Inc
• Assembly / Part Number: 212-00040 (silkscreen: ASSY 212-00040 REV)
• Bus Interface: ISA 8-Bit (full-length card)
• Main Controller: Motorola MC6845P CRT Controller (CRTC)
• Secondary IC: Motorola MC74F153N multiplexer (date code I8433 — circa 1984)
• Video Output 1: DB-9 female — RGB
• Video Output 2: DB-9 female — Monochrome (MONO)
• Video Output 3: Composite output — COMP 1 (RCA/BNC-style port)
• Compatible display standards: CGA, MDA / Monochrome
• Board condition: physically intact, no obvious cracked traces; light dust from storage
• NOTE: Does not produce video output — sold AS-IS for parts or repair only

Applications
