PC Chips HS9E01 Socket 370 Motherboard PC133 ATX GFXcel Integrated Video

PC Chips HS9E01 Socket 370 Motherboard PC133 ATX GFXcel Integrated Video

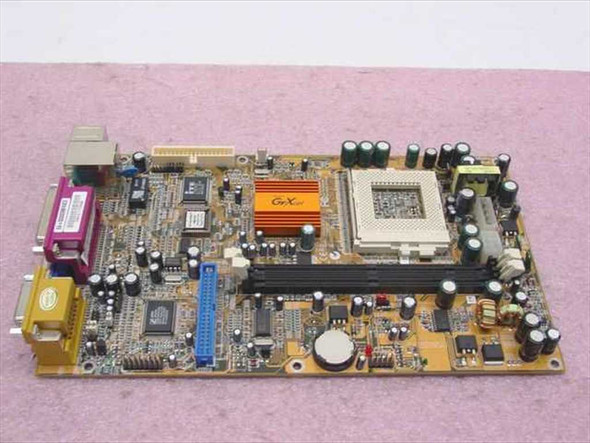

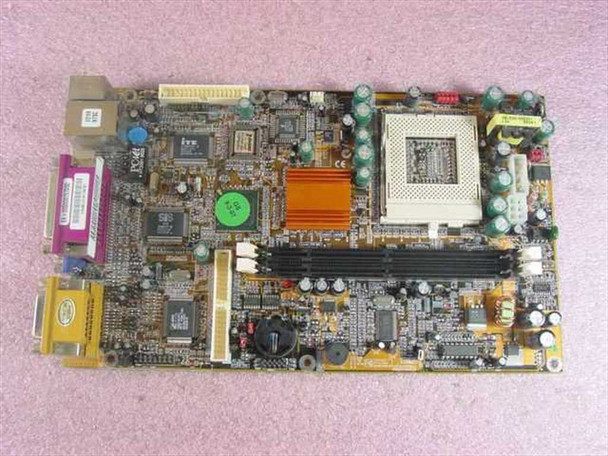

The PC Chips HS9E01 is an ATX form-factor desktop motherboard built around Intel's Socket 370 (PGA 370) platform. It supports Intel Celeron and Pentium III processors in the FC-PGA package and is equipped with PC133 SDRAM memory slots. A notable feature is its GFXcel integrated graphics controller, which provides onboard VGA output without requiring a discrete video card. The board also integrates audio and a 10/100 LAN controller, making it a compact all-in-one solution for late-1990s to early-2000s desktop builds.

Specifications & What's Included

• Model: PC Chips HS9E01
• Form Factor: ATX
• CPU Socket: Socket 370 (PGA 370)

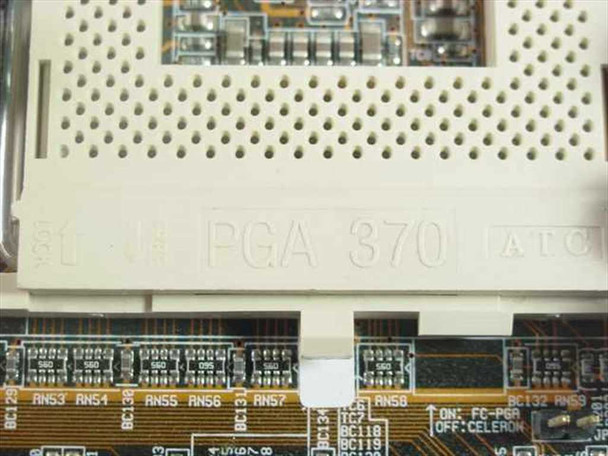

• Compatible CPUs: Intel Celeron (FC-PGA), Intel Pentium III (FC-PGA) — jumper-selectable FC-PGA / Celeron mode visible on PCB
• Memory: 3x DIMM slots, PC133 SDRAM
• Integrated Graphics: GFXcel onboard video controller with VGA (DB15) output

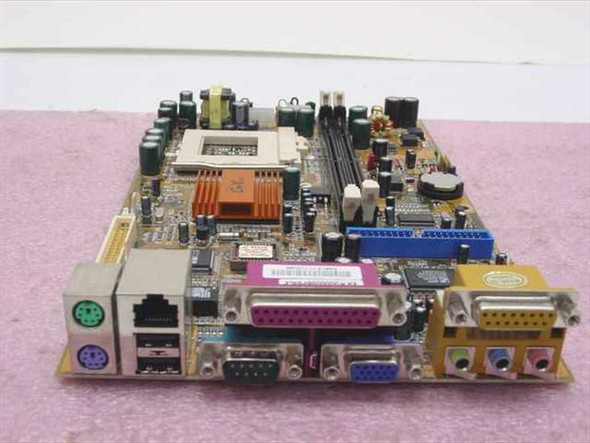

• Integrated Audio: Yes — line-in, line-out, and mic jacks on I/O panel; game/MIDI port
• Integrated LAN: Yes — RJ-45 Ethernet port on I/O panel
• USB: Yes — USB ports on I/O panel
• PS/2: 2x PS/2 ports (keyboard and mouse)

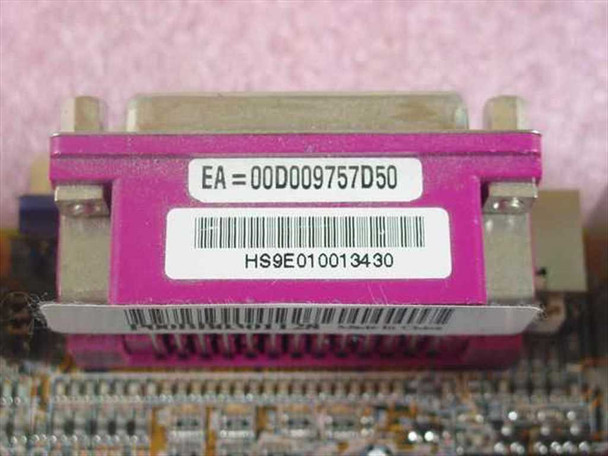

• Parallel Port: 1x DB25 (pink) on I/O panel
• Serial Port: 1x DB9 on I/O panel
• Expansion Slots: PCI and ISA slots visible on board
• What's Included: Motherboard only — no CPU, RAM, cables, or accessories included

Applications

The PC Chips HS9E01 belongs to the generation of budget-oriented Socket 370 motherboards that emerged in the late 1990s and early 2000s, coinciding with Intel's transition from the older Slot 1 (SEC cartridge) form factor to the more cost-effective PGA 370 socket for Celeron and Pentium III CPUs. PC Chips was a Taiwanese manufacturer known for producing affordable, highly integrated motherboards for entry-level OEM desktops and small-form-factor business PCs of that era. The GFXcel integrated graphics made boards like this common in office machines, point-of-sale systems, and kiosk terminals where a discrete GPU was unnecessary. Today, boards in this class are sought by collectors restoring late-1990s PC-compatible systems, by hobbyists building retro DOS/Windows 98 gaming rigs, and by industrial/embedded users who need a period-correct Socket 370 platform to maintain legacy equipment or software tied to that CPU generation.
