Parker Origa OSP-P50 Rodless Cylinder 2200mm Stroke 8 Bar Magnetic Piston

Parker Origa OSP-P50 Rodless Cylinder 2200mm Stroke 8 Bar Magnetic Piston

The Parker Origa OSP-P50 is a magnetic piston pneumatic rodless cylinder from Parker's OSP-P series — a well-established product line in industrial automation. Unlike conventional rod-style cylinders, the OSP-P uses a magnetically coupled internal piston and an external carrier that travels along the outside of the cylinder body, eliminating the rod and allowing longer strokes in tighter spaces. The stainless steel sealing band runs the length of the body, providing low-friction, low-leakage performance. This unit has a 2200mm (approximately 86.6 inch) stroke and 50mm bore, with a maximum operating pressure of 8 bar (approximately 116 PSI). A Hoerbiger-Origa KL3054 solenoid valve module is mounted on the body and is included with the unit.

Specifications & What's Included

• Model: OSP-P50

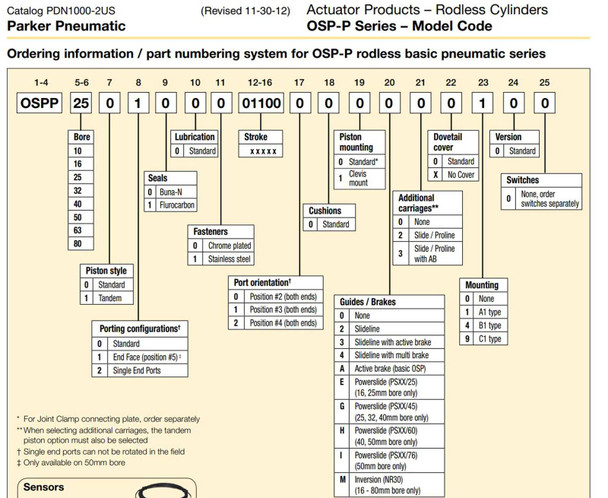

• MPN: OSPP501000002000000000003
• Bore: 50mm
• Stroke Length: 2200mm (approx. 86.6 in)
• Max Operating Pressure: 8 bar (approx. 116 PSI)
• Piston Type: Magnetic piston
• Sealing Band: Corrosion-resistant stainless steel outer band; corrosion-resistant steel inner band
• Operating Temperature Range: -40°C to 120°C
• Rated Service Life: 8,000 km
• Cushioning: Built-in adjustable cushioning system at both ends

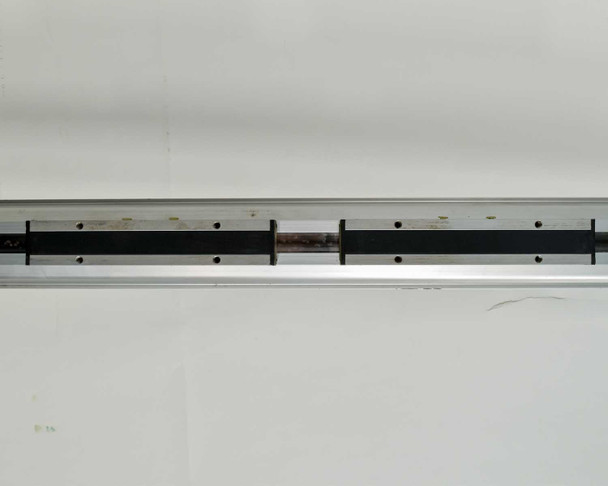

• Mounting Rails: On 3 sides of the body — accepts linear guides, brakes, valves, and magnetic switches

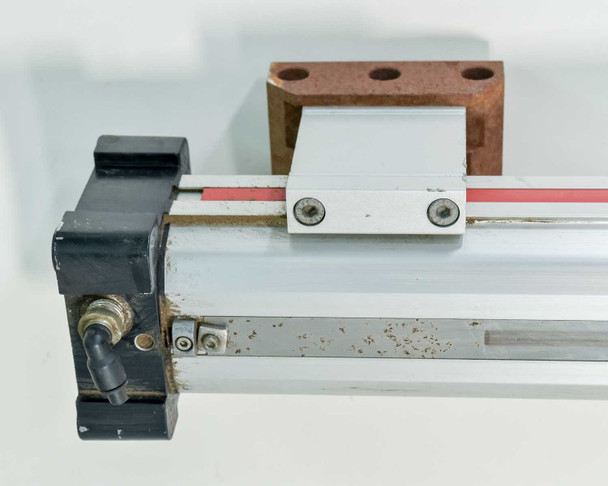

• End Mounting Brackets: Heavy steel brackets with 3-bolt mounting pattern (included; show surface rust)
• Included Valve Module: Hoerbiger-Origa KL3054 solenoid valve, mounted on cylinder body
• Country of Manufacture: USA (per label)

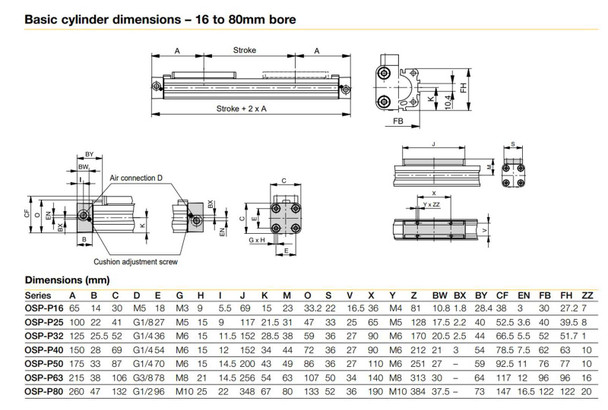

• Overall Dimensions: Approximately 10" x 11" x 98" (per source data)

Applications

The Parker OSP-P series of pneumatic rodless cylinders is a staple of industrial automation, commonly used in pick-and-place systems, parts transfer, door-opening mechanisms, overhead linear transfer, sorting machines, and assembly line feeding applications. The rodless design is especially well-suited to applications where stroke length must be maximized within a limited footprint, since the overall installed length equals only the stroke plus a short end-cap allowance — roughly half the installed length of a comparable rod cylinder. The 50mm bore and long 2200mm stroke make this unit a candidate for large-span horizontal or vertical transfer tasks. The modular OSP-P platform accepts Parker-compatible linear guides, dynamic brakes, and valve assemblies that mount directly to the cylinder body's three-sided rail system, allowing compact, integrated axis assemblies without external support structures. The OSP-P line has been in production for several decades and remains widely used in automotive, electronics, food processing, and general factory automation environments.
