Description
Parker Gold Ring Solenoid Valve 04F20C2414BDFPH05L Cryogenic 0/75 PSI 18W 120V
This Parker Hannifin Gold Ring series solenoid valve is configured for cryogenic service and rated for a pressure range of 0 to 75 PSI. The unit features a brass valve body with an open-frame solenoid coil (coil model D05-H00F) that accepts a standard DIN-style connector. It operates on 120V/60Hz or 110V/50Hz AC power and draws 18 watts. The listing includes the original Parker Fluidex Division installation and maintenance instructions sheet.
Specifications & What's Included
- Manufacturer: Parker Hannifin Corporation, Fluidex Division
- Product Family: Gold Ring Solenoid Valve Series
- Part Number: 04F20C2414BDFPH05L
- Coil Model: D05-H00F
- Coil Reference: QC155
- Application: PSI Cryogenic Service
- Pressure Range: 0/75 PSI
- Voltage: 120V/60Hz and 110V/50Hz (dual-rated)
- Power Consumption: 18 Watts
- Connector Type: Open Frame / DIN Connector
- Valve Body Material: Brass
- Port Caps: Yellow plastic port protection caps installed
- Manual Operator: Yellow manual override cap on solenoid coil
- Certifications: CE marked
- Includes: Original Parker Gold Ring Installation and Maintenance Instructions sheet
Applications
Parker Hannifin's Gold Ring solenoid valves are two-way or three-way electrically operated valves widely used in industrial fluid and gas control systems. The cryogenic-rated version of this valve is designed for use with liquefied gases and low-temperature media such as liquid nitrogen, liquid oxygen, liquid argon, and similar cryogens, where standard elastomers and materials would fail at extreme cold. These valves are common in cryogenic storage and distribution systems, laboratory gas supply lines, semiconductor fabrication facilities, and industrial gas handling equipment. The open-frame coil design allows the solenoid to be replaced or re-engineered in the field without removing the valve body from the pipeline, which makes this series popular in installations where service access is limited. The DIN connector interface allows for quick electrical connection and disconnection without rewiring. Parker Hannifin produced this Gold Ring series over several decades, and parts remain in active service across many industries today.

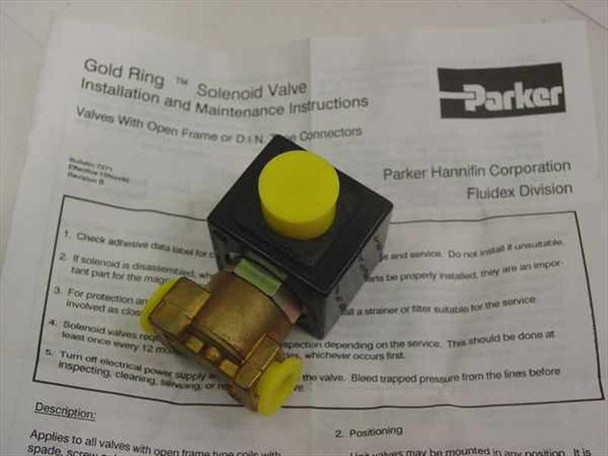

This Parker Hannifin Gold Ring Solenoid Valve (04F20C2414BDFPH05L) has been inspected and appears to be in good used condition. The brass valve body is intact with both port caps in place, and the black solenoid coil housing shows only light surface wear consistent with careful storage. The unit comes with its original Parker Fluidex Division installation and maintenance instructions sheet, which is in good readable condition. It has not been powered up or tested at our facility, but was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Parker Hannifin |
Model: |
04F20C2414BDFPH05L |
MPN: |
04F20C2414BDFPH05L |
Secondary Model: |
D05-H00F |
Type: |
Solenoid Valve |
Product Family: |
Gold Ring |
SKU: |
20790 |
Application: |
Cryogenic Service |
Pressure Rating: |
0/75 PSI |
Voltage: |
120V/60Hz, 110V/50Hz |
Power Consumption: |
18 Watts |
Coil Model: |
D05-H00F |
Coil Reference: |
QC155 |
Valve Body Material: |
Brass |
Connector Type: |
Open Frame / DIN Connector |
Country/Region of Manufacture: |
United States |
Certifications: |
CE |
Included Accessories: |
Installation and Maintenance Instructions |
Seller Notes: |
Includes original Parker Gold Ring installation and maintenance instructions sheet. |
Condition Notes: |
This Parker Hannifin Gold Ring Solenoid Valve 04F20C2414BDFPH05L has been inspected and is in good used condition with light wear. Includes original installation and maintenance instructions. Not tested at our facility; pulled from working service. |
