Panasonic WV-BM900 CRT Video Monitor BNC Composite CCTV Surveillance 120V 9in
The Panasonic WV-BM900 is a compact 9-inch CRT video monitor built for commercial CCTV and surveillance applications. It accepts a standard composite video signal via BNC connectors and includes a loop-through BNC output, allowing it to be daisy-chained in a multi-monitor security display setup. Front-panel controls for vertical hold, brightness, and contrast give operators direct manual adjustment without menus or software.
Specifications & What's Included
- Brand: Panasonic (Matsushita Communication Industrial Co., Ltd.)
- Model: WV-BM900
- Display type: CRT (Cathode Ray Tube)
- Screen size: 9 inch

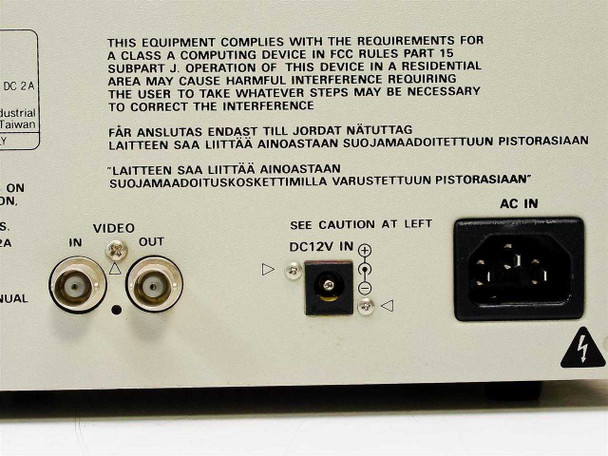

- Video input: BNC composite, 1Vp-p, 75Ω
- Video output: BNC composite loop-through
- Front-panel controls: V Hold, Brightness, Contrast (rotary knobs)

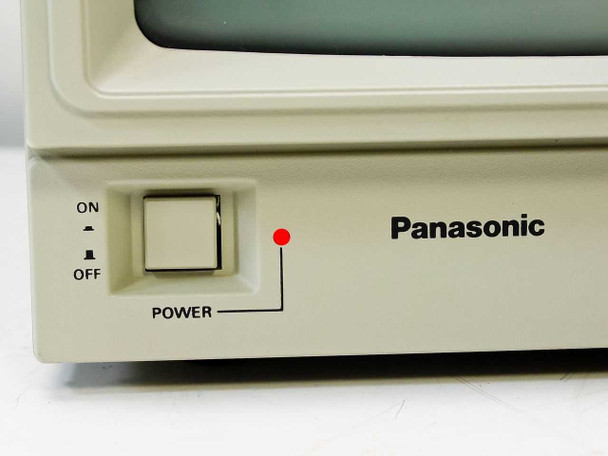

- Power switch: ON/OFF rocker with red LED power indicator

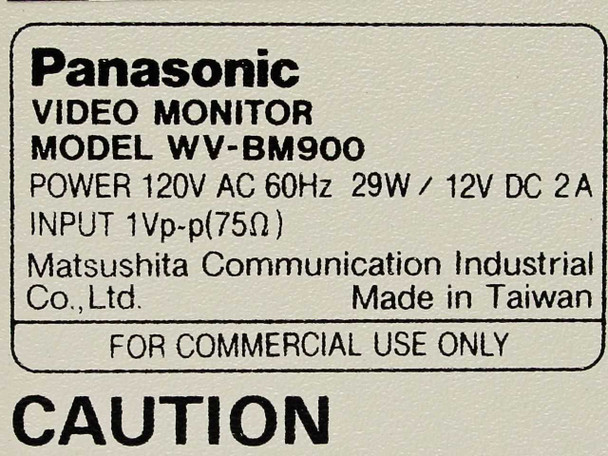

- AC power: 120V AC, 60Hz, 29W
- DC power option: 12V DC, 2A (rear barrel jack)
- AC inlet: IEC standard connector (rear)
- Country of manufacture: Taiwan
- FCC Class A compliant (commercial use)
- Includes: Monitor only — no cables or power cord included
Applications
The WV-BM900 was designed for commercial and industrial CCTV and closed-circuit video monitoring. Monitors like this were standard equipment in security control rooms, retail loss-prevention setups, industrial process monitoring stations, and broadcast/video production facilities during the 1980s and 1990s, when composite analog video was the dominant signal standard. The BNC loop-through output made it easy to pass the signal along to a VCR or additional display in the same chain. Today, the WV-BM900 remains useful for anyone working with legacy analog camera systems, vintage video equipment, or retro computing setups that output composite video — and for video engineers who need a direct, unadulterated CRT display without digital scaling or processing lag. The 12V DC input also makes it suitable for use in mobile or vehicle-based monitoring installations.
This Panasonic WV-BM900 CRT Video Monitor has been pulled from a working environment where it was previously in use. The unit has been visually inspected and photographed. The housing is in clean condition overall, showing the light surface wear and yellowing typical of a monitor of this age. All front-panel controls — V Hold, Brightness, and Contrast knobs — are present and intact. The rear BNC video connectors and AC/DC power inputs appear undamaged. Cosmetic wear is minor and consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Panasonic |
Model: |
WV-BM900 |
MPN: |
WV-BM900 |
Type: |
CRT Video Monitor |
SKU: |
37105 |
Seller Notes: |
Monitor only — no cables included. |
Country/Region of Manufacture: |
Taiwan |
Form Factor: |
Tabletop / Desktop |
Display Type: |
CRT (Cathode Ray Tube) |
Screen Size: |
9 inch |
Video Input: |
BNC Composite (1Vp-p, 75Ω) |
Video Output: |
BNC Composite Loop-Through |
Power Requirements: |
120V AC 60Hz 29W / 12V DC 2A |
Input Impedance: |
75 Ω |
Signal Standard: |
Composite Video (1Vp-p) |
Connector Type: |
BNC (Video IN/OUT), IEC AC IN, DC Barrel |
Controls: |
V Hold, Brightness, Contrast |
Application: |
CCTV, Surveillance, Security Camera Monitoring |
Manufacturer (OEM): |
Matsushita Communication Industrial Co., Ltd. |
Condition Notes: |
This Panasonic WV-BM900 CRT Video Monitor was pulled from a working environment and has been visually inspected. Housing is clean with light age-related wear. Front controls and rear BNC/AC connectors appear intact. |
