Panasonic

Panasonic MSDA023D1A AC Servo Driver 200-230V 3-Phase 200W 17-Bit Encoder

(No reviews yet) Write a Review
SKU:
48365
MPN:
MSDA023D1A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

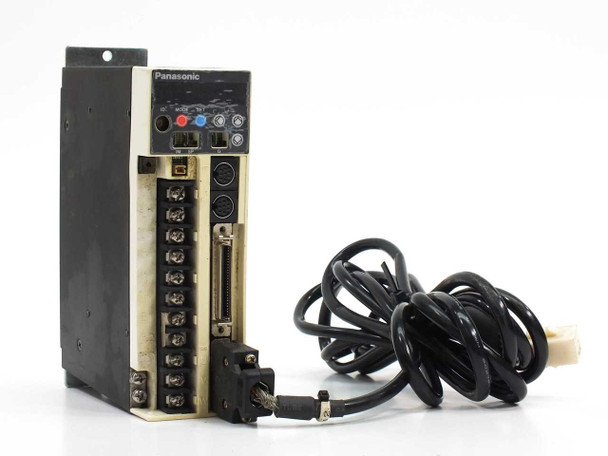

  • Panasonic MSDA023D1A AC Servo Driver front panel view with terminal block, D-sub connector, and attached motor cable
  • Panasonic MSDA023D1A AC Servo Driver right side view showing black enclosure and attached power cable with multi-pin connector

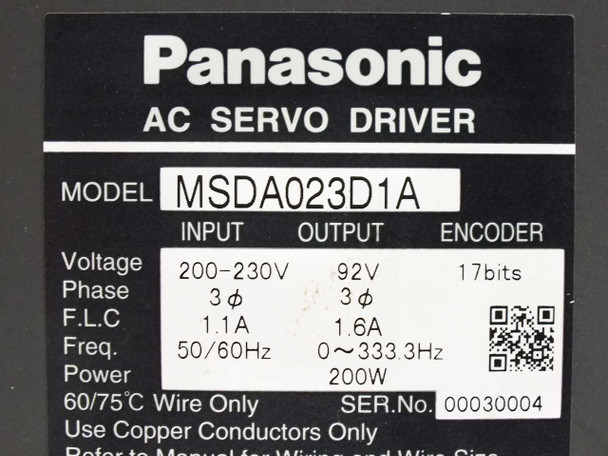

  • Panasonic MSDA023D1A nameplate label showing model number, input 200-230V 3-phase 1.1A, output 92V 1.6A 0-333.3Hz 200W, 17-bit encoder
  • Panasonic MSDA023D1A AC Servo Driver top view showing terminal block row, D-sub port, mini-DIN connectors, and front panel indicators
  • Close-up of 9-pin motor cable connector end showing yellowed housing with wear and soiling on the connector body

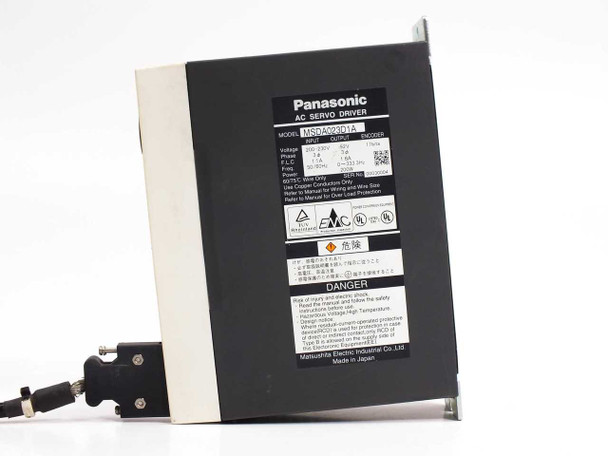

  • Panasonic MSDA023D1A AC Servo Driver - 208~230 VAC 3-Phase - Output 92V 0-333 Hz
$125.00
Was: $175.00
Current Stock: 4

Sold Out

Description

Panasonic MSDA023D1A AC Servo Driver 200-230V 3-Phase 200W 17-Bit Encoder

AC servo driver designed to control Panasonic MINAS A-Series AC servo motors. This module amplifies and regulates motor control signals from 200-230V 3-phase input.

Specifications & What's Included

  • Input: 200-230V AC, 3-Phase, 50/60Hz, 1.1A
  • Output: 92V AC, 0-333.3Hz, 1.6A
  • Power Rating: 200W
  • Encoder Resolution: 17-Bit
  • Connections: Terminal block, D-sub connector, mini-DIN connectors
  • Includes attached motor cable with 9-pin connector
  • Form Factor: Enclosed module, panel mountable
  • Manufactured in Japan

Applications

Used in industrial automation, CNC machinery, and motion control systems requiring servo-driven positioning.

Condition: Used
This Panasonic MSDA023D1A AC Servo Driver shows normal wear consistent with prior industrial use — the enclosure has some surface scuffing and the motor cable connector end shows yellowing and dirt buildup as visible in photos. The unit has not been powered up or bench-tested at our facility. Includes the attached motor cable. View our photos and reach out with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Panasonic
Model:
MSDA023D1A
MPN:
MSDA023D1A
SKU:
48365
Condition:
Used – Inspected
Seller Notes:
Includes attached motor cable with 9-pin connector
Form Factor:
Enclosed Module / Panel Mount
Country of Manufacture:
Japan
Power Requirements:
200-230V AC, 3-Phase, 50/60Hz, 1.1A
Voltage Rating:
200-230V AC Input; 92V AC Output
Current Rating:
Input: 1.1A; Output: 1.6A
Power Rating:
200W
Phase:
Three Phase
Frequency:
Input: 50/60Hz; Output: 0-333.3Hz
Encoder Resolution:
17-Bit
Output Frequency Range:
0 to 333.3 Hz
Drive Type:
AC Servo Driver / Servo Amplifier
Compatible With:
Panasonic MINAS A-Series AC Servo Motors
Interface:
Terminal block, D-sub connector, mini-DIN connectors
Condition Notes:
This Panasonic MSDA023D1A AC Servo Driver shows normal wear consistent with prior industrial use — the enclosure has some surface scuffing and the motor cable connector end shows yellowing and dirt buildup as visible in photos.
View AllClose

Related Products

Related Products

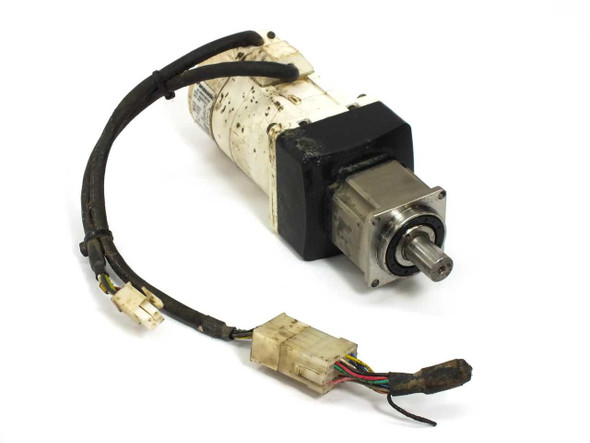

Panasonic MSMA022A1E AC Servo Motor with Apex Dynamics gear head – side view showing motor body and attached leads Panasonic MSMA022A1E AC Servo Motor with Apex AB042-S2-P2 planetary gear head – rear three-quarter view showing output shaft and connectors
