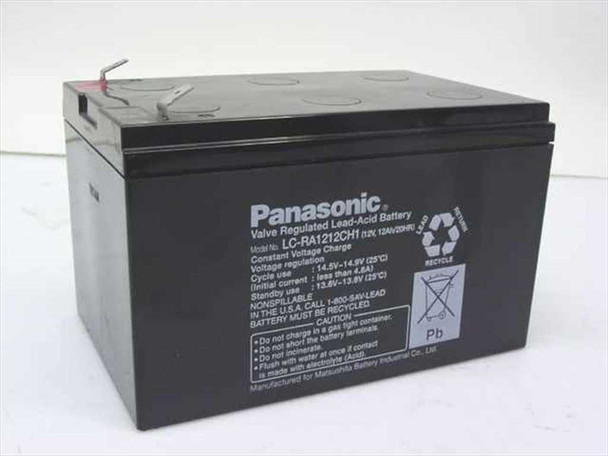

Panasonic LC-RA1212CH1 Valve Regulated Lead-Acid Battery 12V 12Ah UPS

Panasonic LC-RA1212CH1 Valve Regulated Lead-Acid Battery 12V 12Ah UPS

The Panasonic LC-RA1212CH1 is a 12-volt, 12Ah valve regulated lead-acid (VRLA) sealed battery designed for standby and float applications. It uses an absorbed glass mat (AGM) construction that makes it spill-proof and maintenance-free, suitable for use in any orientation. The battery is manufactured by Matsushita Battery Industrial Co. (Panasonic) and carries standard safety certifications for sealed lead-acid chemistry.

Specifications & What's Included

• Model: Panasonic LC-RA1212CH1
• Voltage: 12V
• Capacity: 12Ah (20-hour rate)
• Battery Type: Valve Regulated Lead-Acid (VRLA) / Sealed AGM
• Terminal Type: Faston / spade terminals (dual, top-mounted)
• Approximate Dimensions: 15 cm (L) × 10 cm (W) × 10 cm (H)
• Voltage regulation: constant voltage charge, 13.5–14.9V at 25°C (per label)
• Cycle use float range: 13.5–13.8V at 25°C (per label)
• Non-spillable, maintenance-free construction
• Battery only — no cables or accessories included

Applications

The LC-RA1212CH1 is a standard 12V 12Ah sealed lead-acid battery widely used as the internal backup cell in uninterruptible power supplies (UPS), security and fire alarm control panels, emergency exit and egress lighting, access control systems, and small medical or mobility devices. This battery size — sometimes called an NP12-12 or equivalent — is one of the most common form factors in the SLA/VRLA market, and compatible replacements are used across hundreds of UPS models from APC, CyberPower, Tripp Lite, Minuteman, and others. Panasonic's LC-RA series was a well-regarded product line for standby and cyclic power applications in commercial and light-industrial settings. Because sealed AGM batteries are still in active everyday use across these application categories, used pulls from working systems are a practical and cost-effective option for replacement or backup stock.
