Panasonic KX-P2123 Dot Matrix Printhead Replacement Print Head 24-Pin

Panasonic KX-P2123 Dot Matrix Printhead Replacement Print Head 24-Pin

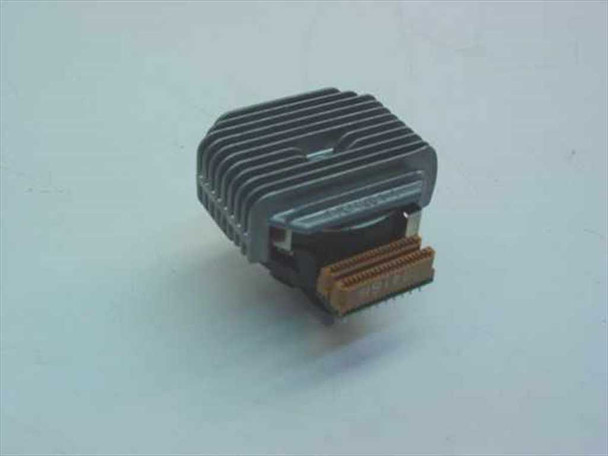

This is a replacement 24-pin dot matrix printhead for the Panasonic KX-P2123 printer. The printhead is the core mechanical component of the dot matrix print mechanism — a row of fine steel wires (pins) is driven by individual electromagnets to strike an inked ribbon against paper, forming characters and graphics one column of dots at a time. The 24-pin configuration produces near-letter-quality (NLQ) output, offering finer resolution than earlier 9-pin designs.

Specifications & What's Included

• Compatible Printer: Panasonic KX-P2123 dot matrix printer
• Pin Configuration: 24-pin wire matrix printhead
• Heat sink body with finned aluminum construction for thermal management

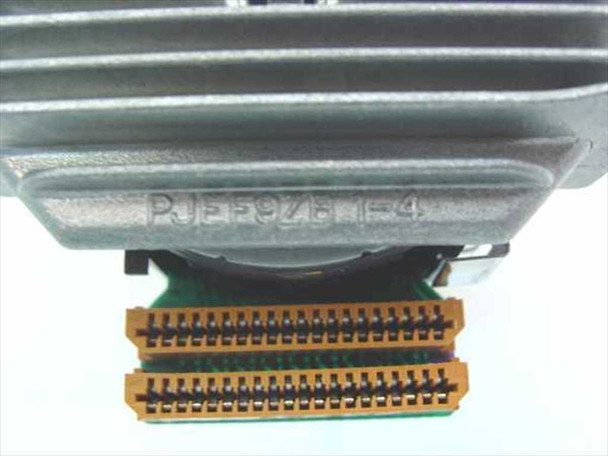

• Dual gold-contact flex cable connectors (visible on underside)
• Flex ribbon marking: 30416B
• Sold with a test print confirming functional output

Applications

The Panasonic KX-P2123 is a 24-pin narrow-carriage dot matrix printer introduced in the early 1990s, aimed at home and small-business users who needed near-letter-quality printing at an affordable price point. The KX-P2123 was particularly popular in environments requiring multipart form printing — receipts, invoices, purchase orders, and shipping documents — where impact printing is the only technology that can produce carbon copies. Dot matrix printers of this type remain in active use today in point-of-sale, logistics, and industrial settings where multipart forms, continuous-feed paper, or extreme durability are required. A worn or failed printhead is the most common service failure on dot matrix printers, making replacement printheads a steady demand item for maintaining these machines in service.
