Panasonic JU-257A655P 1.44MB 3.5" Internal Floppy Disk Drive FDD IDE AT&T P006

Panasonic JU-257A655P 1.44MB 3.5" Internal Floppy Disk Drive FDD IDE AT&T P006

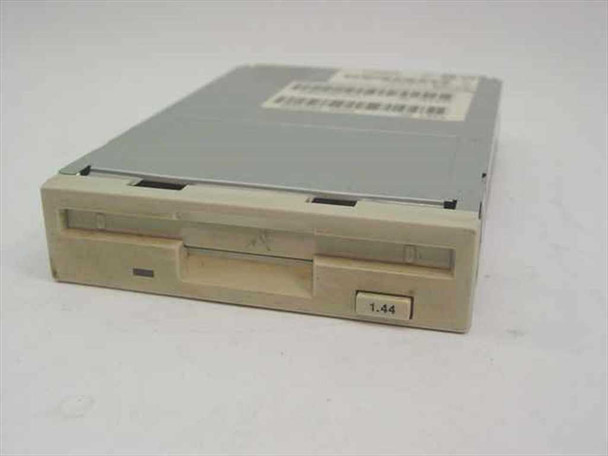

The Panasonic JU-257A655P is a 3.5-inch high-density internal floppy disk drive capable of reading and writing standard 1.44MB HD diskettes. Manufactured by Matsushita Communication Industrial Co., Ltd. under the Panasonic brand, this unit was pulled from AT&T P006 equipment. It connects via a standard 34-pin IDE ribbon cable interface, making it compatible with virtually any desktop PC of its era that includes a floppy controller header on the motherboard.

Specifications & What's Included

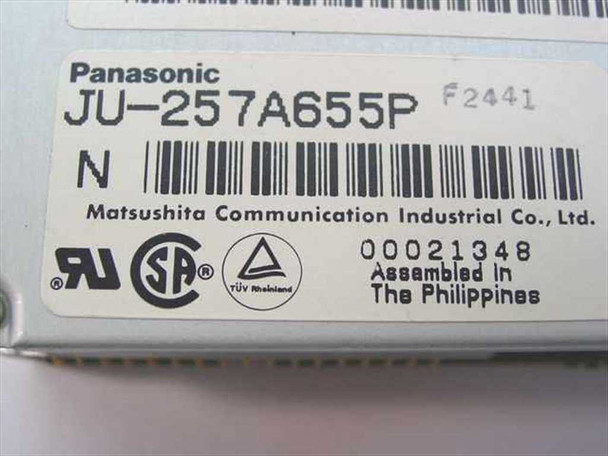

• Brand: Panasonic (Matsushita Communication Industrial Co., Ltd.)
• Model: JU-257A655P
• Capacity: 1.44 MB (HD High Density)
• Form Factor: 3.5-inch half-height internal

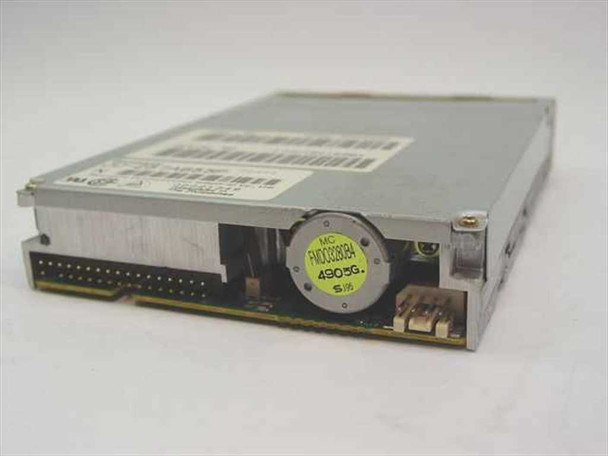

• Interface: IDE 34-pin ribbon connector
• Power Connector: 4-pin standard Berg (floppy power)
• Country of Assembly: Philippines
• Certifications: UL, CSA, TÜV Rheinland
• Pull Source: AT&T P006 equipment
• Drive unit only — no ribbon cable or power cable included

Applications

The 3.5-inch 1.44MB internal floppy drive was the dominant removable storage standard for desktop and tower PCs from the late 1980s through the early 2000s, replacing the earlier 5.25-inch format. These drives were standard equipment in IBM-compatible PCs, workstations, and OEM systems from manufacturers such as IBM, Compaq, HP, Dell, and many others, as well as in industrial computers, CNC controllers, and embedded systems that required floppy-based data loading or firmware updates. While modern consumer PCs no longer include floppy drives, they remain in active demand for legacy industrial CNC machines, medical equipment, older test and measurement instruments, and vintage computer restoration, where 1.44MB floppy storage is still the required medium. The JU-257A655P is a well-regarded OEM drive produced by Matsushita (Panasonic), a major supplier of floppy mechanisms to the PC industry throughout the 1990s.
