Panasonic CF-AA1653A AC Adapter 15.6V 5A 78W 100-240V Toughbook Laptop Charger

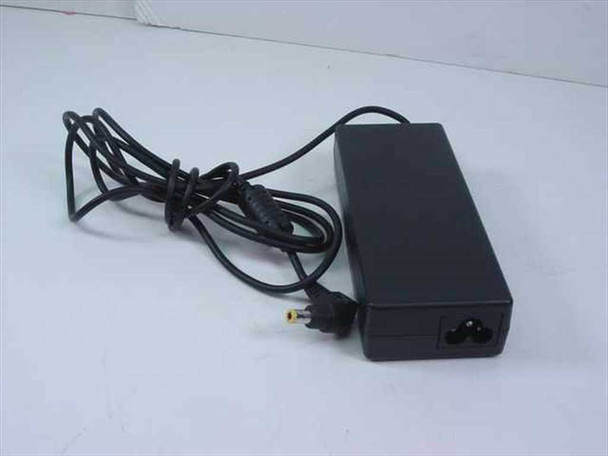

The Panasonic CF-AA1653A is an OEM AC adapter designed for Panasonic Toughbook laptops. It delivers a regulated 15.6V DC output at up to 5A (78W) and accepts universal AC input, making it compatible with outlets worldwide. This is the M2 revision of the adapter, identifiable by the yellow-tipped barrel connector and IEC C5 (cloverleaf) AC inlet.
Specifications & What's Included
- Manufacturer: Panasonic (Matsushita Electric Industrial Co.)
- Model: CF-AA1653A, Revision M2
- Alternate Part Number: SEB100P3-15.6C
- Input: 100V–240V AC, 1.2A (100V) / 0.6A (240V)
- Input Frequency: 50–60Hz (universal)
- Output: 15.6V DC, 5A
- Output Power: 78W
- AC Inlet: IEC C5 cloverleaf (AC power cord not included)
- DC Output Connector: Barrel connector with yellow tip
- Country of Manufacture: Indonesia
- Form Factor: External brick-style adapter
- Certifications: UL, CCC, CE, N52, JET
- Included: AC adapter with attached DC output cable only — no AC power cord
Applications
The CF-AA1653A is the standard OEM AC adapter for Panasonic Toughbook rugged laptops that use a 15.6V power rail, including models such as the CF-28, CF-29, CF-30, CF-34, CF-73, and other CF-series notebooks from the early-to-mid 2000s Toughbook lineup. Toughbook laptops are purpose-built for demanding field environments — used by military, law enforcement, emergency services, utilities, and field service technicians — and replacement OEM power supplies for them remain in steady demand. The universal 100–240V input allows the adapter to be used with standard power outlets in North America, Europe, Asia, and most other regions without a separate voltage converter. A compatible IEC C5 power cord (the standard
This Panasonic CF-AA1653A Toughbook AC adapter has been pulled from a working environment and visually inspected. The unit is in good used condition with no significant damage visible. The DC output cable and barrel connector appear intact, and the IEC C5 cloverleaf AC inlet is clean. Some light surface wear consistent with normal use may be present. It has not been powered up or tested at our facility. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Panasonic |
Model: |
CF-AA1653A |
Secondary Model: |
CF-AA1653A M2 |
MPN: |
CF-AA1653A |
Part Number: |
SEB100P3-15.6C |
SKU: |
26046 |
Type: |
AC Adapter / Laptop Charger |
Compatible With: |
Panasonic Toughbook laptops (CF series) |
Input Voltage: |
100V-240V AC |
Input Current: |
1.2A (100V) – 0.6A (240V) |
Input Frequency: |
50-60Hz |
Output Voltage: |
15.6V DC |
Output Current: |
5A |
Output Power: |
78W |
AC Inlet Connector: |
IEC C5 (Cloverleaf / Mickey Mouse) |
DC Output Connector: |
Barrel connector (yellow tip) |
Power Requirements: |
100-240V AC, 50-60Hz (universal) |
Country/Region of Manufacture: |
Indonesia |
Form Factor: |
External Brick |
Seller Notes: |
AC adapter only — no AC power cord included. |
Condition Notes: |
This Panasonic CF-AA1653A Toughbook AC adapter was pulled from a working environment and visually inspected. Good used condition; cable and connectors appear intact. Not powered or tested at our facility. Please contact us with any questions. |
