Description
Panasonic AIGT2230H GT21 Programmable Display 5" STN LCD 320x240 RS232C 24V
Panel-mount HMI (Human Machine Interface) terminal for industrial automation and control systems. Communicates with Panasonic GT21 series PLCs via RS232C serial connection to display operational data and accept operator input.
Specifications & What's Included

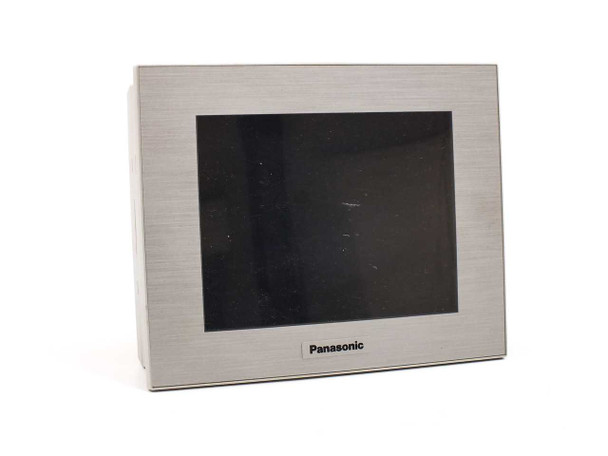

- 5-inch diagonal STN color LCD display, 320x240 pixels (QVGA), 256 colors
- RS232C serial interface; 24V DC power (0.2A)
- Panel-mount form factor with screw-terminal connectors
- Manufactured by Matsushita Electric Works, Ltd. (Japan)

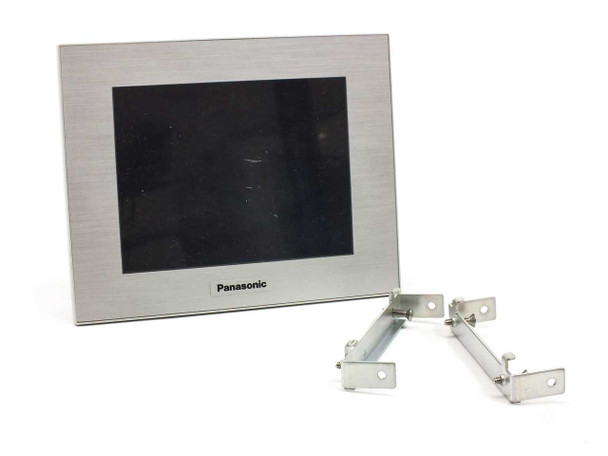

- Two metal panel-mount brackets included; programming tool tip not included
Applications
The GT21 display series was used for operator interface and real-time monitoring in factory automation, process control, and telecom equipment racks. Compatible with Panasonic GT21 PLC systems and legacy industrial control setups requiring small-format display panels with touch capability and programmable screens.
Condition: For Parts or Not Working
This Panasonic AIGT2230H GT21 Programmable HMI Display is being sold as-is for parts or repair. It does power on when connected to a 24 VDC source — the backlight illuminates and the screen lights up — but the display shows only a blank screen with no content, and the touchscreen does not respond to touch input. We do not have the GT21 programming tool tip required to load a project and fully test screen functionality, so we cannot confirm the display or touch digitizer are operational beyond powering on. Two metal panel-mount brackets are included. The programming tool tip is not included. Please view our photo set and contact us if you have any questions.
This Panasonic AIGT2230H GT21 Programmable HMI Display is being sold as-is for parts or repair. It does power on when connected to a 24 VDC source — the backlight illuminates and the screen lights up — but the display shows only a blank screen with no content, and the touchscreen does not respond to touch input. We do not have the GT21 programming tool tip required to load a project and fully test screen functionality, so we cannot confirm the display or touch digitizer are operational beyond powering on. Two metal panel-mount brackets are included. The programming tool tip is not included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Panasonic |
Model: |
AIGT2230H |
MPN: |
AIGT2230H |
Secondary Model: |
GT21 |
Type: |
Programmable HMI Display Panel |
SKU: |
48945 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes two metal panel-mount brackets. Programming tool tip not included. |
Country/Region of Manufacture: |
Japan |
Manufacturer: |
Matsushita Electric Works, Ltd. |
Screen Size: |
5 in (diagonal) |
Display Type: |
STN Color LCD |
Resolution: |
320 x 240 pixels (QVGA) |
Color Depth: |
256 colors |
Interface: |
RS232C |
Power Requirements: |
24V DC, 0.2A |
Form Factor: |
Panel-Mount HMI Terminal |
Compatible With: |
Panasonic GT21 series PLC/automation systems |
Application: |
Industrial HMI / Operator Interface Panel |
Connector Type: |

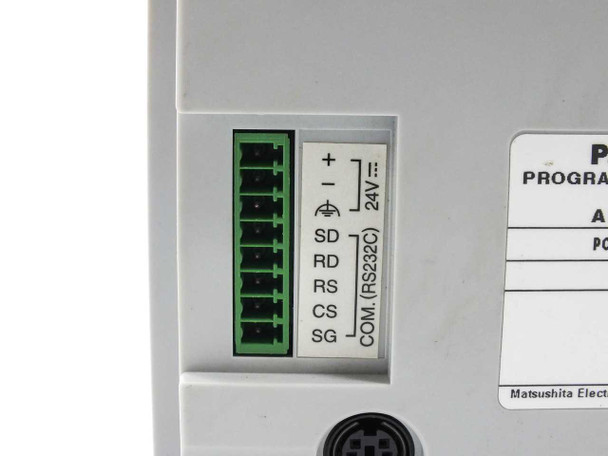

RS232C serial; screw-terminal power connector |
Condition Notes: |
Panasonic AIGT2230H GT21 HMI display sold as-is for parts/repair. Powers on to a blank screen; touch unresponsive. No programming tool available to fully test. Mounting brackets included. Tool tip not included. |
