Panasonic AG-7750 S-VHS Professional Editor VCR TBC DNR RS-422A For Parts

Panasonic AG-7750 S-VHS Professional Editor VCR TBC DNR RS-422A For Parts

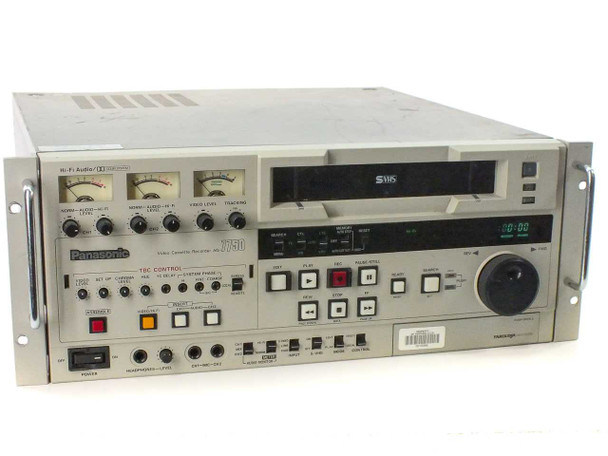

The Panasonic AG-7750 is a rackmount professional S-VHS editor VCR designed for broadcast and production use. It features a built-in digital Time Base Corrector (TBC), built-in Digital Noise Reduction (DNR), RS-422A serial control, and parallel control interface — making it a full-featured editing transport for linear video post-production workflows. This unit powers on and displays its menu normally via the rear BCN Video Monitor Out port, but the auto loader mechanism has failed and is being sold as-is for parts or repair.

Specifications & What's Included

• Model: Panasonic AG-7750 (AG-7750-P)
• Format: S-VHS (Super VHS)
• Time Base Corrector: Built-in digital TBC
• Noise Reduction: Built-in DNR (Digital Noise Reduction)
• Control Interface: RS-422A serial control; parallel control
• Audio: 4-channel audio with XLR connectors; Hi-Fi audio
• Comb Filter: 3-line logical comb filter
• Shuttle Control: Jog/shuttle dial with Search, Page, and Set functions
• Time Code Display: Digital SMPTE-style readout — Hours, Minutes, Seconds, Frames

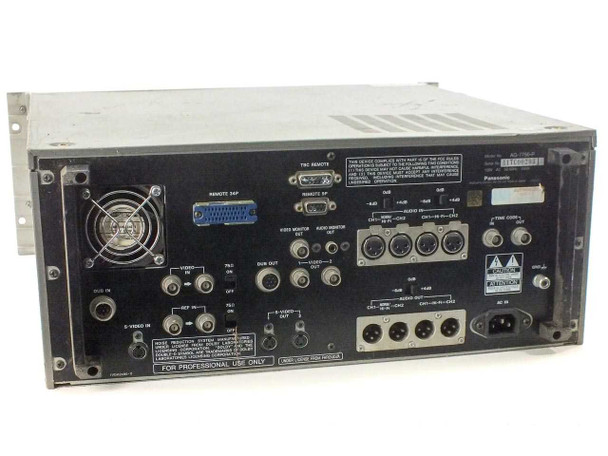

• Video Output (rear): BCN Video Monitor Out
• Remote Connector (rear): D24F Remote port; TBC Remote port
• Additional rear connectors: S-Video In, BNC video connectors, XLR audio I/O, IEC AC power inlet

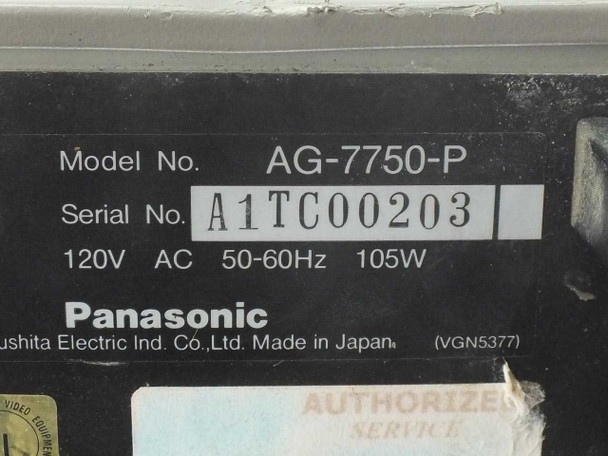

• Power Requirements: 120V AC, 50-60Hz, 105W
• Form Factor: Rackmount
• Country of Manufacture: Japan (Matsushita Electric Ind. Co., Ltd.)
• Sold as-is for parts or repair — auto loader mechanism failed

Applications

The AG-7750 was designed for professional linear video editing environments — broadcast stations, post-production facilities, and duplication houses that required frame-accurate editing control over S-VHS source material. The RS-422A interface made it compatible with industry-standard edit controllers such as the Sony BVE series and similar 9-pin control systems, allowing it to function as an A-roll or B-roll source deck in a linear edit suite. The built-in TBC was essential for stabilizing the S-VHS signal to broadcast-quality sync before output to a switcher or master recorder. Units like this were widely used through the late 1990s and early 2000s in facilities running S-VHS alongside Betacam or U-matic formats. Today they are sought for parts, repair, and legacy format digitization workflows where the transport, TBC board, or control electronics are needed.
