Description
Panasonic 42SPM24DGYE Stepper Motor 2-Phase Unipolar 5V 250mA 7.5° 42mm PM
A 2-phase unipolar permanent magnet stepper motor from Panasonic's 42SPM series. This motor provides precise angular positioning in 7.5-degree increments and is commonly used in industrial automation, telecommunications equipment, and precision positioning applications.
Specifications & What's Included
- Motor Type: 2-Phase Unipolar Permanent Magnet (PM)
- Step Angle: 7.5 degrees (48 poles)
- Drive Voltage: 5 to 6V DC
- Coil Current: 250 mA per coil at 5V
- Case Diameter: 42 mm, Height: 24 mm
- Shaft Diameter: 3.03 mm with integrated gear
- Mounting: 2.6 mm holes spaced 48.8 mm apart
- Connector: 6-pin JST-style with wire harness attached
Applications
Stepper motors of this type were widely used in legacy telecommunications switching systems, industrial control panels, and precision positioning equipment. The 42mm frame size and low-voltage specification make it suitable for tabletop equipment and compact automation systems. Unipolar motors of this generation are found in older test equipment, plotters, and robotic positioning systems.

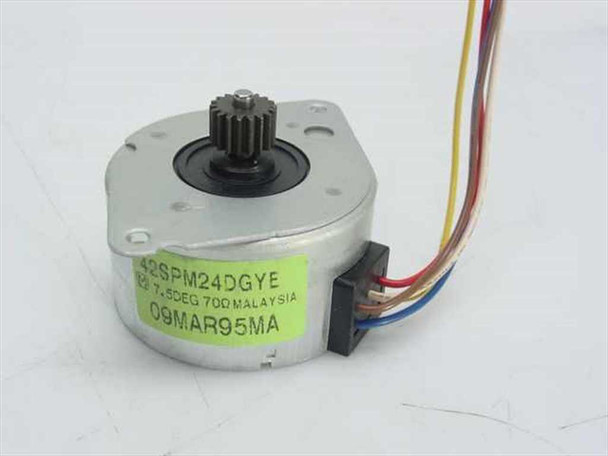

This Panasonic 42SPM24DGYE 2-phase stepper motor is new and unused. It may be out of its original retail packaging, but the motor itself is unissued stock in new condition. The unit shown has a gear fitted to the shaft and an attached multi-color wire harness with a 6-pin JST-style connector, both in clean, undamaged condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Panasonic |
Model: |
42SPM24DGYE |
MPN: |
42SPM24DGYE |
Type: |
2-Phase Unipolar PM Stepper Motor |
SKU: |
26530 |
Motor Series: |
42SPM |
Step Angle: |
7.5 degrees |
Number of Phases: |
2 |
Motor Configuration: |
Unipolar |
Motor Technology: |
Permanent Magnet (PM) |
Number of Poles: |
48 |
Drive Voltage: |
5 to 6V DC |
Coil Current: |
250 mA per coil at 5V |
Number of Coils: |
2 |
Case Diameter: |
42 mm |
Motor Height: |
24 mm |
Shaft Diameter: |
3.03 mm |
Mounting Hole Diameter: |
2.6 mm |
Mounting Hole Spacing: |
48.8 mm |
Output Shaft: |
Includes gear on shaft |
Connector Type: |
6-pin JST-style connector with wire harness |
Country/Region of Manufacture: |
Malaysia |
Condition: |
New – Open Box |
Seller Notes: |
New open-box unit; may be out of original packaging. Includes attached wire harness with 6-pin connector. |
Condition Notes: |
Panasonic 42SPM24DGYE 2-phase stepper motor. New, unused open-box stock. May be out of original packaging. Unit is in new condition with wire harness and gear on shaft. Please contact us with any questions. |
