The Panasonic KX-T1232UD is a card-based electronic modular switching system from Panasonic's EASA-Phone line of small business telephone systems. The KX-T1232 platform supports up to 12 CO (trunk) lines and 32 extensions in a wall-mountable cabinet chassis, with system capacity determined by the expansion cards installed. This unit ships with six installed expansion cards and an RS-232C serial port for SMDR (call detail recording) output.

Specifications & What's Included

• Model: Panasonic KX-T1232UD
• Product line: EASA-Phone Electronic Modular Switching System
• System capacity: up to 12 CO lines x 32 extensions (card-dependent)
• Form factor: wall/desktop cabinet
• Internal power supply: +12V, +5V, +16V rails (onboard PSU)
• Serial interface: EIA RS-232C, DB-25 female connector (SMDR/call accounting output)

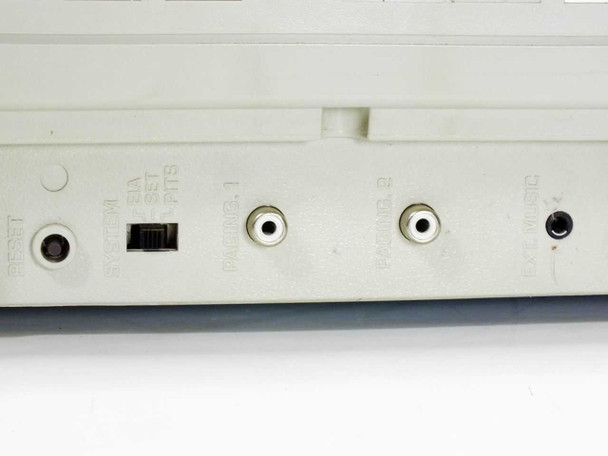

• Paging outputs: PAGING-1 and PAGING-2 RCA jacks on bottom panel
• DIP switch block: EIA/S47/PITS configuration switches on bottom panel
• RESET button: accessible on bottom panel

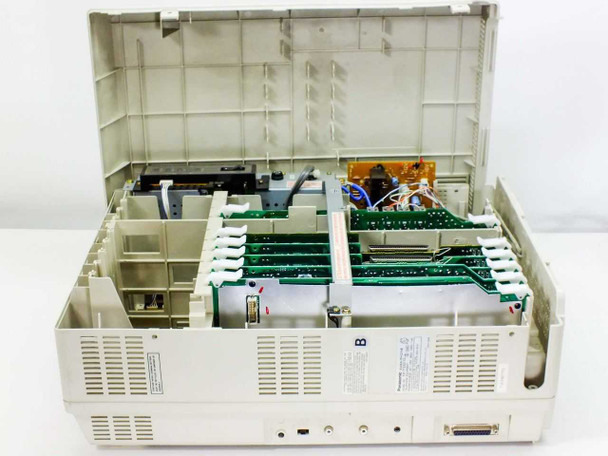

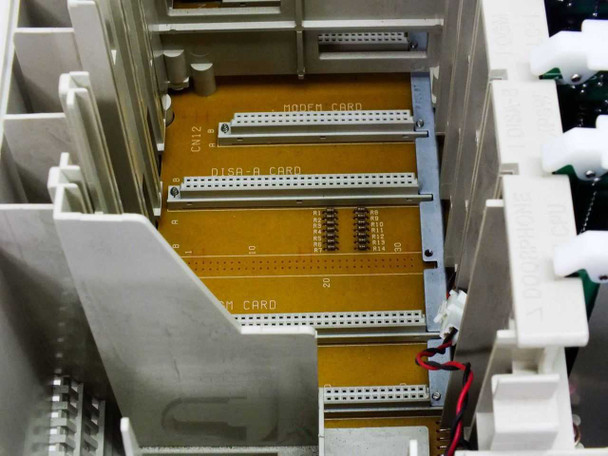

• Backplane slots labeled: MODEM CARD, DISA-B CARD, and additional card positions
• Installed card — PQUP441WA (CO line/trunk card)
• Installed card — PQUP442XA × 2 (station/extension cards)
• Installed card — PQUP439WA (station/extension card)
• Installed card — PQUP439ZE (station/extension card variant)
• Installed card — PQUP856XA (special service/DISA card)
• Installed card — PQU0438YA-A (power/control card)

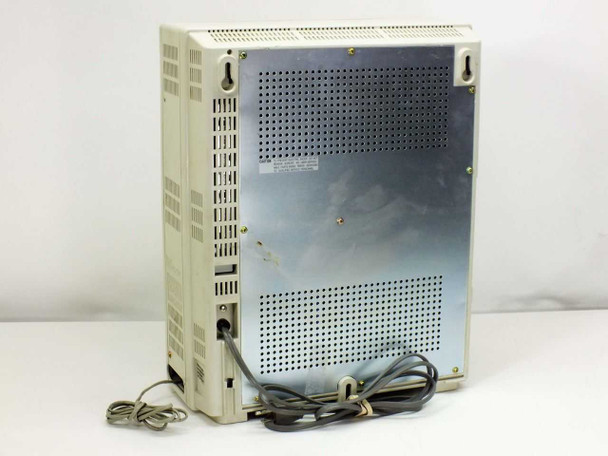

• Attached power cord included (visible in photos)

Applications

The Panasonic KX-T1232 series was designed for small to medium-sized businesses that needed a feature-rich, expandable phone system without the cost of a full PBX. The EASA-Phone platform was Panasonic's flagship small business key telephone and hybrid PBX line through the late 1980s and into the 1990s, supporting proprietary Panasonic digital and analog handsets alongside standard analog station ports. Typical deployments included offices, small hotels, clinics, and retail environments where centralized call routing, hold, transfer, paging, and DISA (Direct Inward System Access) were needed. The RS-232C SMDR port allowed connection to a call accounting computer or printer to log call records by extension — a standard feature for businesses tracking long-distance usage. These systems are still actively sought for legacy office environments that have not yet migrated away from the EASA-Phone platform, as well as by technicians maintaining existing KX-T1232 installations, given the availability of matched expansion cards.
