Panacol-Elosol UV-P 250-S UV Point Source 250W Metal Halide Lamp w/ Power Supply

Panacol-Elosol UV-P 250-S UV Point Source 250W Metal Halide Lamp w/ Power Supply

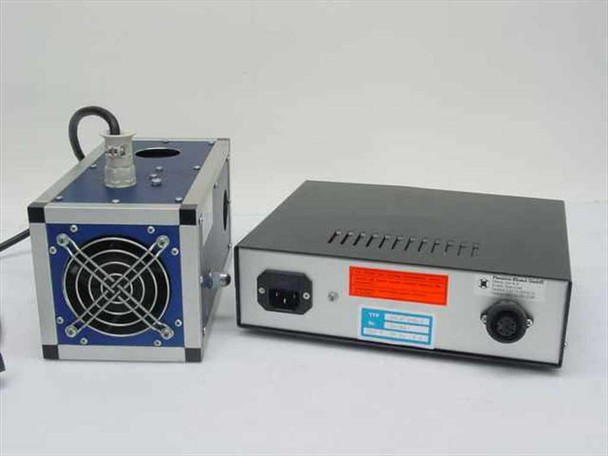

The Panacol-Elosol UV-P 250-S is a high-intensity UV point source system built around a 250W metal halide lamp. It delivers focused UV-A irradiation directly onto small target areas without requiring a fiber optic light guide, making it suited for direct-spot UV curing, adhesive bonding, and photochemical exposure on the bench or on a production line. The system ships as two units: a compact fan-cooled lamp head and a separate power supply connected by a multi-pin circular cable.

Specifications & What's Included

• Model: UV-P 250-S (Panacol-Elosol)
• Lamp type: 250W metal halide (metal halogen)
• UV-A intensity: approximately 1,200 mW/cm² at optimum focal distance of 12mm
• Spot illumination diameter: up to 30mm (varies with irradiation distance)
• Shutter system: timer-controlled pneumatic shutter for precise, repeatable UV dosage
• Hour counter: elapsed-hour display for lamp replacement scheduling
• Thermal protection: auto-reset thermal cutout
• Cooling: internal fan-cooled lamp head
• Operation: foot switch or hand switch compatible

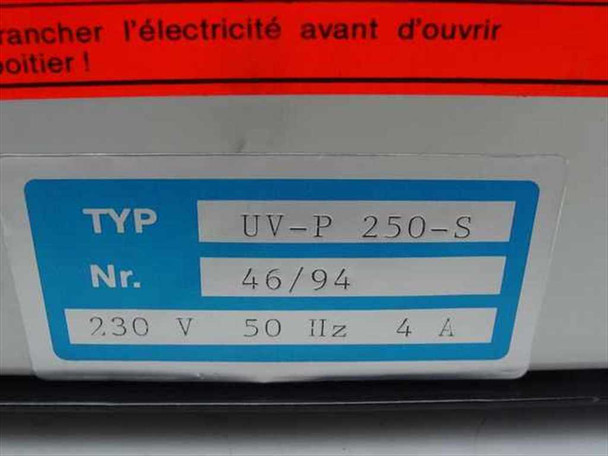

• Input power: 230V AC, 50Hz, 4A (per rating label)
• Includes: lamp head unit and separate power supply with interconnecting multi-pin cable
• Form factor: benchtop or production-line mountable

Applications

UV point source systems like the UV-P 250-S are used wherever a tightly focused, high-intensity UV spot is needed without the losses associated with fiber optic light guides. Common applications include UV-curable adhesive bonding and spot curing in electronics assembly and optics manufacturing, photolithography and UV exposure for small substrates, UV coating activation, and fluorescence inspection. The direct-irradiation design makes this type of system especially practical for curing adhesives in tight assemblies — for example, bonding lenses into housings, sealing sensors, or fixing components that are inaccessible with a broad-flood UV source. The pneumatic shutter and hour counter are production-oriented features, allowing repeatable dosage control and predictable lamp-change intervals in a manufacturing environment. This unit operates on 230V/50Hz, which is the European standard, and is compatible with both benchtop lab setups and inline production configurations.
