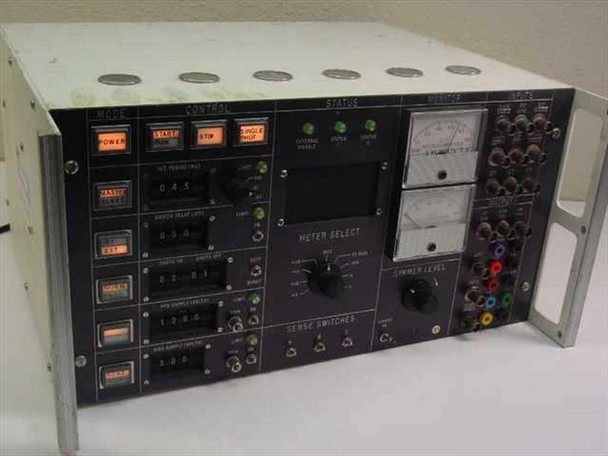

The Pamoto 4600X is a rackmount/benchtop power supply control unit designed for scientific and laboratory instrument applications. The front panel features Mode and Control sections with Power, Start/Run, Stop, and Single Shot buttons, along with numeric displays for INT Period, Switch Delay, PTN Supply (1200V), and Bias Supply (300V). A Meter Select rotary knob switches between monitored parameters, two analog meters display DC microamperes and DC milliamperes, and a Simmer Level control and Sense Switches are also present. The right side provides multiple BNC and binding post Inputs and Outputs. The rear panel has an AC power inlet with selectable voltage taps (A, B, C) and fuse positions, plus a forced-air cooling fan.

Specifications & What's Included

• Model: Pamoto 4600X
• Power Rating: 200W
• Form Factor: Rackmount / Benchtop
• PTN Supply Voltage: 1200V (front panel display)
• Bias Supply Voltage: 300V (front panel display)
• Monitors: Dual analog meters – DC Microammeres, DC Milliammeter
• Controls: Meter Select, Simmer Level, Sense Switches A/B/C, Mode/Control buttons
• I/O: Multiple BNC connectors and binding posts (Inputs and Outputs sections)
• Rear: AC inlet, voltage tap terminals, 2A/8A fuse positions, cooling fan
• Sold AS-IS — no accessories included

Applications

Power supply control units of this type are used in scientific instrumentation, pulsed lamp systems, and laboratory research equipment requiring controlled high-voltage bias and PTN supplies.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
