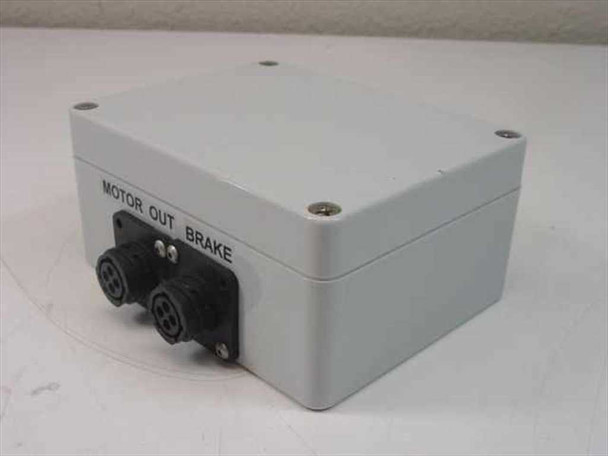

  • Palomar Products Microweld Head Control Relay Unit – front/top view showing Motor Out and Brake circular connectors on face panel
  • Palomar Products Microweld Head Control Relay Unit – side view showing Motor In J201 and Motor Off Switch circular connectors

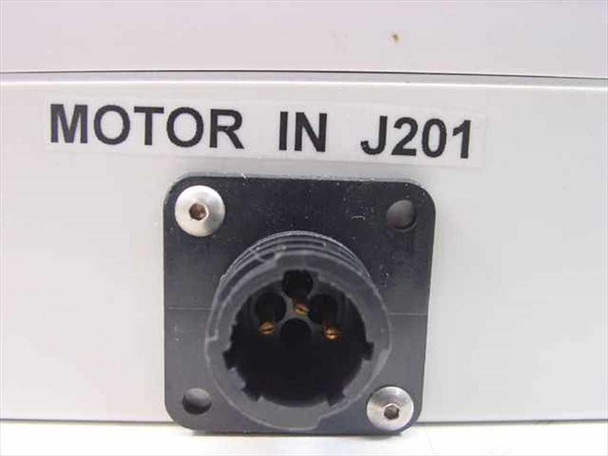

  • Palomar Products Microweld Control Relay Unit – close-up of Motor In J201 3-pin circular connector port

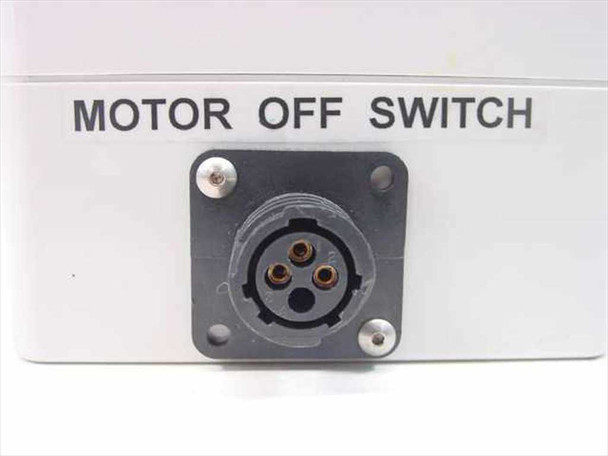

  • Palomar Products Microweld Control Relay Unit – close-up of Motor Off Switch 4-pin circular connector port
  • Palomar Products Microweld Control Relay Unit – close-up of Motor Out and Brake dual 4-pin circular connector ports
$125.00
Was: $250.00
Current Stock: 5

Sold Out

Description

Palomar Products Microweld Head Control Relay Unit Motor Out Brake J201 w/ Cables

Control relay unit for Palomar Microweld systems. Manages motor and brake functions for microweld head operation through multiple circular multi-pin connectors.

Specifications & What's Included

  • Model: Microweld Head Control Relay Unit
  • Motor In Port: J201 – 3-pin circular connector
  • Motor Out / Brake Ports: Two 4-pin circular connectors
  • Motor Off Switch Port: 4-pin circular connector
  • Enclosure: Gray plastic with corner screws
  • Cables: Some available – contact for details
  • Manufactured in United States

Applications

This relay unit controls motor and brake operation in Palomar Microweld systems. It routes power and control signals between the microweld head motor, brake, and control interface. Commonly used in industrial welding equipment where precise head positioning and brake engagement are required. Compatible with Palomar Microweld product line systems.

Condition: Used
This Palomar Products Microweld Head Control Relay Unit has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. The gray plastic enclosure is clean and intact with no cracks or significant damage. The circular connectors — Motor Out, Brake, Motor In J201, and Motor Off Switch — are all present and appear in good shape. Some cables can be included; please contact us to discuss what is available before purchasing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
