Description

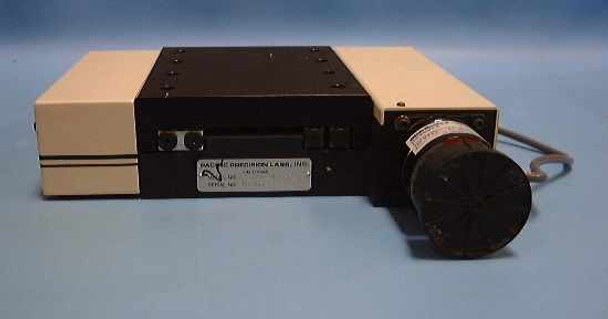

Pacific Precision ST-SLO4-R-PO25 Linear Slide Heidenhain LID 311/10 Encoder 4in
The Pacific Precision Laboratories (PPL) ST-SLO4-R-PO25 is a motorized closed-loop linear slide with approximately 4 inches of travel. This unit is configured without a lead screw and is fitted with a Heidenhain LID 311/10 linear encoder reading a Heidenhain MSA 6706 glass scale for precision position feedback. It was deinstalled from a custom-built semiconductor inspection system and is being sold as-is for parts or repair.
Specifications & What's Included
- Make: Pacific Precision Laboratories (PPL), California
- Model: ST-SLO4-R-PO25 (also referenced as JMAR)
- Travel: approximately 4 inches (~100 mm)
- Drive type: motorized, no lead screw
- Loop type: closed loop
- Encoder: Heidenhain LID 311/10 (Id.Nr. 245 630 02)
- Glass scale: Heidenhain MSA 6706, ML 170 mm, Interval 200M
- External filters: included
- Connectors: DB15 and DB9 (visible on unit)
- Internal linear rail and belt drive mechanism visible in photos
- Rotary motor/encoder assembly attached to drive end
- Single axis only — photos show XY configuration for reference; this listing covers one slide
Applications
Motorized closed-loop linear slides of this type are precision positioning components used in semiconductor inspection systems, wafer handling equipment, automated optical inspection (AOI) platforms, and research instrumentation requiring repeatable, encoder-verified linear motion. Pacific Precision Laboratories produced a range of precision motion stages widely used in semiconductor fabrication and inspection environments from the 1980s through the 2000s. The Heidenhain LID 311/10 is a compact incremental linear encoder designed for integration into motorized stages, providing high-resolution position feedback via a glass scale — a combination common in applications demanding sub-micron repeatability. Two slides of this type can be stacked to form an XY positioning table, as shown in the reference photos.
This Pacific Precision ST-SLO4-R-PO25 closed-loop linear slide is being sold AS-IS for parts or repair. It was deinstalled from a custom-built semiconductor inspection system. No functionality is guaranteed, and it has not been verified operational. The photos show two slides configured as an XY table for reference — this listing is for one slide only. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Pacific Precision Laboratories |
Model: |
ST-SLO4-R-PO25 |
MPN: |
ST-SLO4-R-PO25 |
Secondary Model: |
JMAR |
Type: |
Motorized Closed-Loop Linear Slide |
SKU: |
11668 |
Travel Range: |
4 inches (approx. 100 mm) |
Drive Type: |
Motorized (no lead screw) |
Loop Type: |
Closed Loop |
Encoder Brand: |
Heidenhain |
Encoder Model: |
LID 311/10 |
Encoder Part Number: |
Id.Nr. 245 630 02 |
Glass Scale Model: |
MSA 6706 |
Glass Scale Length: |
ML 170 mm |
Glass Scale Interval: |
200M |
External Filters: |
Yes — included |
Connector Types: |
DB15, DB9 |
Country/Region of Manufacture: |
Germany (Heidenhain encoder); USA (slide assembly) |
Application: |
Semiconductor inspection, precision positioning, XY stage |
Compatible Configuration: |
Can be paired as XY table (sold as single axis) |
Seller Notes: |
Single slide only — no lead screw. Includes Heidenhain LID 311/10 encoder, MSA 6706 glass scale, and external filters. |
Condition Notes: |
Pacific Precision ST-SLO4-R-PO25 linear slide sold AS-IS for parts or repair. Deinstalled from a semiconductor inspection system. No functionality guaranteed. Single slide only — not tested. Please review photos and contact us with questions. |
