OSM RF Load Termination N-Male Connector 50 Ohm Coaxial Dummy Load 3001 6100-00

(No reviews yet) Write a Review
SKU:
33248
MPN:
3001 6100 00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

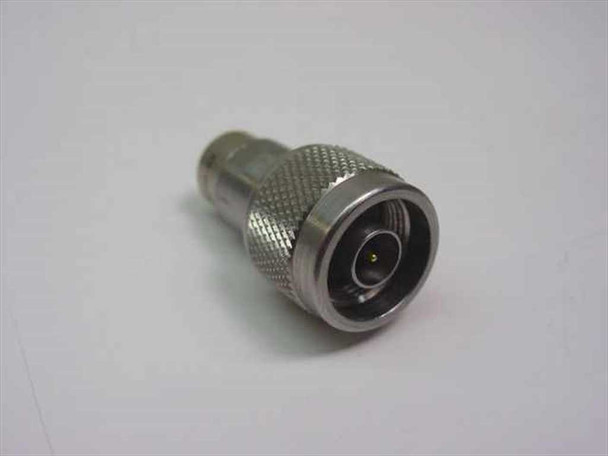

  • OSM RF load termination 3001 6100-00 — front view showing N-Male connector with gold center pin and knurled body
  • OSM RF load termination 3001 6100-00 — rear/bottom view showing cylindrical termination cap end of the component
  • OSM RF load termination 3001 6100-00 — end-on view of N-Male connector face showing center pin and outer thread
  • OSM RF load termination 3001 6100-00 — label view on termination cap showing part number 3001 6100-00, OSM, and FSC 16179
$12.00
Was: $25.00
Current Stock: 1

Sold Out

Description

OSM RF Load Termination N-Male Connector 50 Ohm Coaxial Dummy Load 3001 6100-00

RF coaxial dummy load termination for N-Male connectors. Used to terminate unused ports in RF and microwave test systems, preventing signal reflections and maintaining system impedance matching at 50 Ohms.

Specifications & What's Included

  • Brand: OSM
  • Model: 3001 6100-00
  • Connector Type: N-Male
  • Impedance: 50 Ohm
  • Form Factor: Inline coaxial component
  • Unit only — no accessories included

Applications

RF dummy loads are standard test equipment accessories used in telecommunications, RF engineering, and microwave testing environments. Commonly found in laboratory setups, production testing stations, and field service kits. This load terminates open N-Male ports on test equipment, network analyzers, signal generators, and transmission line systems to reduce measurement errors and system reflections.

Condition: Used
This OSM RF Load Termination with N-Male connector (P/N 3001 6100-00) has been inspected and appears to be in good used condition. The knurled body and N-Male connector show minor surface wear consistent with normal handling, but there is no damage to the connector threads or center pin. The termination cap label is intact and legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
OSM
Model:
3001 6100-00
MPN:
3001 6100-00
Type:
RF Coaxial Load / Termination
SKU:
33248
Connector Type:
N-Male (N-M)
Impedance:
50 Ohm
Form Factor:
Inline / Inline Coaxial Component
FSC Code:
16179
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only — no additional accessories included.
Compatible With:
N-Male coaxial RF systems and test setups
Condition Notes:
OSM RF Load Termination N-Male 3001 6100-00 has been inspected and is in good used condition. Minor surface wear on body; connector threads and center pin are undamaged. Label intact.
