Ortronics

Ortronics OR-809004910 48-Port Voice Data Modular Quadframe 19in Patch Panel

(No reviews yet) Write a Review
SKU:
33695
MPN:
OR-809004910
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

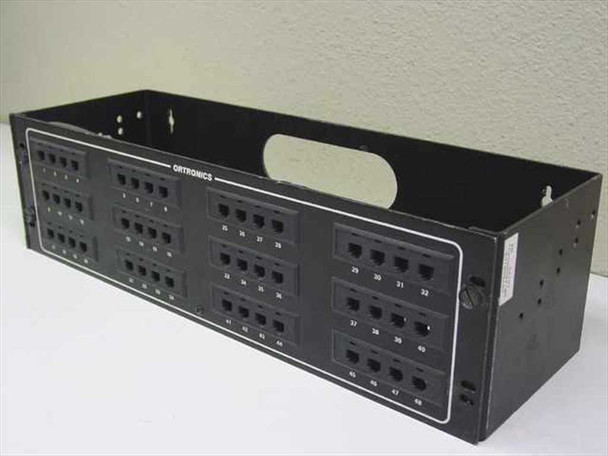

  • Ortronics OR-809004910 48-port modular patch panel – angled front view showing port face and black metal chassis
  • Ortronics OR-809004910 patch panel – rear/interior view showing internal wiring harness and cable routing
  • Ortronics brand name detail on patch panel front face – white lettering on black panel
  • Ortronics OR-809004910 patch panel – close-up of port modules 1-4, 9-12, and 17-20 showing modular RJ jacks
  • Ortronics OR-809004910 patch panel – close-up of port modules 29-32, 37-40, and 45-48 showing modular RJ jacks

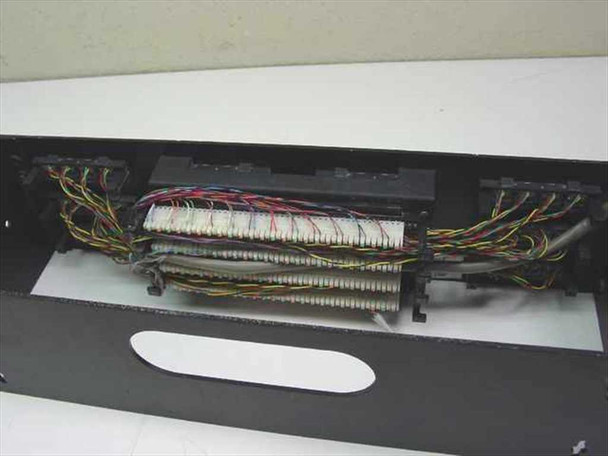

  • Ortronics OR-809004910 patch panel – interior top-down view showing punch-down block and multi-colored wiring

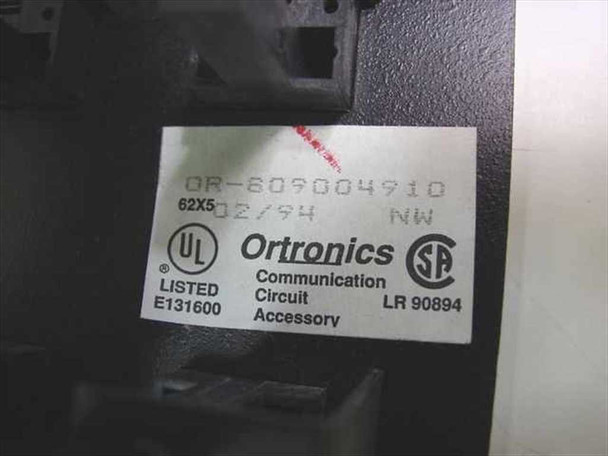

  • Ortronics OR-809004910 product label showing model number, date code 02/94, UL Listed E131600, and CSA LR 90894

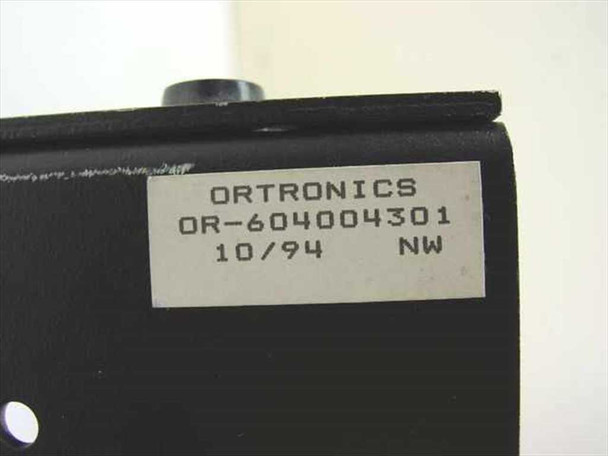

  • Ortronics OR-604004301 hinged wall mount bracket – label showing model OR-604004301, date code 10/94

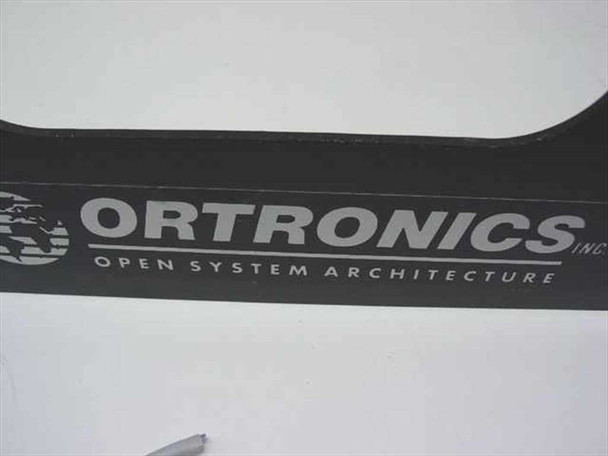

  • Ortronics Open System Architecture logo detail on OR-604004301 wall mount bracket
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Ortronics OR-809004910 48-Port Voice Data Modular Quadframe 19in Patch Panel

A 19-inch rackmount patch panel designed for structured voice and data cabling distribution. This modular quadframe manages 48 RJ-style ports for telecommunications and network infrastructure installations.

Specifications & What's Included

  • Model: OR-809004910
  • 48 modular RJ-style ports
  • 19" rackmount form factor
  • UL Listed (E131600) and CSA certified (LR 90894)
  • Manufactured: February 1994
  • Includes OR-604004301 hinged wall mount bracket (5.25H x 19W x 6D inches)

Applications

Voice and data patch panels like this model were standard in telecommunications closets and server rooms for organizing and routing copper-based telephone and network cabling. Commonly used in office buildings, data centers, and commercial installations during the 1990s and 2000s. Compatible with standard RJ-11 and RJ-45 connectors for analog phone lines and early Ethernet networks. Typically mounted in 19-inch equipment racks alongside telephone switches, PBX systems, and network hubs.

Condition: Used
This Ortronics OR-809004910 48-Port Voice/Data Modular Quadframe Patch Panel has been inspected and is in good used condition. It was pulled from a working environment where it was in use. The black metal chassis shows normal scuffs and handling marks consistent with rack installation and removal. The interior wiring harness is intact and visible through the open rear. The included OR-604004301 hinged wall mount bracket is also in good used condition with typical shelf wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Ortronics
Model:
OR-809004910
MPN:
OR-809004910
Secondary Model:
OR-604004301
Type:
Modular Voice/Data Patch Panel
SKU:
33695
Number of Ports:
48
Form Factor:
Rackmount, 19"
Rack Size:
19" wide
Connector Type:
Modular (RJ-style)
Application:
Voice and Data structured wiring distribution
Certifications:
UL Listed (E131600), CSA (LR 90894)
Manufacture Date:
02/94
Color:
Black
Included Accessories:
Ortronics OR-604004301 Hinged Wall Mount Bracket
Bracket Dimensions:
5.25H x 19W x 6D inches
Seller Notes:
Includes Ortronics OR-604004301 hinged wall mount bracket (5.25H x 19W x 6D, black).
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Condition Notes:
Ortronics OR-809004910 48-Port Patch Panel in good used condition. Pulled from a working environment. Normal cosmetic wear on chassis. Includes OR-604004301 hinged wall mount bracket. Inspected and intact.
View AllClose

Related Products

Related Products

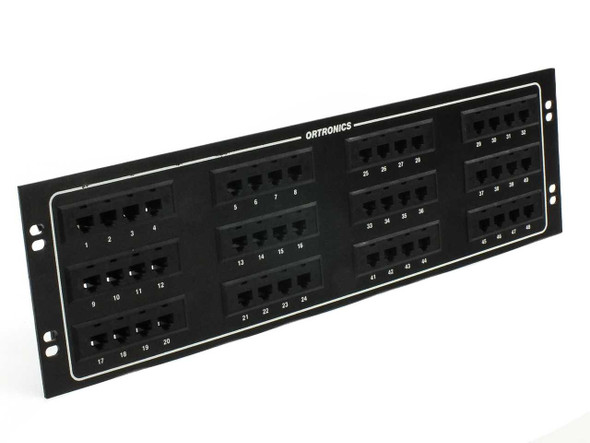

Ortronics OR-808044023 48-port telco patch panel — angled front view showing all 48 numbered RJ-11 ports across black 3U faceplate Ortronics OR-808044023 label closeup showing part number, date code 22/98, UL Listed E131600, and CSA LR 90894 certifications
Add to Cart
Quick view

Ortronics OR-808044023 48-Port Modular Telco Patch Panel 4C/8P RJ-11 3U

Ortronics Inc

$45.00
Was: $90.00
Ortronics OR-808044023 48-Port Modular Telco Patch Panel 4C/8P RJ-11 3UThe Ortronics OR-808044023 is a 48-port modular Telco patch panel designed for voice and telephone wiring in structured cabling...
11512
SKU:
11512
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Ortronics
Model:
OR-808044023
MPN:
OR-808044023
Type:
Modular Telco Patch Panel
SKU:
11512
Number of Ports:
48
Connector Type:
4C/8P RJ-11
Wired Pins:
1, 2, 3, 6
Form Factor:
Rackmount, 3U
Panel Dimensions:
5.25" H x 19" W
Application:
Voice / Telephone / Telco Wiring
Certifications:
UL Listed (E131600), CSA (LR 90894)
Date Code:
22/98 (Week 22, 1998)
Seller Notes:
Panel only; wired and pre-terminated on rear. No additional accessories included.
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Condition Notes:
Ortronics OR-808044023 48-Port Telco Patch Panel. Used, inspected, in good condition. Front ports intact, rear wiring harness fully terminated. Minor surface scuffing from rack use. No original packaging.

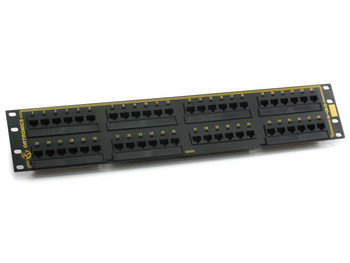

Ortronics OR-851004038 48-port Cat5e patch panel front view with wire management bar and bagged accessories including designation strips Ortronics OR-851004038 48-port Cat5e T568B patch panel front panel angled view showing all 48 RJ45 ports in four port groups
