Origen IGEN M-Series M8 Toxin Analyzer M8-1003-0950 100-120/200-230V w/ Manual

Origen IGEN M-Series M8 Toxin Analyzer M8-1003-0950 100-120/200-230V w/ Manual

The Origen IGEN M-Series M8 is a benchtop electrochemiluminescence (ECL) detection instrument developed by IGEN International for rapid analysis of food-borne, water-borne, and environmental toxins. It uses ECL — a technology in which labeled reagents emit light when electrically stimulated at an electrode surface — to detect target analytes at very low concentrations. The M8 processes up to 8 samples per run and is controlled through an integrated color LCD touchscreen and a built-in QWERTY keyboard running proprietary software. This unit (MPN M8-1003-0950, Rev D) is sold as-is for parts or repair and has not been tested at our facility.

Specifications & What's Included

• Manufacturer: IGEN International, Inc. (Gaithersburg, MD) — marketed under the Origen brand
• Model: M-Series M8
• Part Number / MPN: M8-1003-0950
• Revision: D

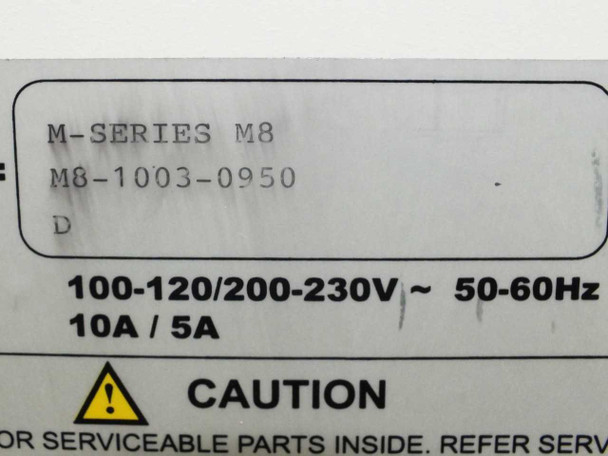

• Power Input: 100-120V / 200-230V AC, 50-60Hz (dual voltage)
• Current: 10A (at 100-120V) / 5A (at 200-230V)
• Display: Integrated color LCD touchscreen (front-facing)
• Keyboard: Integrated compact QWERTY keyboard (front housing)
• Storage: Internal 3.5-inch floppy disk drive
• Laser: Class 1 Laser Product per IEC 60825-1: 1993+A1+A2; Class 2 radiation when open — do not stare into beam
• Reagent Connections: Reagent 1, Reagent 2, Reagent 3, and Waste ports with level-detect (DB15 connector)

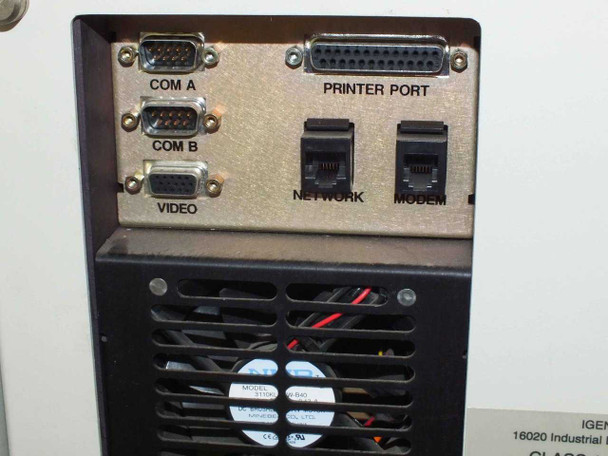

• Rear I/O: COM A (DB9), COM B (DB9), Video (DB9), Printer Port (DB25), Network (RJ45), Modem (RJ11)

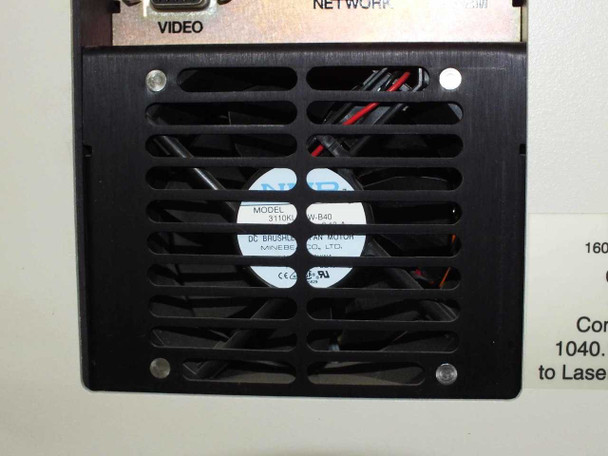

• Cooling: NMB brushless DC fan module (rear exhaust)
• Form Factor: Benchtop instrument; mounted on rolling wire cart (included)
• Compatible Reagents: Origen ORI-CLEAN Plus Solution, Origen ORI-GLO Plus Solution (M-Series)

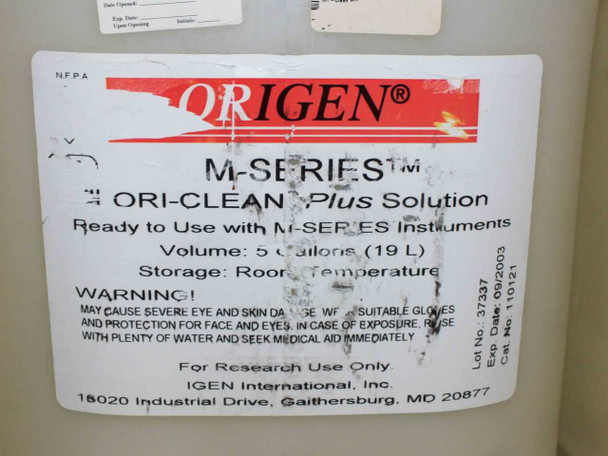

• Included: Two 5-gallon Origen M-Series reagent containers (ORI-CLEAN Plus and ORI-GLO Plus), one Reagent 3 container
• Included: ORIGEN Technology Instrumentation Training Material binder
• Included: M-Series M8 Analyzer Operation Manual (for Software Version 1.9)
• Included: M-Series M8/384 Analyzers Operation Manual (for Software Version 1.9)
• Compatible Models (per manuals): M-Series M8 and M-Series M8/384

Applications
