Description
Oriental Motor FBLD40C Vexta Brushless DC Motor Driver AC200V±10% 50/60Hz 0.7A
The Oriental Motor FBLD40C is a compact brushless DC motor driver from Oriental Motor's Vexta series, designed to drive and control Vexta-series brushless DC motors. It accepts an AC 200V input and conditions power for smooth, electronically commutated motor operation — eliminating the brushes and commutator rings of traditional DC motors while providing responsive speed control via an onboard potentiometer and external I/O signals.
Specifications & What's Included
- Brand: Oriental Motor Co., Ltd. (Vexta series)
- Model: FBLD40C
- Type: Brushless DC Motor Driver
- Input Voltage: AC 200V ±10%
- Input Frequency: 50/60 Hz
- Input Current: 0.7A
- Country of Manufacture: Japan
- Motor Connector: 12-pin connector (top panel)
- AC Input Terminals: Screw terminal block — F3, NC, N, L
- I/O Interface: Terminal block strip for external control signals

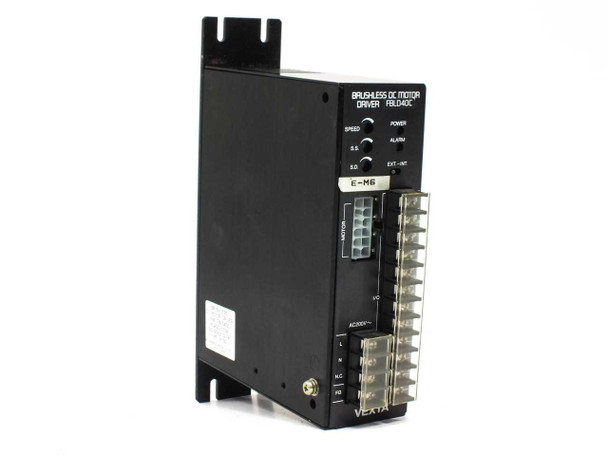

- LED Indicators: POWER, ALARM, EXT-INT, S.S., SPEED
- Speed Control: Onboard SPEED potentiometer; external/internal (EXT-INT) mode select
- Form Factor: Panel/rack-mount with integrated mounting ears

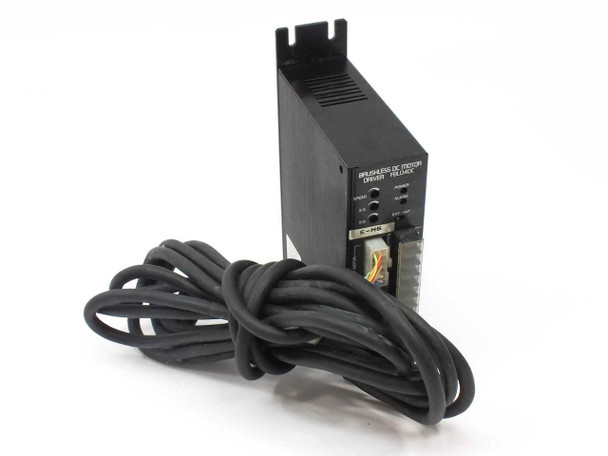

- Includes: Motor cable (as shown in photos)
Applications
The FBLD40C is designed to pair with Oriental Motor's Vexta-series brushless DC motors, providing the drive electronics for speed and direction control. Brushless DC motor systems of this type are widely used in automation and light industrial applications — including conveyor systems, packaging machinery, lab automation, semiconductor handling equipment, and any application requiring smooth, quiet, and low-maintenance motorized motion. The Vexta brushless DC line was a popular choice for OEM machine builders throughout the 1990s and 2000s, and replacement drivers like the FBLD40C remain in demand for servicing and maintaining equipment still running these motor systems.
This Oriental Motor FBLD40C Vexta Brushless DC Motor Driver has been inspected and is in good used condition. The unit shows normal wear consistent with prior use. The motor cable shown in the photos is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Oriental Motor |
Model: |
FBLD40C |
MPN: |
FBLD40C |
Type: |
Brushless DC Motor Driver |
Series: |
Vexta |
SKU: |
48353 |
Input Voltage: |
AC 200V ±10% |
Frequency: |
50/60 Hz |
Input Current: |
0.7A |
Motor Type: |
Brushless DC |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Panel/Rack Mount |
Connector - Motor: |
12-pin connector |
I/O Interface: |
Terminal block I/O strip |
AC Input Terminals: |
Screw terminal block (F3, NC, N, L) |
LED Indicators: |
POWER, ALARM, EXT-INT, S.S., SPEED |
Speed Control: |
Onboard potentiometer (SPEED) |
Seller Notes: |
Includes motor cable as shown in photos. |
Condition Notes: |
This Oriental Motor FBLD40C Vexta Brushless DC Motor Driver has been inspected and is in good used condition. Includes the motor cable. Please view our photos and contact us with any questions. |
