Description
Oriental Motor VEXTA FBLM5120C-GF 120W Brushless DC Motor GF5G15 15:1 Gear
The Oriental Motor VEXTA FBLM5120C-GF is a 120-watt brushless DC motor paired with the GF5G15 15:1 gear head, forming a compact inline gear motor assembly. The brushless DC design eliminates brushes and commutators for lower maintenance and longer service life compared to conventional brushed motors. It runs at a base speed of 3000 RPM at the motor shaft, reduced to approximately 200 RPM at the output shaft through the 15:1 gear head.
Specifications & What's Included
- Motor Model: FBLM5120C-GF

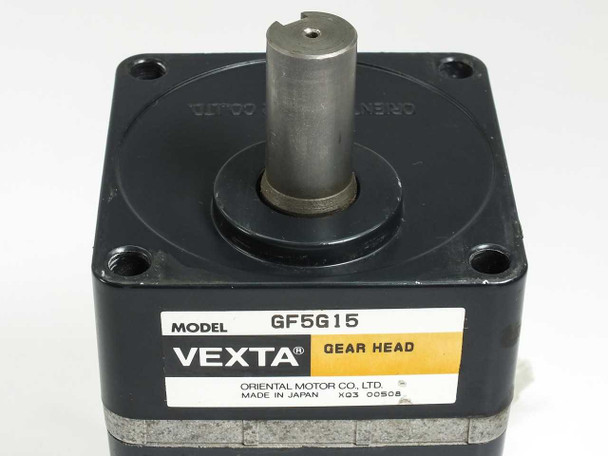

- Gear Head Model: GF5G15
- Product Series: VEXTA (Oriental Motor Co., Ltd.)
- Motor Type: Brushless DC
- Power Rating: 120W
- Base Speed: 3000 RPM (motor shaft)
- Gear Ratio: 15:1
- Output Shaft Diameter: 18 mm
- Output Shaft Length: 33 mm

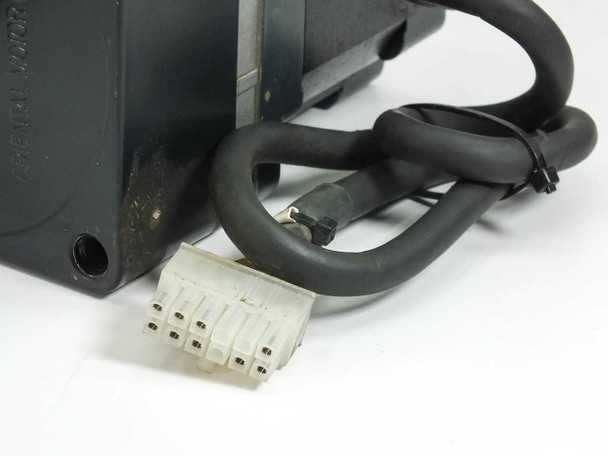

- Connector: Multi-pin inline connector with pigtail leads (requires separate VEXTA brushless driver)
- Country of Manufacture: Japan
- Includes: Motor and gear head assembly only — no driver, controller, or mounting hardware
Applications
VEXTA brushless DC gear motors from Oriental Motor are widely used in industrial automation, machine tools, conveyor systems, semiconductor handling equipment, and precision positioning applications. The FBLM series was designed to work with Oriental Motor's dedicated brushless driver units, which provide variable speed control and electronic commutation. The 15:1 gear head trades speed for torque, making this assembly well suited to applications that need moderate output speed with increased torque relative to the bare motor. These motors are common in Japanese and international factory automation equipment from the late 1990s through the 2000s, and Oriental Motor continues to produce compatible driver and motor systems in the VEXTA line today. Replacement and spare-unit demand remains strong for facilities maintaining machines built around this platform.
This Oriental Motor VEXTA FBLM5120C-GF 120W Brushless DC Motor with GF5G15 15:1 gear head has been pulled from a working environment and is in good used condition. The motor and gear head show normal wear consistent with prior industrial use — the housing has some light surface scuffing and the mounting face shows minor marks, but there is no visible cracking or damage. The output shaft and gear head appear clean and intact. The multi-pin connector and cable leads are present and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Oriental Motor |
Model: |
FBLM5120C-GF |
Secondary Model: |
GF5G15 |
MPN: |
FBLM5120C-GF |
SKU: |
48584 |
Type: |
Brushless DC Motor with Gear Head |
Product Line / Series: |
VEXTA |
Power Rating: |
120W |
Speed (RPM): |
3000 RPM |
Gear Ratio: |
15:1 |
Gear Head Model: |
GF5G15 |
Output Shaft Diameter: |
18 mm |
Output Shaft Length: |
33 mm |
Motor Type: |
Brushless DC |
Connector Type: |
Multi-pin inline connector (pigtail leads) |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Square-body inline gear motor |
Seller Notes: |
Motor and gear head only — no driver, controller, or mounting hardware included. |
Condition Notes: |
This Oriental Motor VEXTA FBLM5120C-GF 120W Brushless DC Motor with GF5G15 15:1 gear head was pulled from a working environment. Shows normal wear; housing has light scuffing. Output shaft and connector intact. Please contact us with any questions. |
