Opto 22 G4IDC5D DC Input Module 2.5-28 VDC 5V Logic G4 Digital I/O Module

Opto 22 G4IDC5D DC Input Module 2.5-28 VDC 5V Logic G4 Digital I/O Module

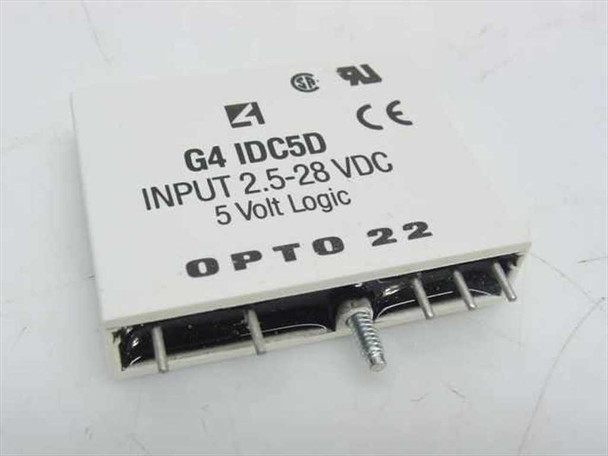

DC digital input module for the Opto 22 G4 I/O system. Accepts DC input signals between 2.5 and 28 VDC and converts them to 5V logic levels for use in industrial control and monitoring applications.

Specifications & What's Included

• Model: G4IDC5D
• Input Voltage Range: 2.5–28 VDC
• Logic Voltage: 5 VDC
• Compatible with Opto 22 G4 I/O racks and systems
• Certifications: UL, CE, CSA
• Manufactured in the United States

Applications

This module type is used in industrial automation, process control, and building management systems to monitor discrete DC input signals from sensors, switches, and field devices. Opto 22 G4 modules integrate into distributed I/O architectures for remote data acquisition and control. The G4IDC5D fits into G4 rack systems and is commonly deployed in manufacturing, utilities, and infrastructure monitoring where flexible voltage input sensing is required.
