Omron E3X-A11 Fiber-Optic Photoelectric Sensor NPN 10-30VDC Red LED

Omron E3X-A11 Fiber-Optic Photoelectric Sensor NPN 10-30VDC Red LED

The Omron E3X-A11 is a compact fiber-optic photoelectric sensor amplifier in the E3X series, designed for precise object detection in industrial automation environments. It accepts a separate fiber-optic head (included) to detect objects via reflected or transmitted light, and outputs an NPN transistor signal to PLCs, motion controllers, and other automation equipment. The unit is manufactured in Japan and carries CE certification.

Specifications & What's Included

• Model: Omron E3X-A11
• Supply Voltage: 10–30VDC
• Output Type: NPN open-collector
• Light Source: Red LED
• Sensing Method: Fiber-optic (separate fiber head)

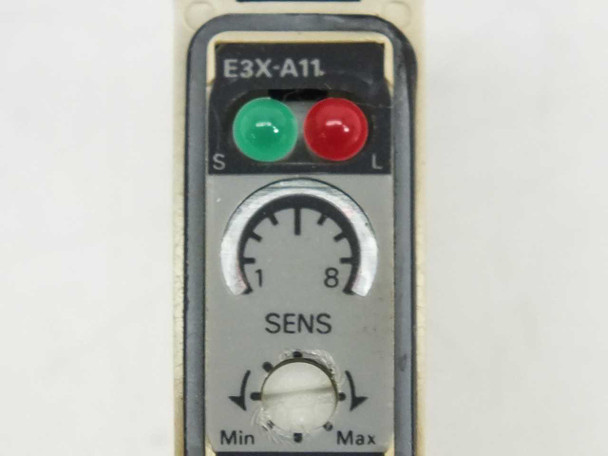

• Sensitivity: Rotary dial, 1–8 scale, Min to Max adjustment
• Operation Mode: L-ON / D-ON selectable via slide switch

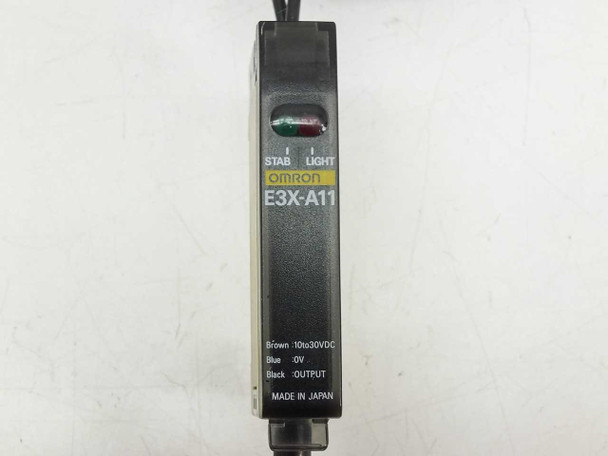

• Indicators: Green STAB LED (stability), Red LIGHT LED (received light level)
• Wiring: Brown = 10–30VDC, Blue = 0V, Black = Output (NPN)

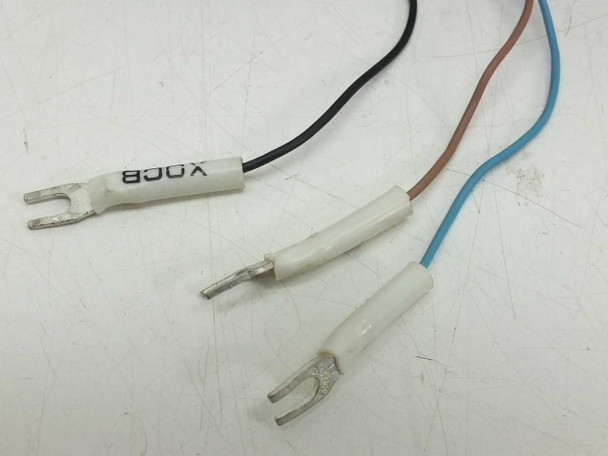

• Termination: Fork spade terminals on pigtail leads
• Certifications: CE
• Country of Manufacture: Japan
• Includes: E3X-A11 amplifier body, fiber-optic head with threaded metal tip and hex nut, and pigtail leads with spade terminals

Applications

The Omron E3X series fiber-optic sensor amplifiers are widely used in factory automation for detecting small parts, verifying component presence, and controlling positioning on assembly lines and conveyor systems. Because the sensing head is a passive fiber-optic element rather than an electronic one, E3X amplifiers can place the detection point in tight spaces, high-temperature areas, or environments with electrical noise or limited physical access — situations where a self-contained sensor body cannot fit. The NPN output is compatible with the vast majority of Japanese and Asian-market PLCs and automation controllers, including Omron's own CP, CJ, and CS series. The L-ON/D-ON mode switch allows the output logic to be configured for either light-on or dark-on detection without rewiring, making it flexible across a wide range of sensing tasks including color mark detection, label sensing, and transparent object detection.
